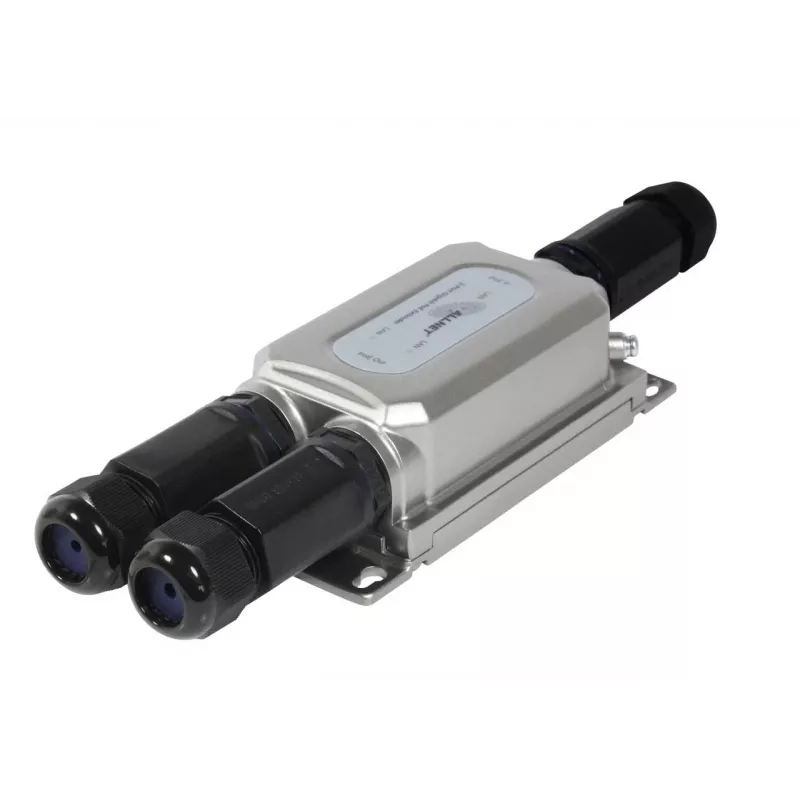

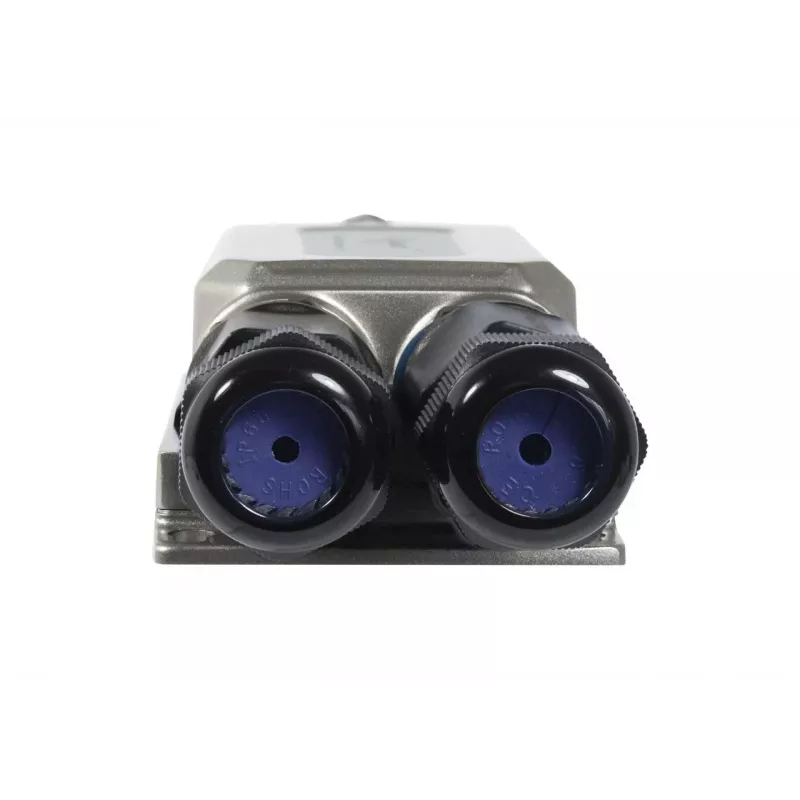

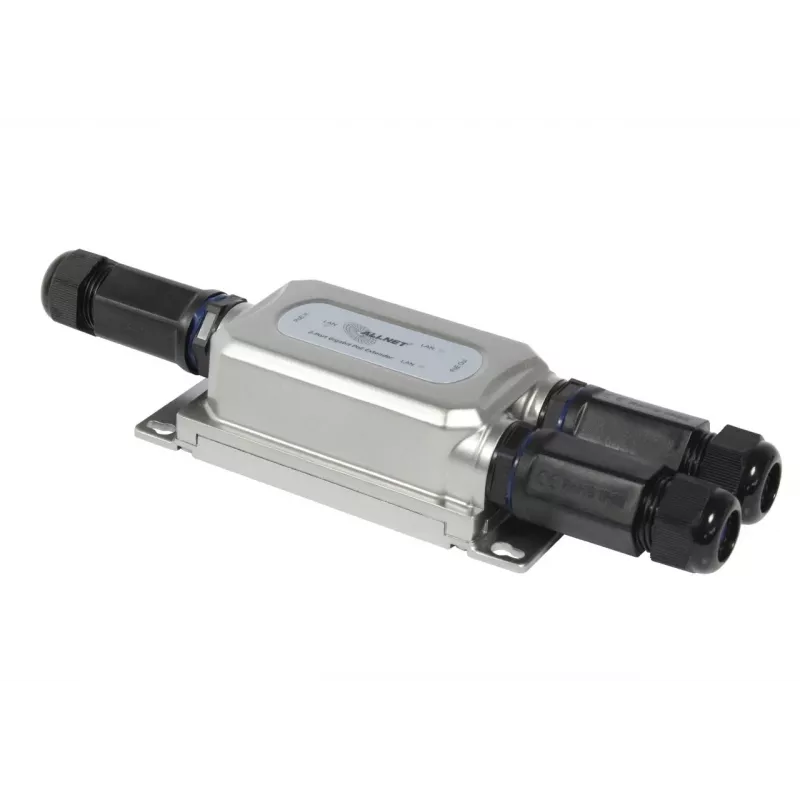

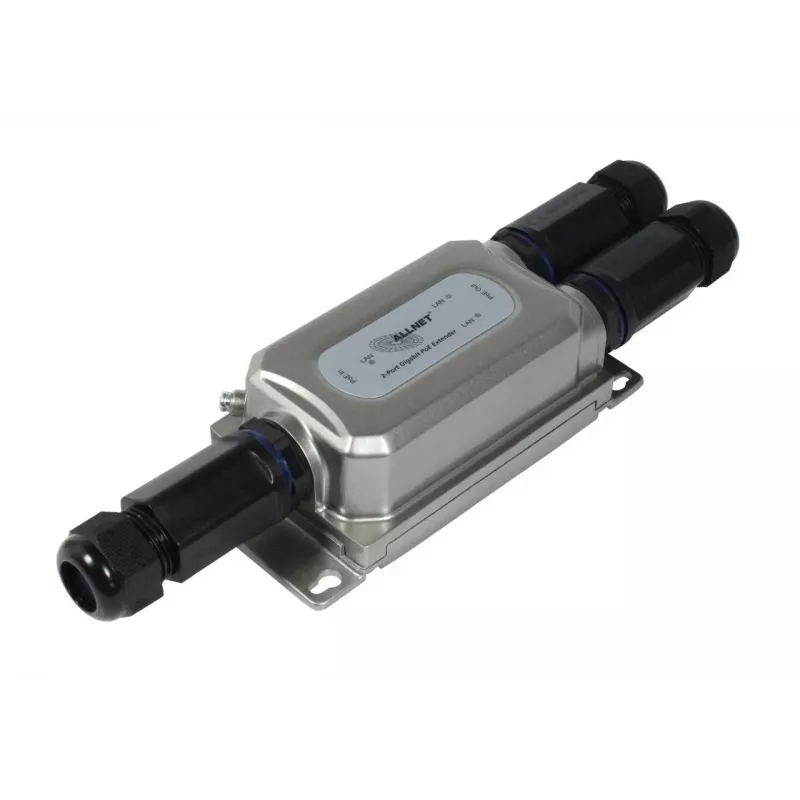

ALLNET Repetidor extensor PoE Outdoor IP67 IEEE802.3BT IN - AT Out, ALL-PR2013Ov2-30W

This outdoor PoE extender/repeater extends Power over Ethernet and Gigabit data up to 200 meters total, accepting up to 90W input via IEEE 802.3bt and delivering up to 30W output via IEEE 802.3at. Its IP67-rated metal housing ensures reliable operation in harsh environments.

Advantages

Extends PoE and data beyond the standard 100-meter limit without additional power. Plug-and-play design requires no configuration. Robust IP67 aluminum enclosure withstands dust, water, and extreme temperatures from -40°C to 75°C.

Suitable for

• Outdoor IP cameras and wireless access points
• Remote sensors and IoT devices
• Industrial networks requiring long-distance PoE

Key specifications

• PoE input: IEEE 802.3bt (Type 4, 4PPoE), up to 90W
• PoE output: IEEE 802.3at (Type 2, PoE+), up to 30W
• Data rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Ports: 1x RJ45 PoE In, 1x RJ45 PoE Out
• Extension: 100m input + 100m output = 200m total
• IP rating: IP67 (dust-tight, waterproof up to 1m for 30 min)
• Operating temperature: -40°C to 75°C
• Housing: metal (aluminum), wall or pole mountable
• LED indicators: power, PoE status
• Protection: over-current, over-voltage, short-circuit

Recommendations

Ideal for extending PoE networks in outdoor or industrial settings where reliability and distance are critical.
