ALLNET Rock Pi 4/E/3A eMMC 5.1 Módulo 32GB

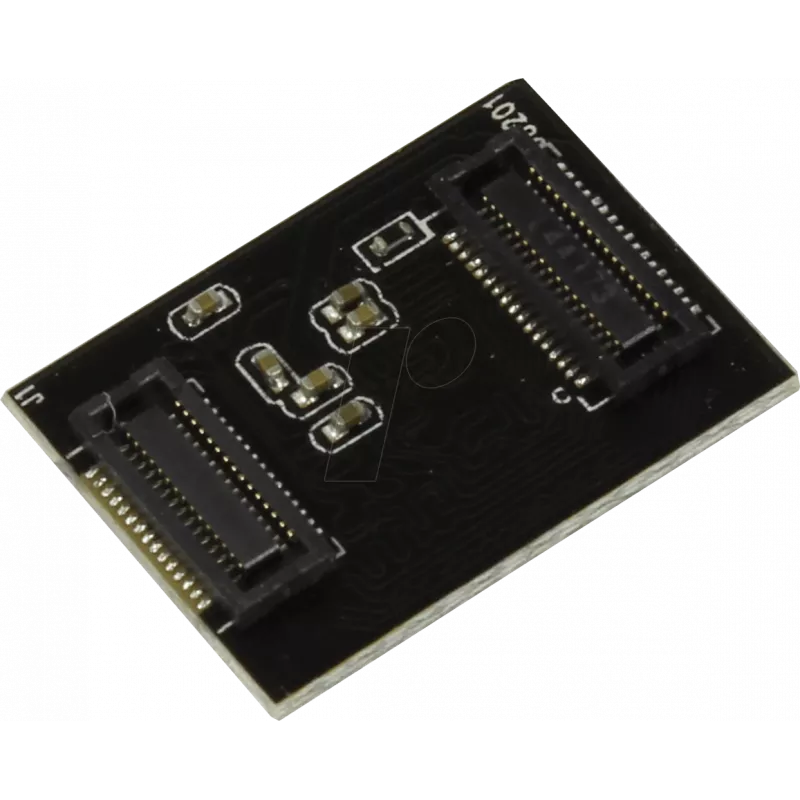

The ALLNET Rock Pi 4/E/3A eMMC 5.1 32GB Module is a high-performance embedded storage solution designed for Rock Pi single-board computers. This 32GB eMMC module offers fast read/write speeds and reliable data storage, making it ideal for operating systems, applications, and data-intensive tasks.

Advantages

High-speed eMMC 5.1 interface with sequential read speeds up to 250 MB/s and write speeds up to 125 MB/s. Compact form factor directly mounts on the board, saving space. Supports HS400 mode and ECC for data integrity. Wide operating temperature range from -25°C to 85°C ensures reliability in various environments.

Suitable for

• Rock Pi 4, Rock Pi E, and Rock Pi 3A single-board computers
• Embedded systems requiring fast and durable storage
• IoT projects, media centers, and edge computing

Key specifications

• Storage Capacity: 32 GB
• Memory Type: eMMC 5.1
• Interface: 8-bit parallel
• Sequential Read Speed: Up to 250 MB/s
• Sequential Write Speed: Up to 125 MB/s
• Operating Voltage: 1.8V / 3.3V
• Operating Temperature: -25°C to 85°C
• Endurance: 3000 P/E cycles (typical MLC NAND)
• Form Factor: eMMC Module (PCB-mounted chip)

Recommendations

For optimal performance, use with Rock Pi 4, Rock Pi E, or Rock Pi 3A boards. Ensure proper power supply and avoid static discharge during installation.
