ALLNET Rock Pi adaptador de tarjeta SD - cable prolongador microSD 15 cm (RockPi-SD-mSD_Adapt-15CM)

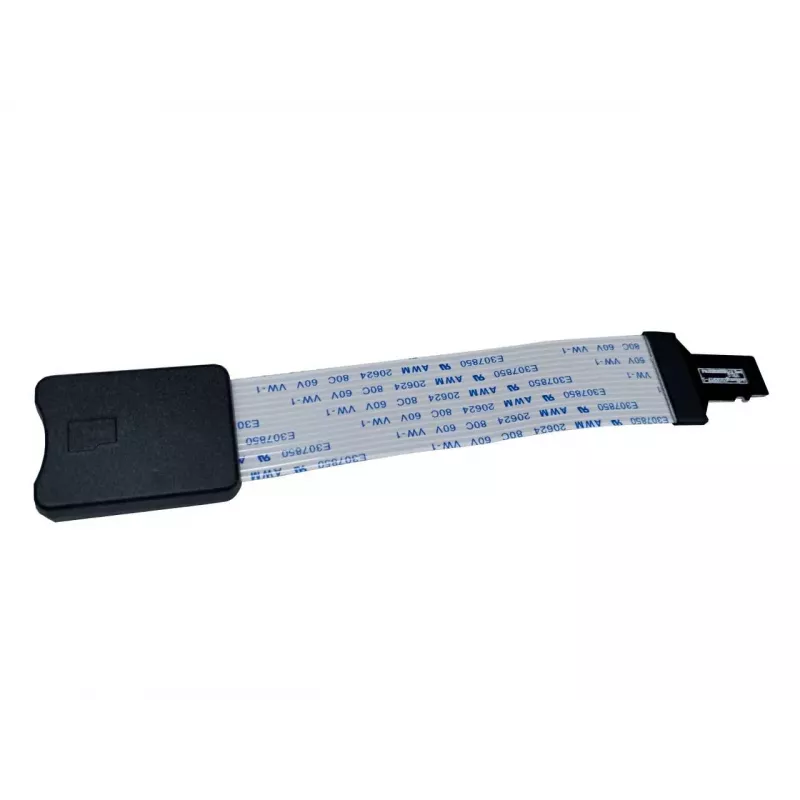

The ALLNET Rock Pi SD Card Adapter is a high-quality MicroSD to SD card extension cable designed for single board computers like the Rock Pi series and Raspberry Pi. This 15cm flexible FPC cable allows you to extend the MicroSD slot to a more accessible location, making it easier to swap boot media, debug, or manage storage without disassembling your setup.

Advantages

With this adapter, you can conveniently access your SD card even in tight enclosures or when the board is mounted in a case. The flexible design reduces strain on the connector and allows for creative placement of the SD card slot. It supports high-capacity cards up to 2TB and is fully plug-and-play, requiring no additional drivers.

Suitable for

• Rock Pi 4, Rock Pi X, and other Rock Pi models
• Raspberry Pi 3, 4, 5, and similar SBCs with MicroSD slots
• Embedded systems, prototyping, and IoT projects
• Any application needing external SD card access

Key specifications

• Product Type: MicroSD to SD Card Extension Cable
• Connector 1 (Host Side): MicroSD Male
• Connector 2 (Card Side): SD Card Female Slot
• Cable Length: 15 cm (150 mm)
• Supported Card Types: MicroSD, MicroSDHC, MicroSDXC
• Max Capacity Support: Up to 2TB (SDXC standard)
• Data Transfer Standard: UHS-I Compatible
• Cable Material: Flexible Printed Circuit (FPC)
• Connector Material: Plastic, Metal Contacts
• Color: Black (Connectors), Yellow/Orange (FPC Cable)
• Compatibility: Rock Pi series, Raspberry Pi, other SBCs
• Application: MicroSD slot extension, easier card access, debugging, boot media management
• Plug & Play: Yes
• Operating Voltage: 3.3V (Standard for SD Cards)
• Number of Pins: 9-pin (Standard MicroSD/SD)
• Installation: External
• Features: Flexible design, compact connectors for tight spaces
• Environmental Compliance: RoHS Compliant

Recommendations

This adapter is ideal for users who frequently swap SD cards or need to access the card without opening the case. It is also perfect for testing and development environments where quick card changes are required. Ensure your board supports MicroSD cards and that the cable is routed carefully to avoid sharp bends.
