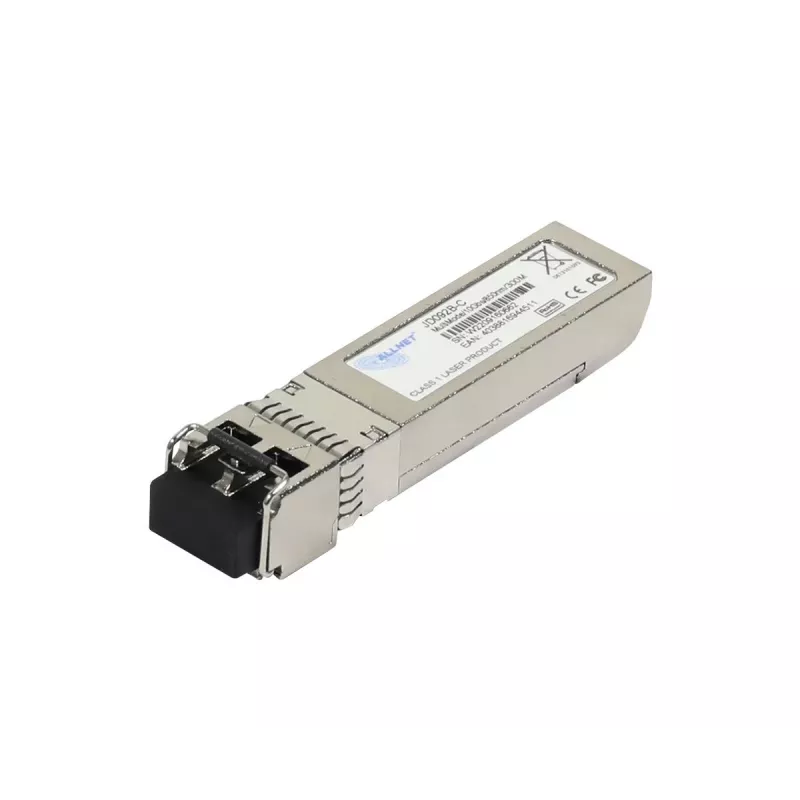

ALLNET transceptor SFP+ 10GBASE-SR, LC dúplex, 850nm, 300m OM3/400m OM4, compatible con Intel E10GSFPSR

Data centers and enterprise networks often need to add 10 Gigabit Ethernet over existing multimode fiber without replacing cabling. This ALLNET SFP+ transceiver solves that by delivering 10GBASE-SR connectivity in a hot-swappable module that is compatible with Intel E10GSFPSR optics.

Who is it for

Network engineers and IT administrators who need a reliable, cost-effective 10G fiber link for servers, switches, and storage systems in data centers or campus networks. It is ideal for short-range connections up to 300 meters on OM3 or 400 meters on OM4 multimode fiber.

Main features

• 10 Gigabit Ethernet SFP+ transceiver with 850 nm wavelength
• LC duplex connector for multimode fiber
• Supports distances up to 300 m on OM3 and 400 m on OM4
• Digital Diagnostic Monitoring (DDM) for real-time monitoring
• Hot-swappable for easy installation and replacement
• Compatible with Intel E10GSFPSR

Specifications

• Transceiver type: SFP+
• Data rate: 10 Gbps
• Optical standard: 10GBASE-SR
• Wavelength: 850 nm
• Connector: LC duplex
• Fiber type: Multimode
• Maximum distance: 300 m (OM3), 400 m (OM4)
• Digital Diagnostic Monitoring: Yes
• Hot-swappable: Yes
• Power consumption: < 1.0 W
• Operating temperature: 0°C to 70°C

Tips

Ensure your fiber type matches the required distance: use OM3 for up to 300 meters and OM4 for up to 400 meters. For best performance, clean the LC connectors before installation.
