Almohadilla térmica DeLOCK 18472 3,2 W/m·K gris 100x100x1 mm

Thermal pad DeLOCK 18472 3.2 W/m·K Grey 100x100x1 mm is a grey thermal conductive pad designed to improve heat dissipation in electronic components such as M.2 modules. With a thermal conductivity of 3.2 W/m·K and dimensions of 100 x 100 x 1 mm, the pad helps maintain optimal operating temperatures and can contribute to longer component lifetime. The product is supplied in a polybag.

Advantages

The pad provides efficient thermal transfer thanks to its 3.2 W/m·K conductivity and covers a large surface area at 100 x 100 mm. Its low oil bleeding formulation reduces contamination risk of electronic contacts and components, helping the pad retain its thermal and mechanical properties for stable, long-term heat dissipation.

Suitable for

• Heat dissipation on M.2 modules and SSDs
• Thermal management in compact computer components
• Replacing or upgrading existing thermal interface materials in electronics

Key specifications

• Brand: DELOCK
• Model / MPN: 18472
• Thermal conductivity: 3.2 W/m·K

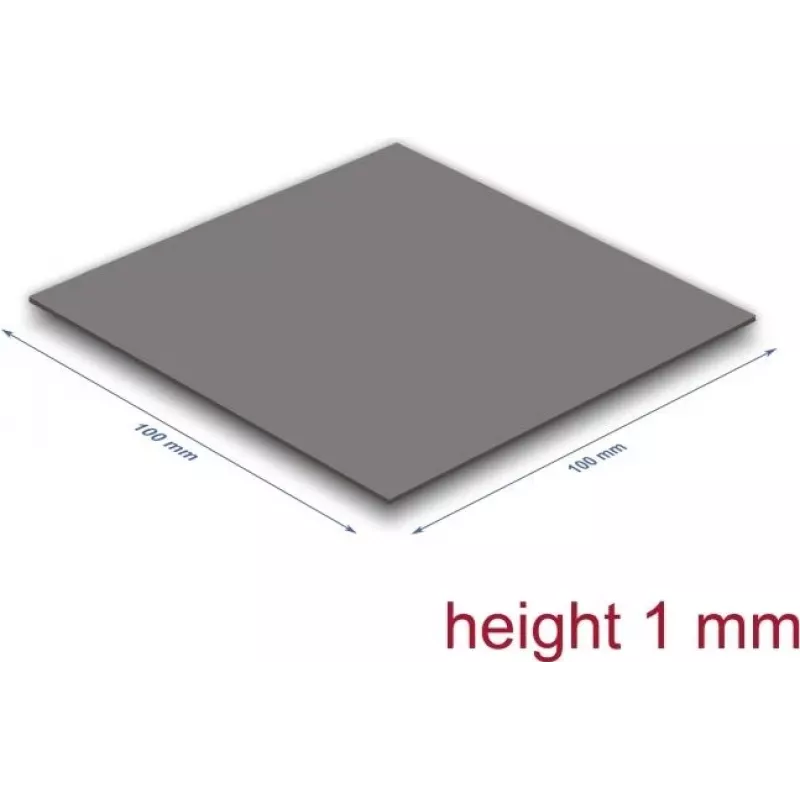

• Dimensions: 100 x 100 x 1 mm
• Color: Grey
• Packaging: Polybag
• EAN: 4043619184729

How to use

Clean the surfaces to be thermally joined to remove dust and grease. Cut the thermal pad to the required size if necessary and place it so it fully covers the heat-generating component without obstructing connectors. Apply gentle pressure to ensure contact between the pad and the heat spreader or component. Reassemble the device following the manufacturer's instructions.

Recommendations

Use the pad in dry, dust-free conditions and avoid stretching or compressing it excessively. Verify that the thickness and thermal conductivity match the thermal design requirements of your device before installation.
