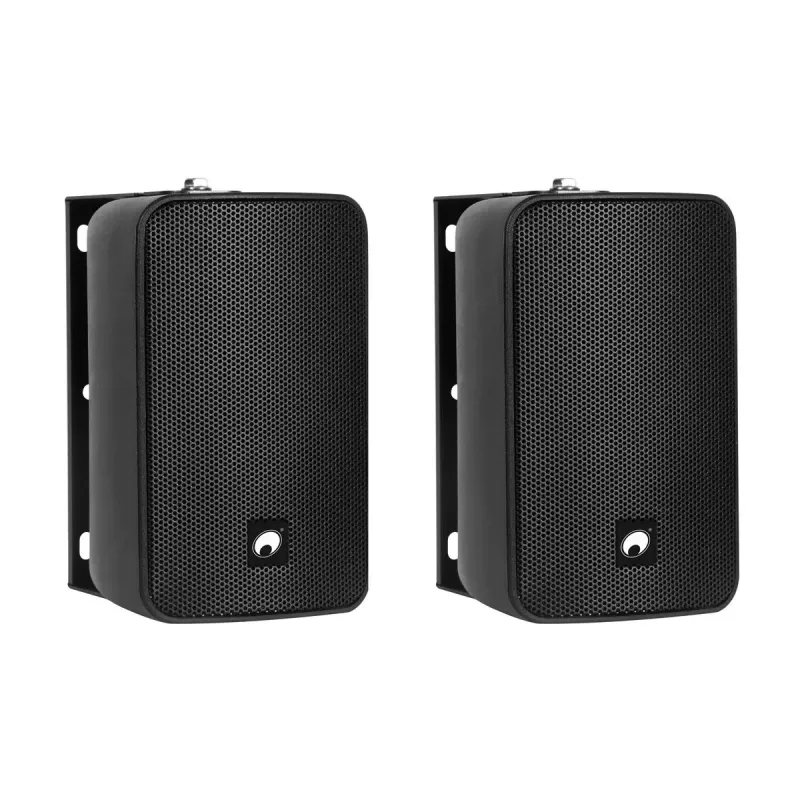

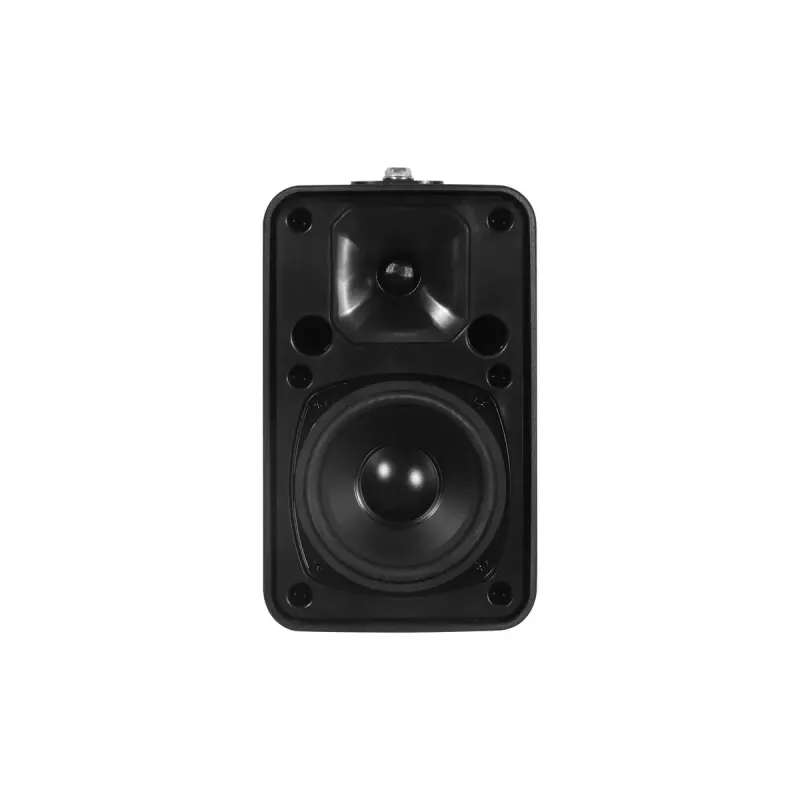

Altavoz de 2 vías Omnitronic 11036952 negro cableado 40 W

The Omnitronic 11036952 is a 2-way wired loudspeaker designed for installation in bars, restaurants, shops and hotel conference areas. It delivers 40 W RMS power with a frequency response of 75–20,000 Hz and a sensitivity of 88 dB. The speaker is available in a low-impedance 16 Ω version and also in a 100 V line variant for larger installations. The housing is weatherproof to IP54, making the speaker suitable for both indoor and outdoor use. A rotatable mounting bracket is included for flexible orientation, and a color-matched swivel wall mount is available as an option.

Advantages

The speaker provides reliable and balanced sound reproduction across speech and background music applications. Its availability in both 16 Ω and 100 V versions allows the same model to serve small standalone setups and extended multi-speaker installations. The IP54-rated plastic cabinet offers protection against dust and splashing water for outdoor or semi-outdoor placement. A rotatable mounting bracket simplifies aiming and alignment during installation.

Suitable for

Key specifications

How to use

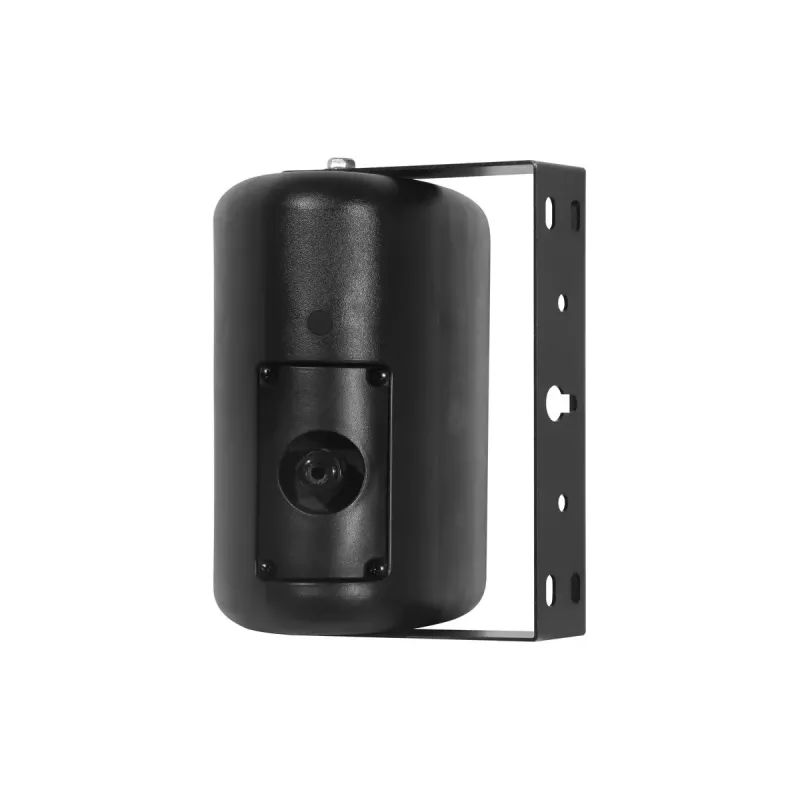

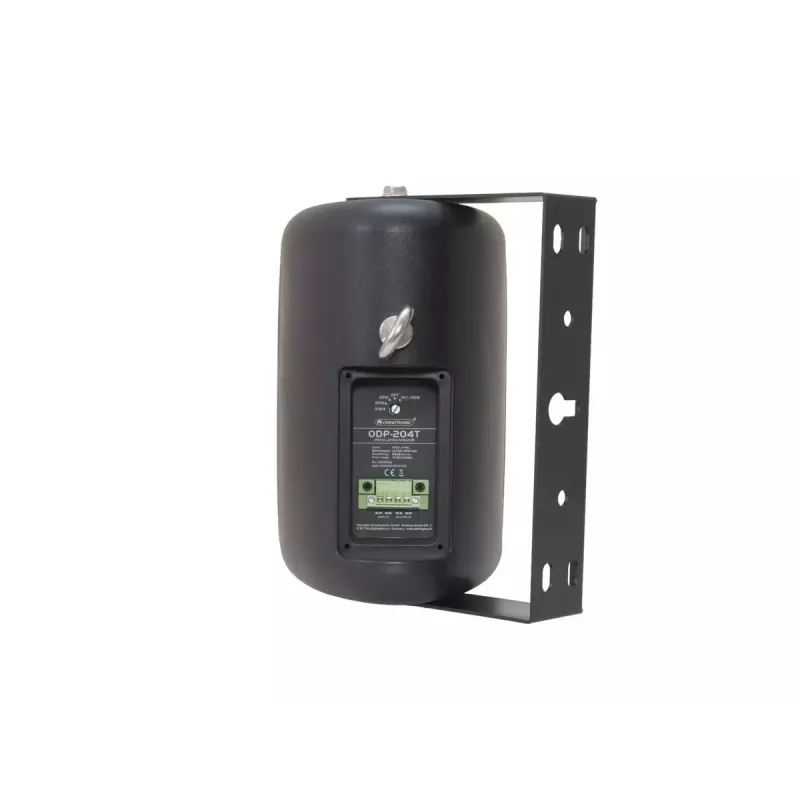

Mount the speaker using the supplied rotatable bracket and connect it to your amplifier or 100 V paging system according to the chosen model. For the low-impedance (16 Ω) version, wire the speaker to an amplifier channel that matches the speaker's power rating. For the 100 V version, select the appropriate tapping on the transformer to match the amplifier output and desired loudness. Aim the speaker as required using the rotatable bracket and secure all fastenings. Ensure cable entries and connections are protected from moisture when installed outdoors.

Recommendations

For consistent coverage in larger areas, combine multiple 100 V speakers with proper tap settings to balance level and avoid amplifier overload. For outdoor or semi-exposed locations, maintain a small shelter or canopy above the speaker if possible to extend long-term reliability despite the IP54 protection.
