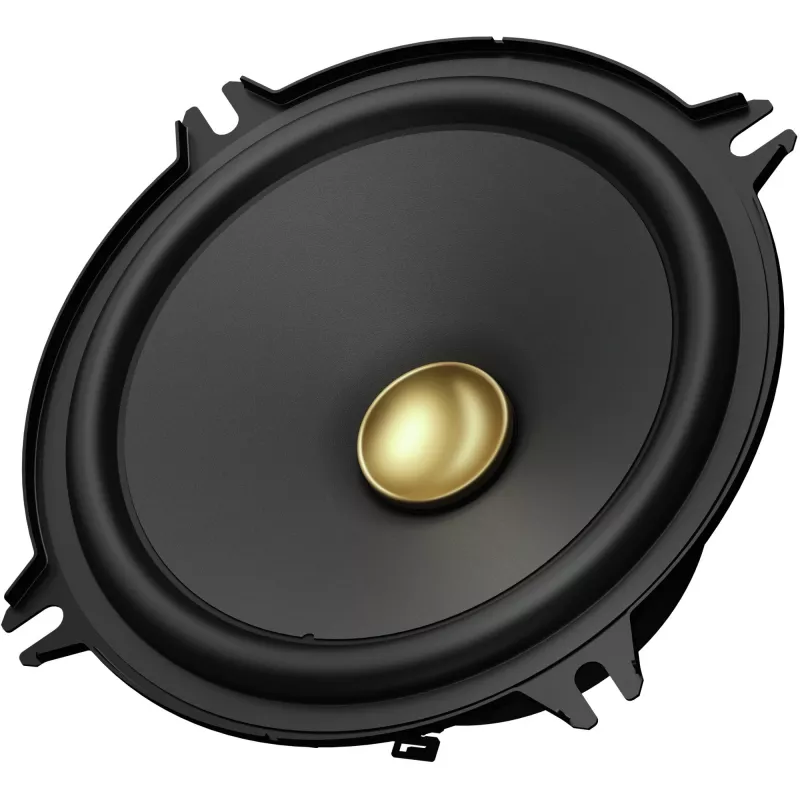

Altavoz para coche Pioneer TS-A1301C 2 vías 300 W 50 W 2 uds.

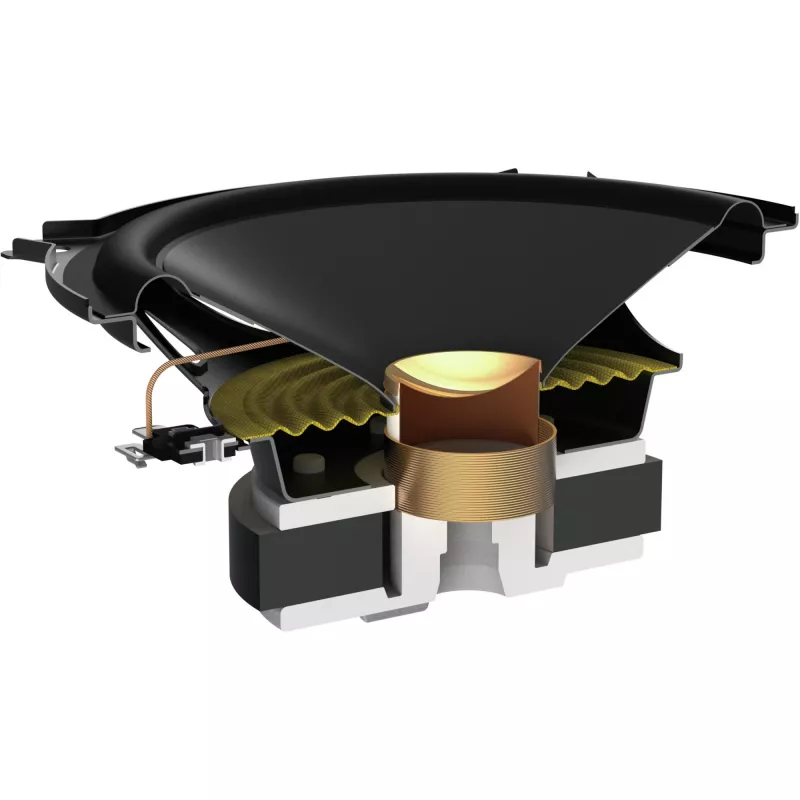

The Pioneer TS-A1301C car speaker is a 2-way coaxial design intended for in-vehicle audio upgrades. It combines a 13.3 cm woofer and a 2 cm tweeter to deliver a balance of bass presence and high-frequency clarity. The speaker has a rated power handling of 50 W and a peak power rating of 300 W, with a shallow mounting depth of 5.4 cm to suit a variety of factory and aftermarket installation locations.

Advantages

The TS-A1301C provides a compact solution for improving sound quality without major modification to vehicle interiors. Its two-way coaxial layout integrates mid/low and high-frequency drivers in a single assembly, reducing installation complexity. The combination of a 13.3 cm woofer and a dedicated 2 cm tweeter improves clarity in vocal and instrumental ranges while the specified power ratings make the speaker compatible with many factory and entry-level aftermarket head units and amplifiers. The shallow mounting depth enables fitment in tight door panels and rear decks.

Suitable for

• Replacing worn factory door or rear deck speakers
• Budget-conscious audio upgrades in compact and midsize cars
• Systems driven by factory head units or low-power amplifiers
• Installations where limited mounting depth is required

Key specifications

• Speaker type: 2-way coaxial car speaker
• Woofer diameter: 13.3 cm
• Tweeter diameter: 2 cm
• Rated power (RMS): 50 W
• Peak power: 300 W
• Mounting depth: 5.4 cm
• Configuration: 2 pieces per set

How to use

Install the Pioneer TS-A1301C speakers in compatible factory mounting locations such as door panels or rear decks, following vehicle-specific removal and reinstallation procedures. Connect the speaker leads to the vehicle wiring harness or adapter, ensuring correct polarity. If using with an aftermarket head unit or amplifier, verify power and impedance compatibility before applying full volume. Secure the speaker with appropriate screws or mounting hardware and check for clearance against window mechanisms and interior trim.

Recommendations

For optimal performance, match the speakers to a head unit or amplifier that can provide clean power near the rated 50 W RMS when possible, and set equalization to reduce distortion at high levels. When replacing factory speakers, use correct mounting adapters and sealing to minimize rattles and improve bass response.
