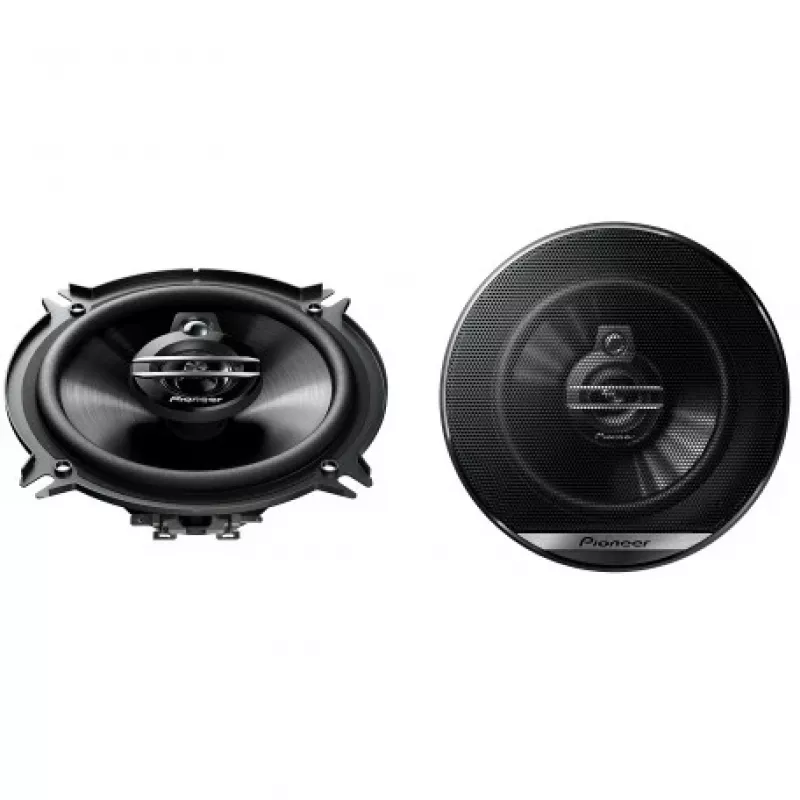

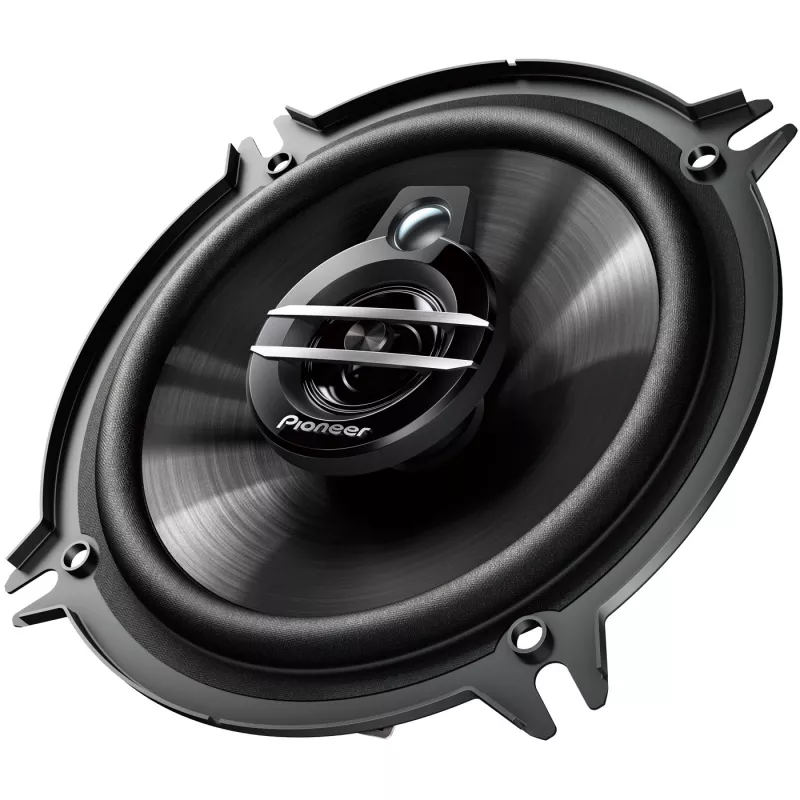

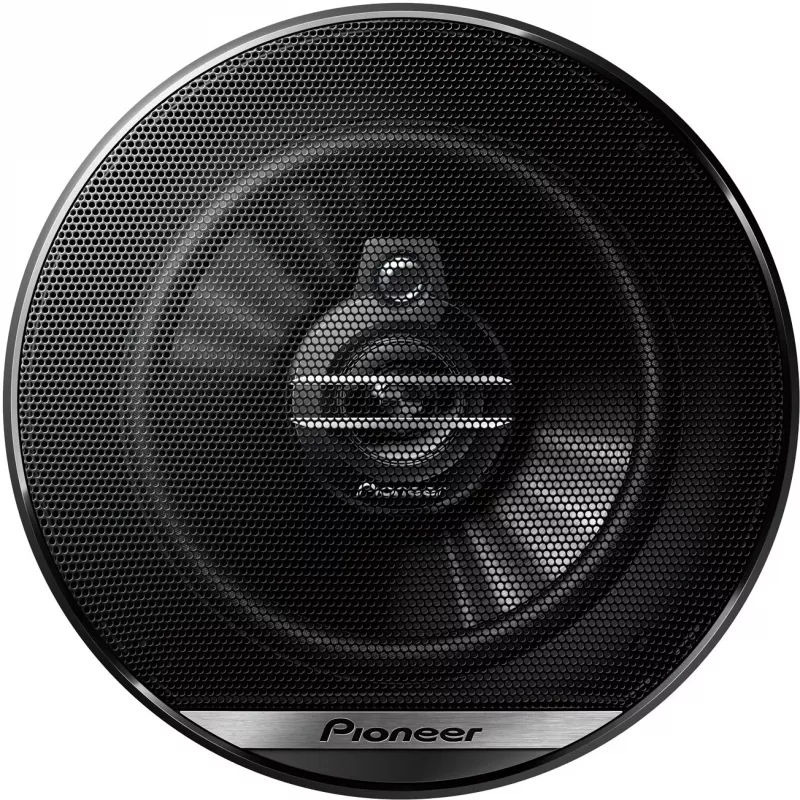

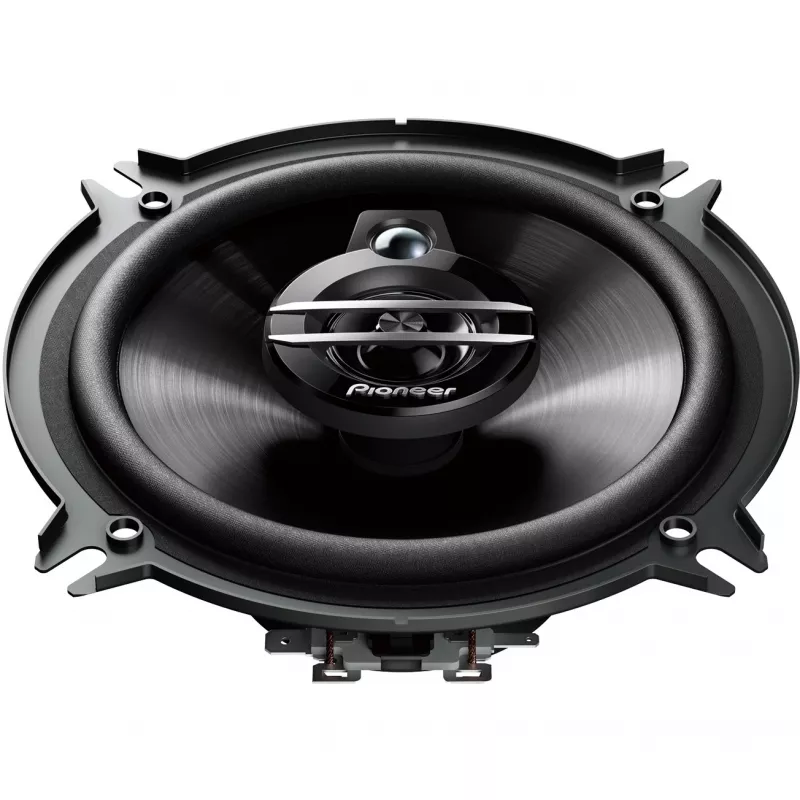

Altavoz para coche Pioneer TS-G1330F 3 vías 250W

The Pioneer TS-G1330F is a 13 cm 3-way coaxial car speaker designed to deliver improved in-car audio with balanced bass and clear highs. Part of Pioneer's renewed G-series, this model offers increased power handling and high sensitivity to reproduce deep, impactful low frequencies and natural high frequencies even at higher volumes. Its rigid construction and multi-bolt mounting pattern simplify installation in compatible vehicles.

Advantages

The TS-G1330F provides a compact 13 cm 3-way design that combines a dedicated tweeter and midrange for better frequency separation, a nominal power rating of 35 W with a peak power capability up to 250 W, and a shallow mounting depth of 4.4 cm for easier fitment in tight door or panel locations. Weighing 390 g, it balances performance and compactness for aftermarket upgrades.

Suitable for (tasks / use cases)

• Replacing or upgrading factory door or panel speakers in cars with limited mounting depth
• Improving clarity of vocals and instruments in a factory audio system
• Adding higher sensitivity speakers for louder playback with moderate power amplifiers

Key specifications

• Model: Pioneer TS-G1330F
• Type: 3-way coaxial car speaker
• Size: 13 cm
• Nominal (RMS) power: 35 W
• Peak power: 250 W
• Tweeter diameter: 1 cm
• Mounting depth: 4.4 cm
• Weight: 390 g
• Brand: PIONEER
• MPN/EAN: Pioneer TS-G1330F / 884938373449

How to use

Disconnect the vehicle battery before beginning installation. Remove the existing speaker and compare mounting dimensions to ensure the 13 cm TS-G1330F and its 4.4 cm mounting depth fit the opening. Connect the speaker wires observing correct polarity and use the multi-bolt mounting pattern to secure the speaker to the door or panel. Reconnect the battery and test playback at low volume, then gradually increase volume to confirm stable operation up to intended listening levels.

Recommendations

For best performance, pair the TS-G1330F with a head unit or amplifier that can deliver clean power close to the speaker's nominal rating and avoid prolonged distortion; use proper sealing or mounting adapters if needed to ensure a firm mechanical fit and optimized bass response.
