Amoladora angular Einhell TE-AG 230

The Einhell TE-AG 230 angle grinder is a robust, high-power tool designed for demanding cutting, grinding and roughing tasks in the home, workshop and garage. It is driven by a 2350 W motor with a maximum no-load speed of 6500 RPM, accepts 230 mm (23 cm) grinding discs and uses an M14 spindle thread. The grinder has a flat metal gear head for efficient power transfer and reduced vibration, and it weighs 6.01 kg.

Advantages

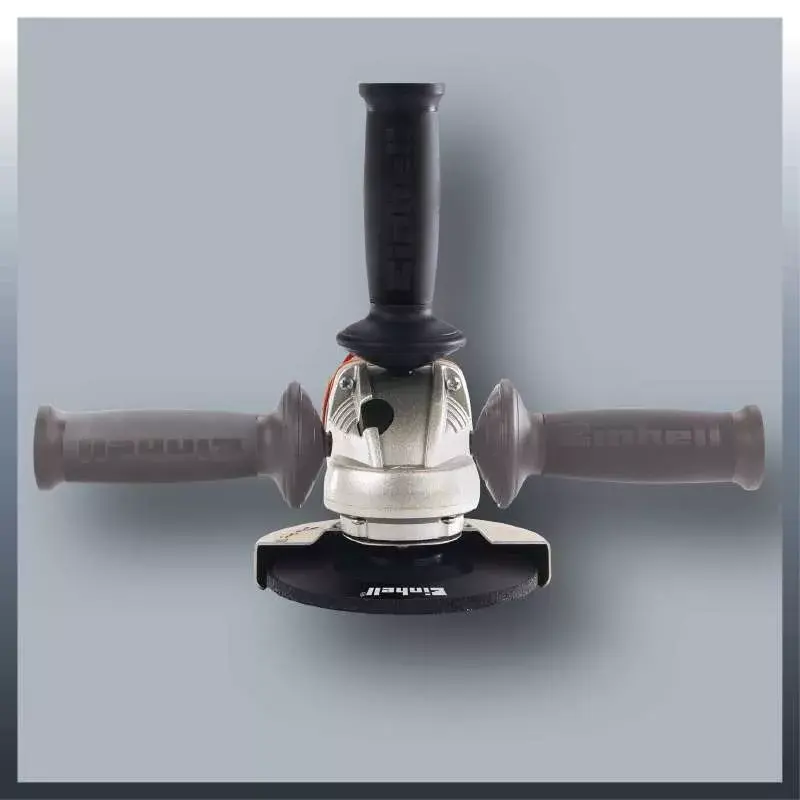

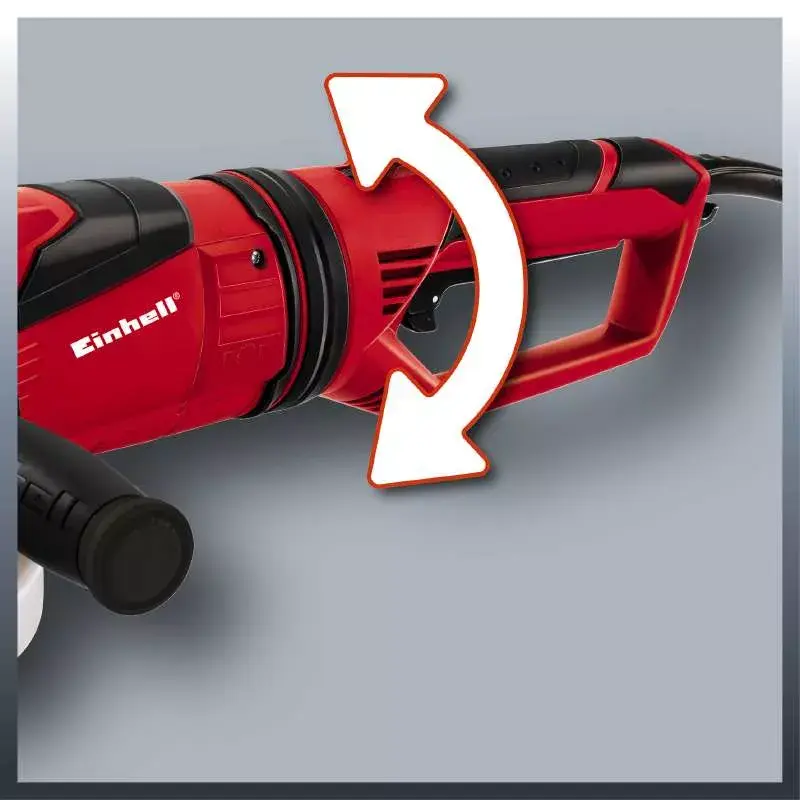

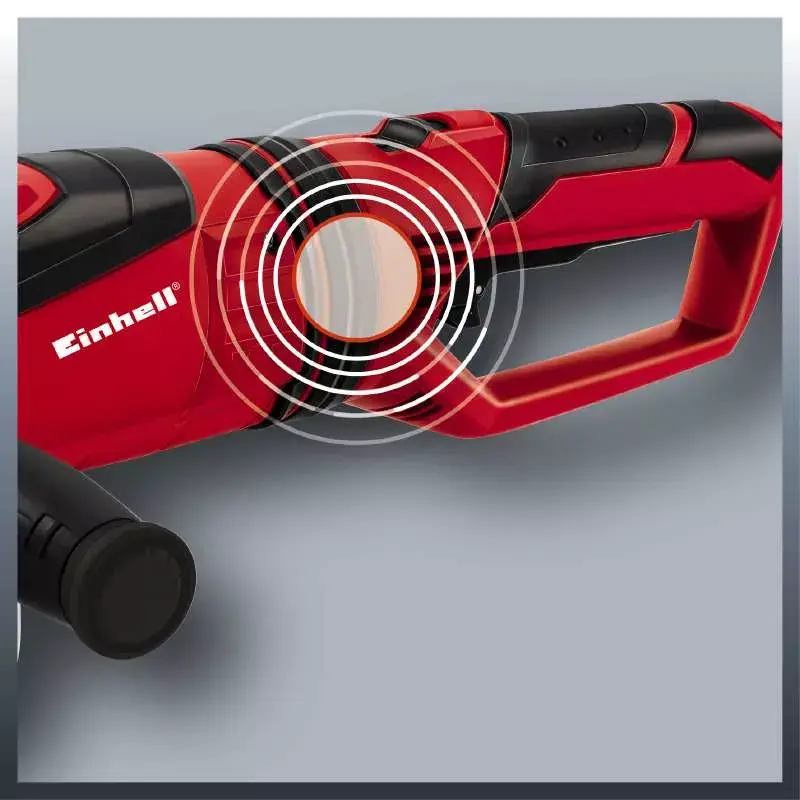

The TE-AG 230 offers a swiveling, soft-grip anti-vibration main handle for flexible positioning and reduced operator fatigue, plus an additional handle that can be mounted in three positions for improved control. A wheel guard with quick-adjust facility adapts to different tasks without tools, and the spindle stop enables quick, simple disc changes. The tool includes a soft-start function for smooth start-up, a cable clip for tidy storage and comes with a face spanner; cutting wheels are not included.

Suitable for

• Cutting metal and masonry
• Grinding and smoothing welds and metal surfaces
• Removing rust, paint and scale
• Shaping and roughing stone or concrete

Key specifications

• Power: 2350 W
• No-load speed: 6500 RPM
• Disc diameter: 230 mm (23 cm)
• Spindle thread: M14
• Voltage: 230 V AC
• Weight: 6.01 kg
• Colour: Silver, Red, Black
• Includes: face spanner; cutting wheel not included

How to use

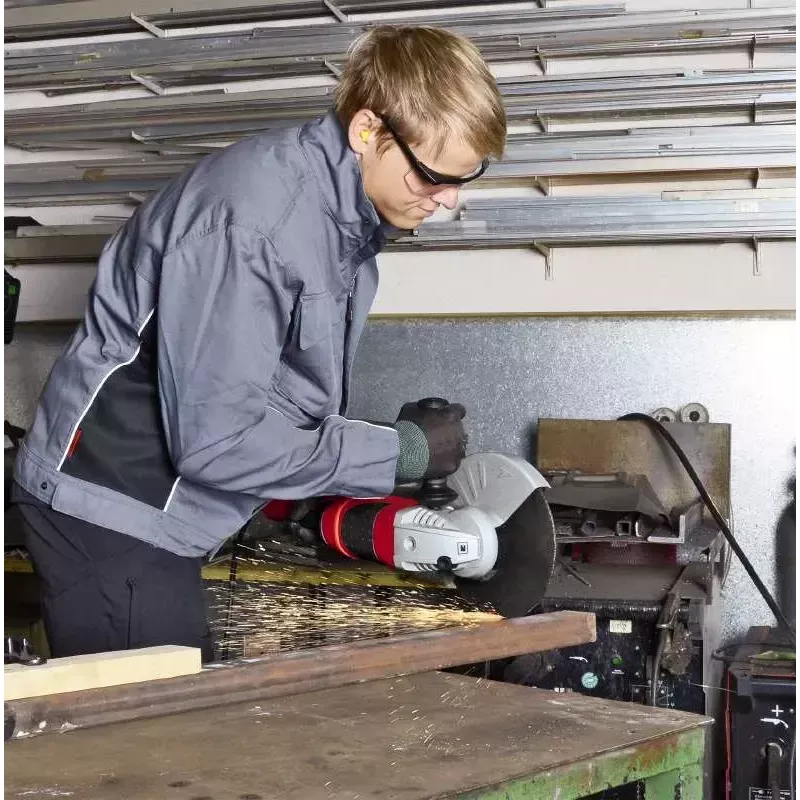

Before use, fit a compatible M14 disc and tighten it with the supplied face spanner while the spindle stop is engaged. Adjust the swiveling main handle and attach the auxiliary handle in the preferred position for secure grip. Set the wheel guard to the required angle using the quick-adjust facility. Connect to a 230 V supply and switch on; the soft-start ensures a gradual acceleration to operating speed. During operation, hold the grinder with both handles, maintain a steady travel speed over the workpiece and allow the tool to do the cutting or grinding without excessive force.

Recommendations

Use appropriate personal protective equipment (safety glasses, hearing protection, gloves and dust mask), select the correct disc type for the material and inspect discs for damage before mounting. Ensure secure clamping of the workpiece and avoid side loading of cutting discs. Disconnect from power before changing accessories or performing maintenance.
