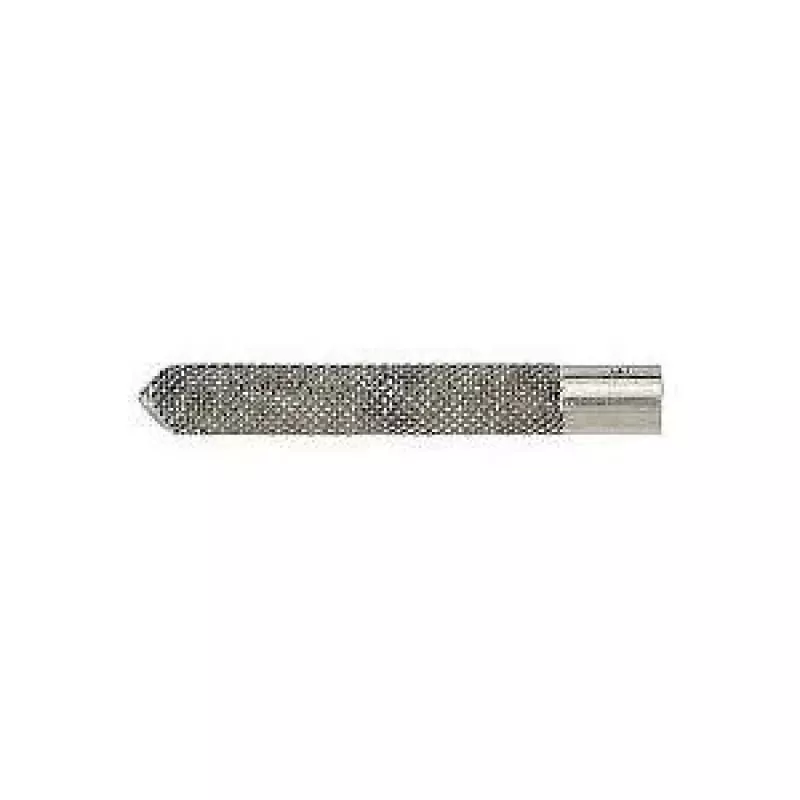

Anclaje con rosca interior Fischer RG 22 x 160 M16 (pack de 5) - acero galvanizado 50563

For heavy-duty anchoring in concrete, solid brick, and natural stone, the Fischer RG 22 x 160 M16 internal thread anchor delivers a high-performance solution that sets a new standard for reliability. Its M16 internal thread accepts standard metric bolts or threaded rods, allowing for flexible fixture attachment and easy disassembly when needed. The anchor body is crafted from electro-galvanized steel, providing excellent corrosion resistance for long-term durability in indoor and sheltered outdoor applications. This pack contains 5 anchors, each with a length of 160 mm and a drill hole diameter of 22 mm, making it ideal for structural connections, machinery mounting, and railing installations.

Highlights

• Internal thread M16 for direct bolting of components
• Electro-galvanized steel for superior corrosion protection
• Pre-positioned installation ensures precise placement
• ETA-approved for cracked and non-cracked concrete (check documentation)
• Pack of 5 anchors for convenient project quantities

In daily use

The RG anchor is installed by drilling a 22 mm hole to the required depth, cleaning the hole thoroughly, and then setting the anchor with a suitable setting tool. Once installed, the internal thread allows you to screw in a bolt or threaded rod to secure your fixture. The anchor's design provides high tensile and shear load capacities, making it suitable for demanding applications such as securing steel columns, heavy machinery, or safety barriers. Its galvanized finish ensures resistance to rust and corrosion, extending the service life of the anchor even in challenging environments.

Full specifications

• Anchor type: Internal thread anchor
• Thread size: M16
• Drill hole diameter: 22 mm
• Anchor length: 160 mm
• Minimum drill hole depth: 160 mm
• Effective anchorage depth: 160 mm
• Material: Electro-galvanized steel
• Installation type: Pre-positioned
• Suitable for materials: Concrete, solid brick, natural stone
• Corrosion protection: Galvanized
• Load type: Tensile and shear
• Product series: RG
• Pack quantity: 5 pieces
• Approvals: ETA-approved (for specific applications)

Final note

When you need a robust, corrosion-resistant anchor with a removable connection, the Fischer RG 22 x 160 M16 is the professional's choice. Its proven performance and ease of use make it a staple on construction sites and in industrial maintenance.
