Anclaje de expansión Fischer 568110 80 mm nailon 25 uds.

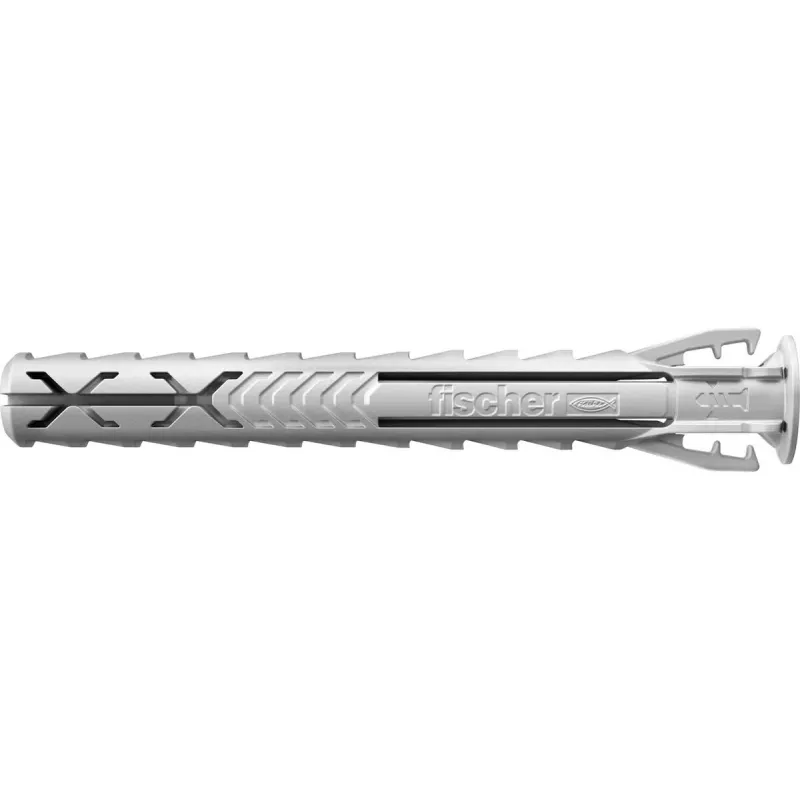

Fischer 568110 SX Plus expansion anchors are nylon plugs designed for secure fixings in a wide range of base materials including concrete, sand-lime brick, masonry, autoclaved aerated concrete and gypsum fibre board. Each pack contains 25 anchors with a nominal size of 10 x 80 mm and a recommended drill diameter of 10 mm. The longer anchorage depth of this variant makes it particularly suitable for hollow building materials and installations that need to bridge plaster layers.

Advantages

The 4-way expansion ensures efficient force transmission into the base material, delivering reliable load values in both solid and perforated substrates. Special fixing blades provide pre-fixation of the screw so that the screw remains in place during setting, freeing both hands for installation tasks. An expansion-free plug neck prevents radial surface stresses while screwing, reducing the risk of damage to tiles and plaster. The plug’s shape allows easy insertion into the drilled hole with a few light hammer blows, and the flexible plug edge reduces the risk of the anchor slipping too deep into the hole. High-quality nylon construction guarantees durable holding performance across a range of building materials.

Suitable for

• Solid materials: concrete, sand-lime brick and masonry
• Perforated and hollow materials: aerated concrete and hollow blocks
• Fixings through plaster or thin covering layers
• Connections needing wood, chipboard or threaded/stud screws

Key specifications

• Brand: FISCHER
• MPN: 568110
• EAN: 4048962480894
• Type: SX Plus nylon expansion anchor
• Size: 10 x 80 mm (diameter x length)
• Drill hole diameter: 10 mm
• Material: Nylon

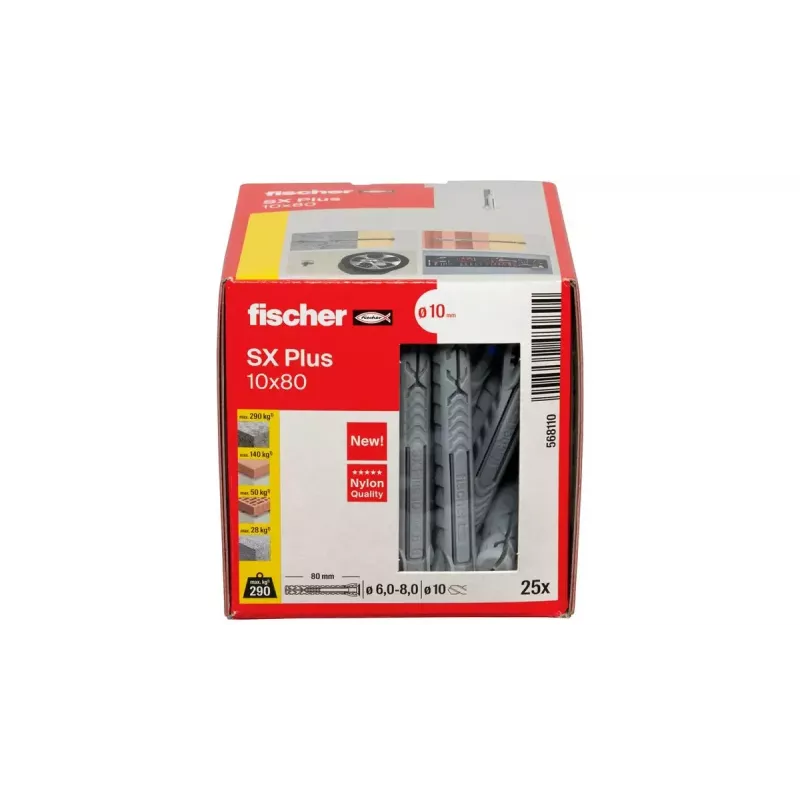

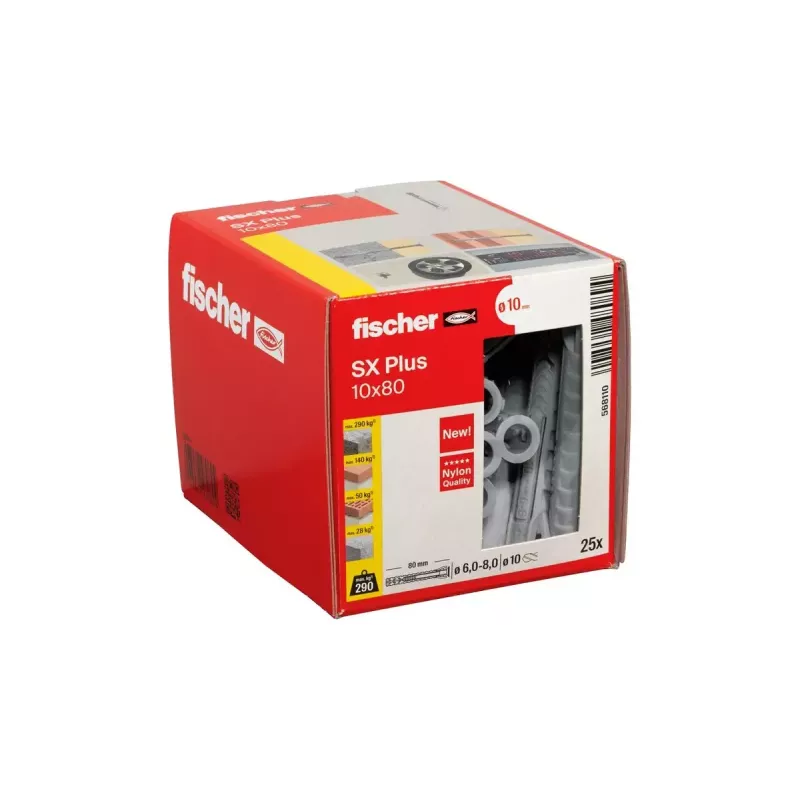

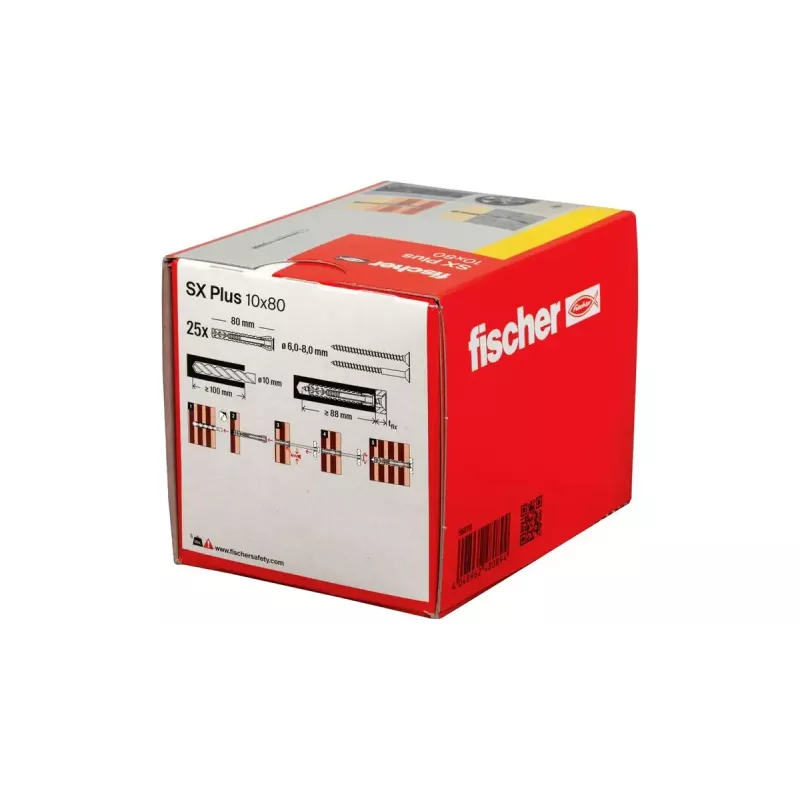

• Pack quantity: 25 pieces

How to use

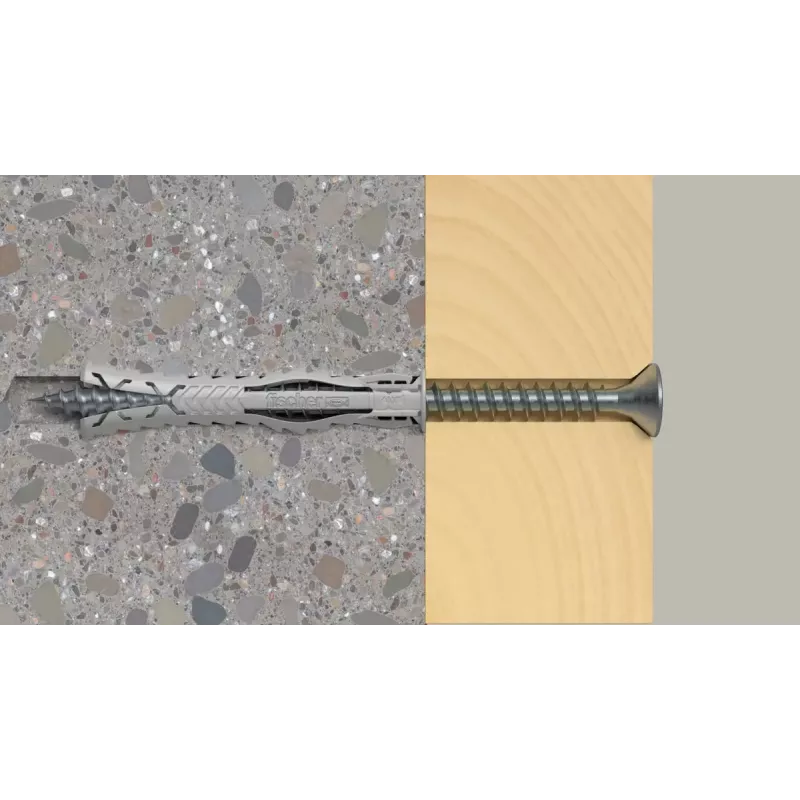

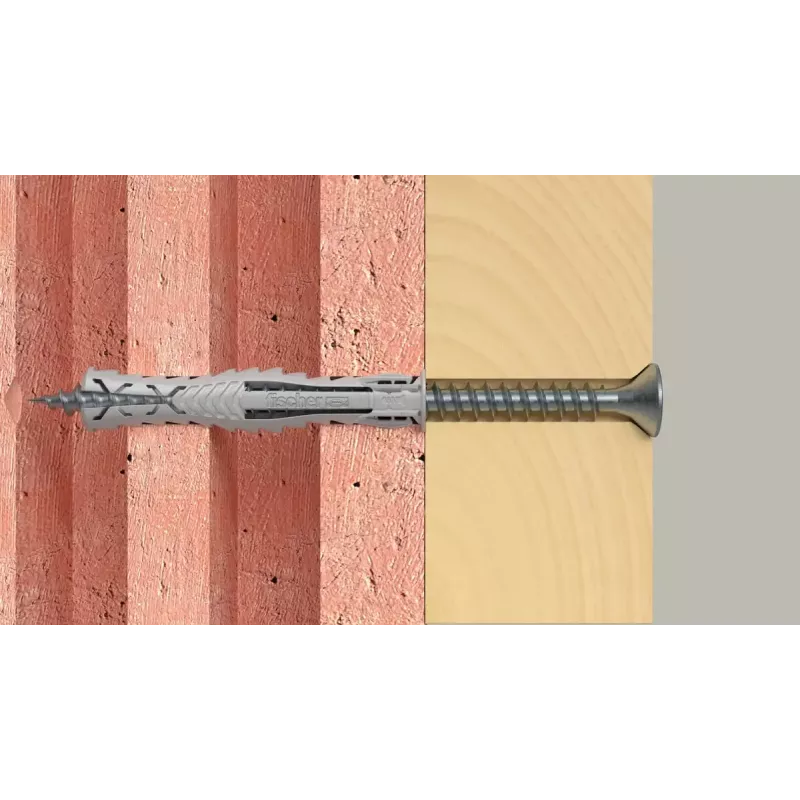

Drill a hole of the specified diameter (10 mm) to the required depth, remove drilling dust, then insert the Fischer SX Plus anchor flush with the surface or to the required depth. For pre-positioned installation the anchor is put into the hole before placing the fixture; for push-through installation the anchor is pushed through the fixture into the hole. Start the appropriate wood, chipboard or stud screw; the fixing blades will hold the screw in position. Tighten the screw until noticeable tightening torque is felt, at which point the anchor expands in four directions to form a secure connection.

Recommendations

Use screw length equal to plug length + fixture thickness + screw diameter. Ensure the drill hole is cleaned of dust before insertion. Select screws compatible with the SX Plus (wood/chipboard or threaded screws) and observe the material-specific load tables for safe working loads.
