Anclaje de perno Fischer FBZ 10/30 25 unidades

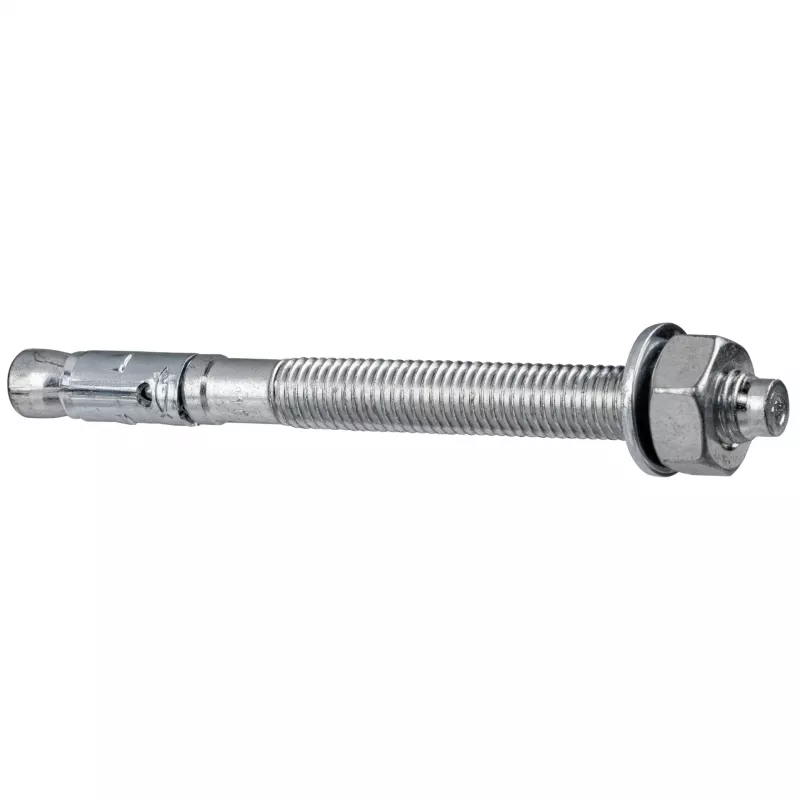

The Fischer Bolt Anchor FBZ 10/30 is a high-performance through-bolt anchor designed for secure fastening in cracked and non-cracked concrete. Ideal for heavy-duty applications, this anchor provides reliable load-bearing capacity and is suitable for dry indoor environments.

Advantages

Easy through-fixing installation with hex nut and washer; electro-galvanized steel for corrosion resistance; approved for seismic categories C1 and C2; fire resistance up to R120.

Suitable for

• Fixing of steel structures, handrails, brackets, and machinery to concrete
• Installations in cracked and non-cracked concrete C20/25 to C50/60
• Dry indoor conditions

Key specifications

• Nominal diameter: 10 mm
• Anchor length: 90 mm
• Thread size: M10
• Max. clamping thickness: 30 mm
• Drill hole diameter: 10 mm
• Min. drill hole depth: 80 mm
• Min. embedment depth: 70 mm
• Spanner width: SW 17
• Material: Steel, electro-galvanized
• Approval: ETA-10/0352
• Fire resistance: R30 to R120
• Seismic performance: C1, C2
• Pack quantity: 25 pieces

Recommendations

Ensure correct drill hole depth and embedment depth for optimal load capacity. Use appropriate safety equipment during installation.
