Anclaje expansivo Fischer 567807 6x30mm para hormigón ladrillo 90 piezas

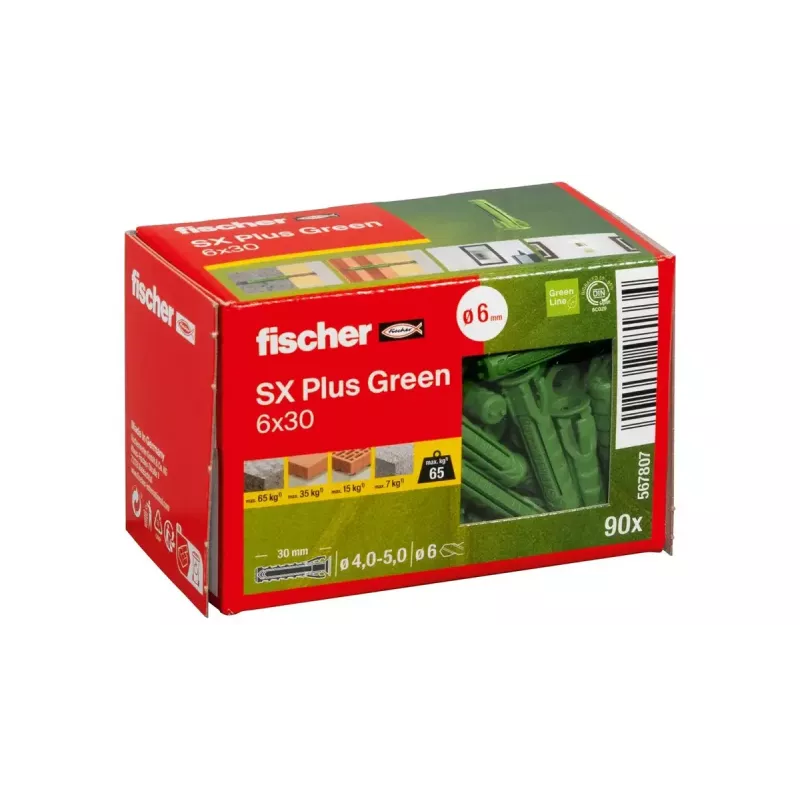

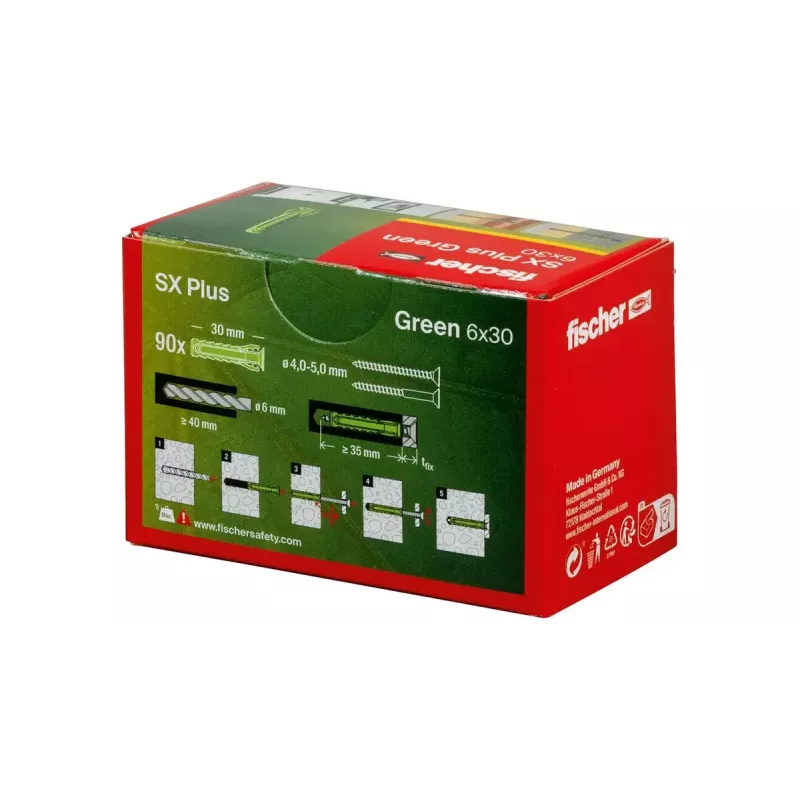

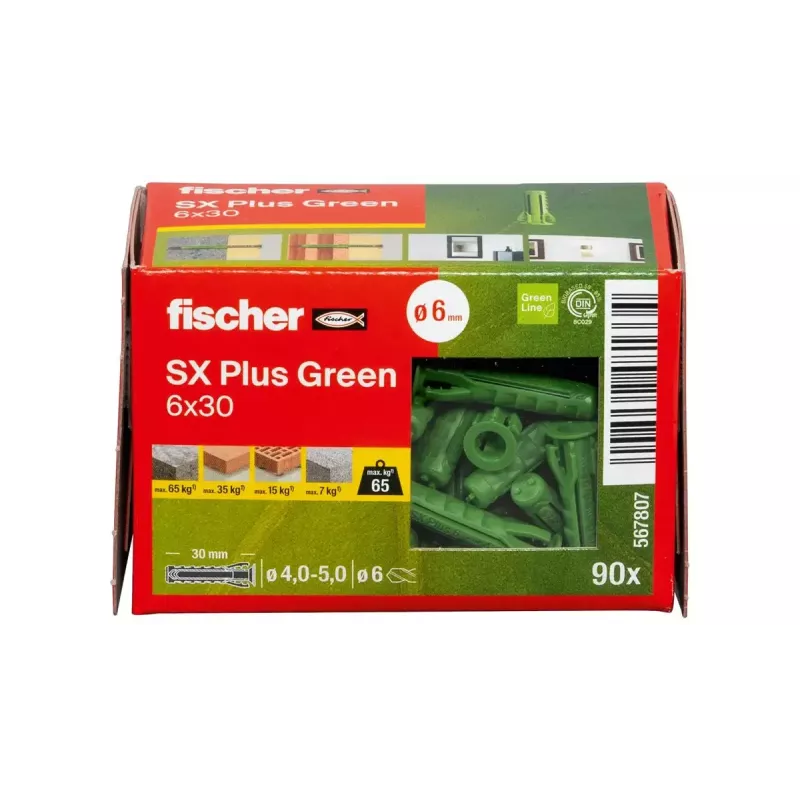

Fischer 567807 is a set of 90 SX Plus Green expansion anchors (6 x 30 mm) designed for secure fastening in solid building materials such as concrete, sand-lime brick and masonry. The anchors are made from at least 50% renewable raw materials and come packaged in a practical box for storage and transport.

Advantages

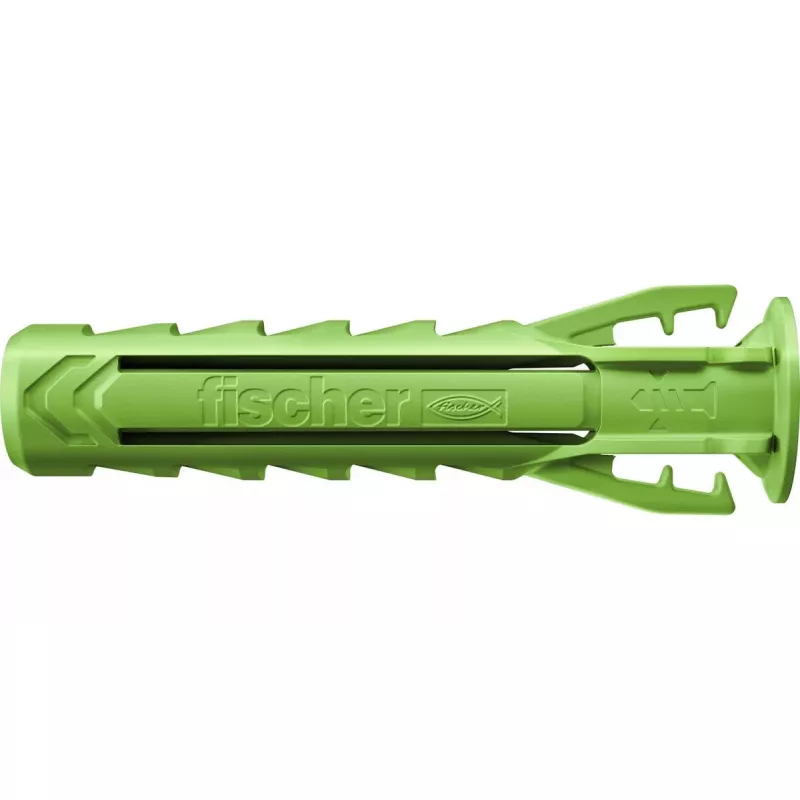

The SX Plus Green anchors are produced with at least 50% renewable raw materials, reducing the product's environmental footprint. Their 4-way expansion provides optimum force transmission into the substrate and guarantees high load values in solid and perforated materials. Special fixing blades pre-fix the screw, keeping both hands free during installation. An expansion-free plug neck prevents expansion forces on the material surface while screwing, helping to avoid damage to tiles and plaster. The plug's shape allows easy placement into the drill hole with a few light hammer blows, and the pronounced plug edge prevents slipping deeper into the hole for reliable installation.

Suitable for

• Concrete
• Sand-lime brick
• Masonry
• Indoor fixtures and fittings where 6 x 30 mm anchors are appropriate

Key specifications

• Brand: FISCHER
• Model / MPN: 567807
• EAN: 4048962481334
• Type: SX Plus Green expansion anchor
• Dimensions: 6 x 30 mm
• Quantity: 90 pcs
• Material basis: ≥50% renewable raw materials
• Suitable substrates: concrete, sand-lime brick, masonry

How to use

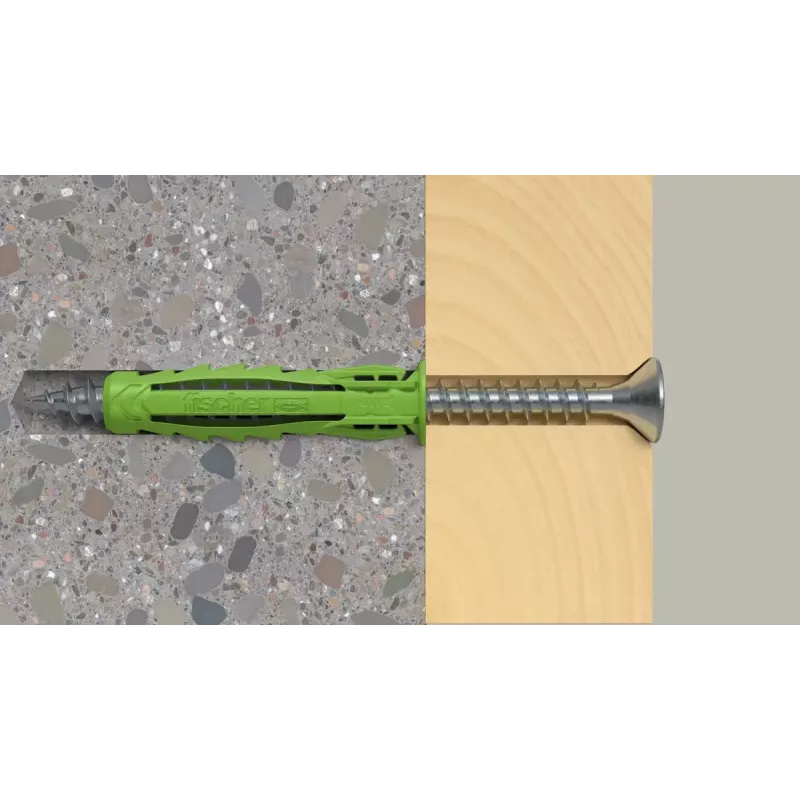

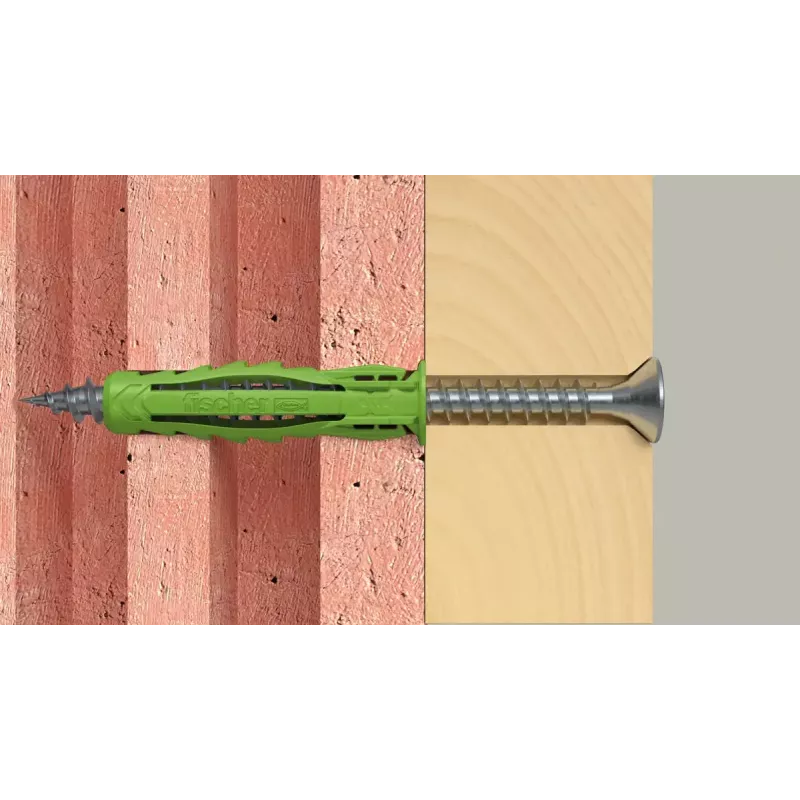

Drill a hole of the appropriate diameter and depth for a 6 x 30 mm anchor, clean the hole of dust, then insert the SX Plus Green plug either as a push-through or pre-positioned installation. The fixing blades fold inward when the plug is inserted, holding the screw in place. Insert the matching screw and tighten; the anchor expands in four directions to secure itself in the substrate. The rotation lock prevents the plug from turning during installation.

Recommendations

Use anchors of the correct length and diameter for the fixture and substrate. Clean drill holes thoroughly and choose screws compatible with 6 x 30 mm SX Plus Green plugs. Avoid overtightening; the anchor’s design provides high tightening torque while preventing overtightening of the screw.
