Anclaje para clavar FISCHER N 6x40/10 S (100 piezas) — anclaje metálico para clavar 6×40 mm, casquillo 10 mm

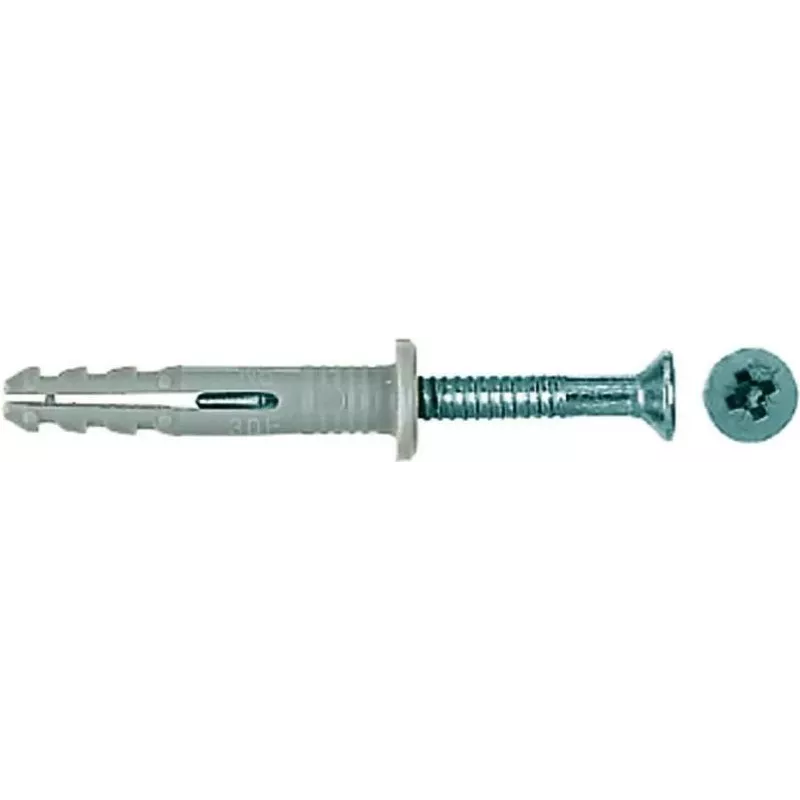

Nail Anchor FISCHER N 6x40/10 S (100 pcs) is a metal nail-type anchoring fastener with a 6 mm shank and 40 mm overall length, supplied with a 10 mm expansion sleeve. Intended for use in solid base materials such as concrete and masonry, this anchor provides a mechanical expansion connection for light to medium load applications. The product is supplied in a box of 100 pieces for repetitive or professional installation tasks.

Advantages

The metal nail anchor combines a durable steel shank with an expansion sleeve to deliver straightforward, fast installation and consistent pull-out resistance in solid substrates. Its compact dimensions allow for use where minimal edge distance is required and the sleeve ensures secure clamping in drilled holes. Supplied in a 100-piece pack, it suits projects that require multiple identical fixings and reduces downtime for frequent anchoring operations.

Suitable for

• Fixing light to medium fixtures in concrete and solid masonry
• Mounting brackets, rails, and cable trays
• Temporary or permanent installations requiring mechanical anchors

Key specifications

• Shank diameter: 6 mm
• Overall length: 40 mm
• Expansion sleeve diameter: 10 mm
• Material: metal shank with expansion sleeve (steel and sleeve materials as supplied)
• Pack quantity: 100 pieces
• Designed for use in solid base materials such as concrete and masonry

How to use

Drill a hole of appropriate diameter and depth in the solid base material, clean the hole of dust and debris, insert the expansion sleeve with the nail anchor and set the nail by hammering until the head is flush or the required embedment is achieved. Ensure correct hole diameter and depth for reliable anchoring performance and follow any applicable local installation standards for spacing and edge distances.

Recommendations

Use the anchor only in solid substrates such as concrete or solid masonry; do not use in hollow or perforated blocks without additional measures. Check load requirements, maintain recommended spacing and edge distances, and verify hole cleaning before installation to achieve designed performance. Store the anchors dry and protected from corrosion prior to use.
