Antena 5G LTE Delock SMA conector macho 3-5 dBi rígida omnidireccional montaje en pared y mástil exterior blanca

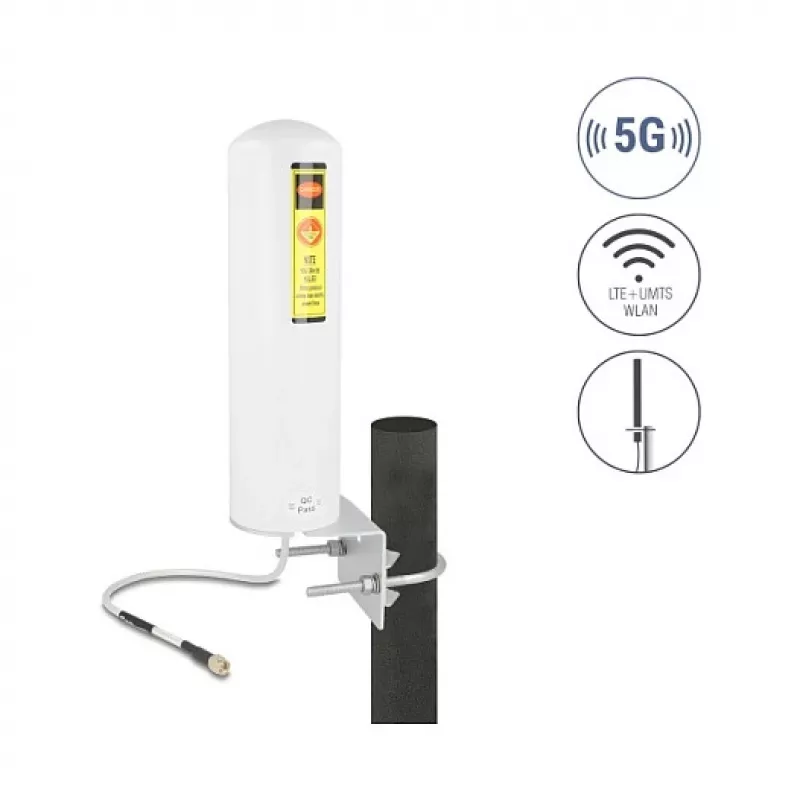

The Delock 5G LTE Antenna is a high-performance, rigid omnidirectional antenna designed for outdoor use. It supports a wide frequency range from 698 MHz to 6000 MHz, making it compatible with 2G, 3G, 4G (LTE), 5G, LoRa, WLAN, Bluetooth, ZigBee, ISM, Sigfox, and NB-IoT technologies. With a gain of 3-5 dBi and an SMA male connector, this antenna is ideal for wall or mast mounting in various applications.

Advantages

This antenna offers robust performance with an IP67 rating, ensuring protection against dust and water. Its rigid design provides a stable connection, and the omnidirectional pattern ensures 360-degree coverage. The antenna is easy to install with wall or mast mounting options.

Suitable for

• 5G and LTE cellular networks
• IoT applications (LoRa, Sigfox, NB-IoT)
• WLAN and Bluetooth systems
• ISM band devices

Key specifications

• Frequency range: 698-960 MHz, 1710-2700 MHz, 3300-3800 MHz, 4200-6000 MHz
• Antenna gain: 3-5 dBi
• Connector: SMA male
• VSWR: ≤ 2.0
• Impedance: 50 Ohm
• Polarization: Linear vertical

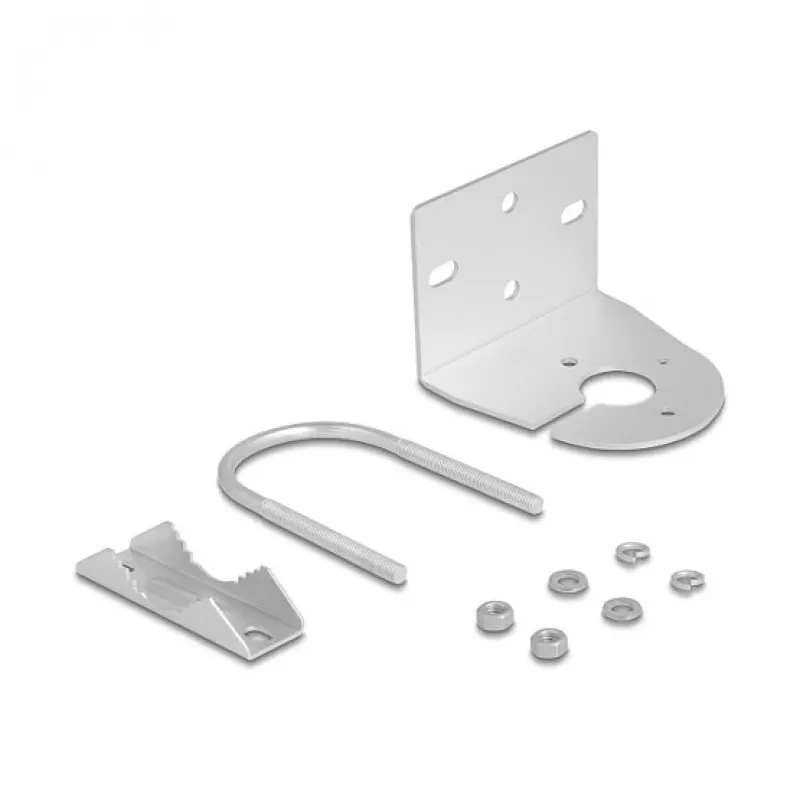

• Mounting: Wall and mast
• IP rating: IP67
• Operating temperature: -40 °C to 85 °C
• Housing material: ABS
• Colour: White
• Length: 150 mm
• Diameter: 22 mm

Recommendations

For optimal performance, mount the antenna in a clear outdoor location with minimal obstructions. Ensure the SMA connector is securely tightened to prevent signal loss.
