Antena DeLOCK 5G LTE conector compatible I-PEX Inc. MHF I

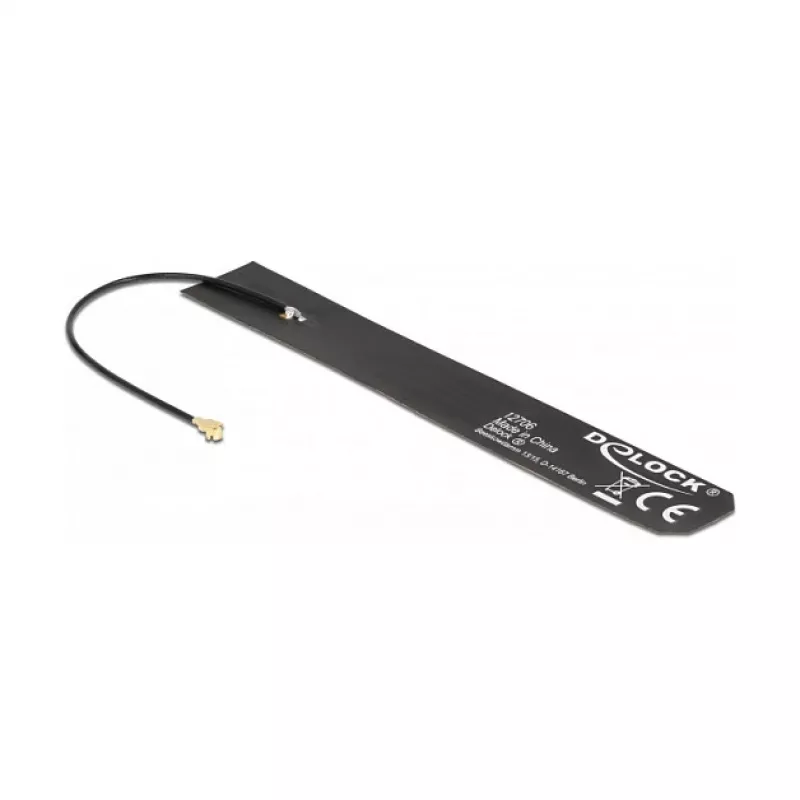

The DeLOCK 5G LTE Antenna is an omnidirectional external antenna designed for mobile radio and wireless applications. It supports a wide frequency range from 0.7 to 6 GHz and is compatible with GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, dual-band WLAN, Bluetooth, ISM, DECT and LoRa. The antenna has an MHF (I-PEX MHF) connector, 50 Ω impedance and a compact black housing measuring 16.2 mm × 112.5 mm × 1.5 mm.

Advantages

This antenna offers broad multi‑protocol compatibility and an omnidirectional radiation pattern, enabling stable reception across several wireless standards. With a maximum gain of 4 dBi and low impedance of 50 Ω it is suitable for many integrated devices. The compact size and black finish allow easy installation where space is limited while keeping a discreet appearance.

Suitable for

• Embedded modems and routers supporting 5G LTE and 4G/3G
• IoT gateways and sensors using NB‑IoT, LoRa, ZigBee or Z‑Wave
• Devices requiring dual‑band WLAN or Bluetooth external antenna
• DECT and other ISM band applications

Key specifications

• Frequency range: 0.7 – 6 GHz
• Maximum gain: 4 dBi
• Impedance: 50 Ω
• Connector: I-PEX MHF (MHF I compatible)
• Colour: Black
• Dimensions (W × D × H): 16.2 mm × 112.5 mm × 1.5 mm

How to use

Connect the MHF connector of the antenna to the corresponding MHF socket on your device or adapter. Position the antenna externally or inside an enclosure where the cable and connector fit, ensuring it is oriented for best omnidirectional coverage. Verify device settings for external antenna use if required and test signal strength after installation to confirm improved reception.

Recommendations

For optimal performance, avoid placing the antenna near large metal objects or sources of strong electromagnetic interference. If used inside an enclosure, place it close to a non-metallic barrier or near an opening to reduce attenuation. Check device documentation for connector polarity and mounting constraints before installation.
