Antena direccional MIMO Panorama Antennas WMMG-7-38-5SP 5 dBi SMA

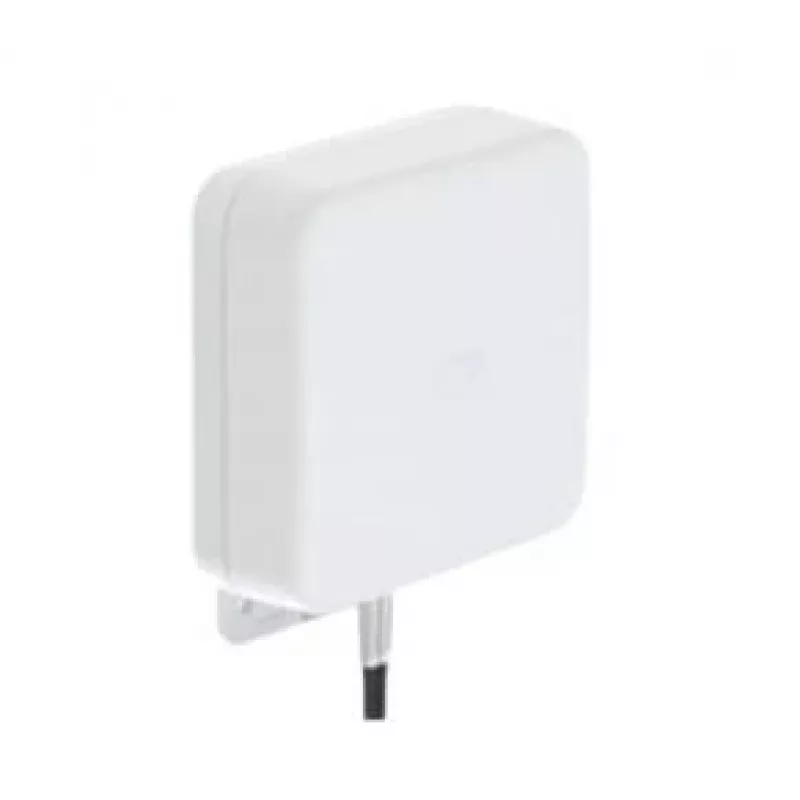

The Panorama Antennas WMMG-7-38-5SP is a compact MIMO directional antenna designed for reliable client-side connectivity across legacy 3G/4G and 3.4–3.8 GHz 5G bands. The unit integrates two separately fed ultra-wideband elements in a single weatherproof housing, delivering 2–5 dBi gain over the 698–3800 MHz range while maintaining a wide beam pattern suitable for metro and urban deployments. The antenna includes mounting hardware for wall or mast installation and a desk stand for window-sill placement. It is supplied with an integral twinned CS29 coaxial cable with SMA plug connectors for a simple plug-and-play setup.

Advantages

The WMMG-7-38-5SP offers a future-proof MIMO solution by combining two wideband elements into one housing, providing stable connectivity and improved data rates across multiple cellular generations. Its 2–5 dBi gain and wide beam pattern balance coverage and performance for urban environments. The rugged IP65-rated enclosure and included mounting accessories support flexible installation options, while the integral twinned CS29 cable with SMA plugs enables straightforward, low-effort installation.

Suitable for

• Enhancing client-side reception for 3G, 4G and 5G (3.4–3.8 GHz) networks
• Indoor window-sill placement or outdoor wall/mast mounting in urban and metro areas
• Deployment by network operators, service providers and enterprise customers requiring stable subscriber connections

Key specifications

• Frequency range: 698–3800 MHz
• Gain: 2–5 dBi (dependent on frequency)
• Configuration: 2x2 MIMO, two separately fed ultra-wideband elements
• Connectors/cable: Integral twinned CS29 coaxial cable, 5 m length, SMA plug connectors
• Mounting: Wall or mast mount (hardware included); desk stand included
• Environmental rating: Weatherproof housing (IP65)
• Dimensions: Height 155 mm (manufacturer data)

How to use

Mount the antenna on a wall or mast using the supplied hardware or place it on the included desk stand near a window for improved reception. Connect each SMA plug to the corresponding modem or router antenna input. Position the antenna to maximise signal strength while keeping cables routed to minimise loss; if longer cable runs are required, consider the alternative N-connector variant with a short pigtail and a low-loss coaxial extension.

Recommendations

For best performance in urban and metro areas, mount the antenna as high as practical and orient it toward the nearest base station. Use the included SMA-equipped 5 m cable for typical short installations; for longer runs, use the WMMG-7-38-03NJ variant with N connectors and a low-loss extension cable to reduce signal loss.
