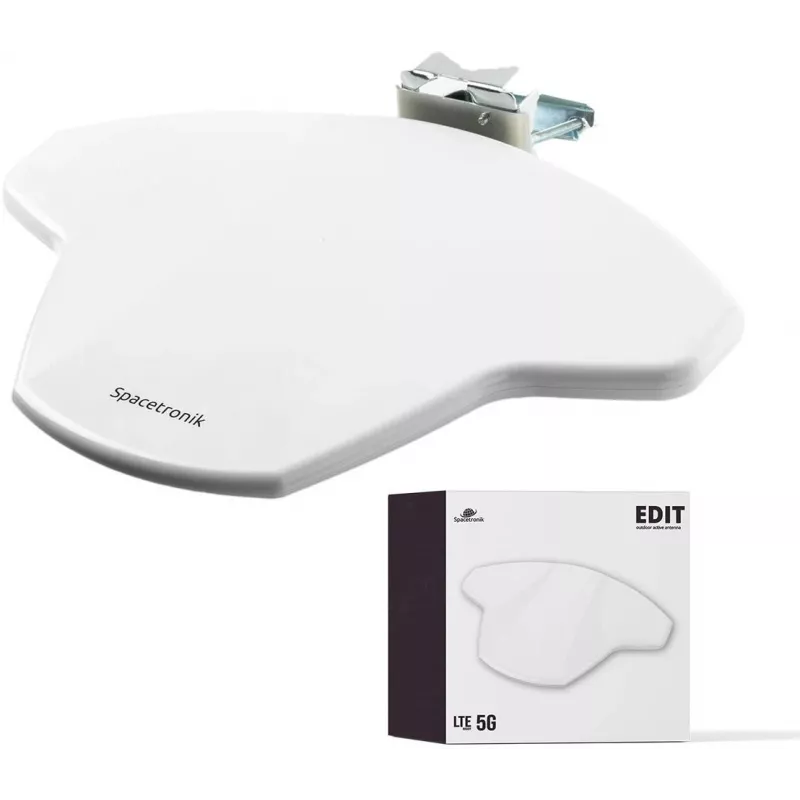

Antena DVB-T2 EDIT LTE 5G Spacetronik para autocaravana, hogar

The Spacetronik DVB-T2 EDIT LTE 5G Antenna is a high-performance active panel antenna designed for reliable digital terrestrial television reception in camper vans, caravans, and homes. With an integrated LTE/5G filter and low-noise amplifier, it ensures clear DVB-T2/HDTV signals while minimizing interference from mobile networks.

Advantages

This antenna combines a compact, UV-resistant ABS housing with versatile mounting options (wall, mast, or suction cup) for indoor and outdoor use. The built-in amplifier delivers 28-30 dBi gain, and the LTE/5G filter up to 694 MHz protects against cellular interference. Low power consumption (<100 mA) makes it ideal for mobile applications.

Suitable for

• Camper vans and caravans
• Home use with DVB-T2 receivers
• Outdoor and indoor installations
• Mobile TV reception on the go

Key specifications

• Antenna Type: Active DVB-T2 Panel Antenna
• Frequency Range: 47-694 MHz (UHF)
• Gain: 28-30 dBi (with amplifier)
• Built-in Filter: LTE/5G (up to 694 MHz)
• Noise Figure: < 2.5 dB
• Output Impedance: 75 Ohm
• Connector Type: F-type
• Power Supply: 5V DC (via USB or DVB-T2 receiver)
• Polarization: Horizontal and Vertical
• Material: UV-resistant ABS Plastic

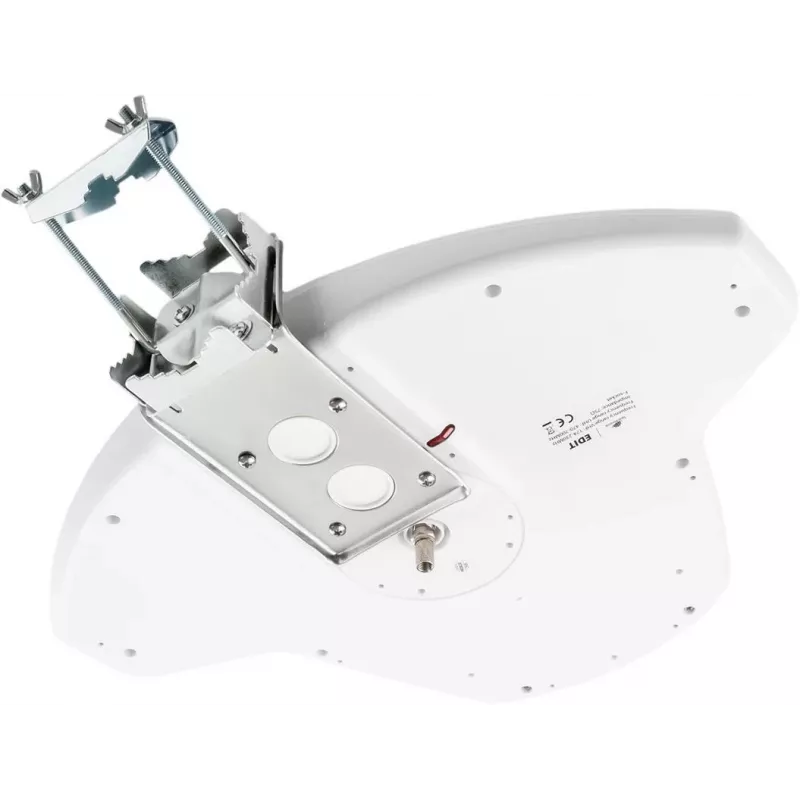

• Mounting Options: Wall mount, Mast clamp, Suction cup
• Amplifier: Integrated Low-Noise Amplifier (LNA)
• Weather Resistance: Yes
• Power Consumption: < 100 mA

Recommendations

For optimal performance, mount the antenna outdoors with a clear line of sight to the broadcast tower. Use a quality 75-ohm coaxial cable and ensure the power supply (5V DC) is connected via the receiver or USB. This antenna is compatible with all DVB-T and DVB-T2 standards.
