Antena Navilock NL-69AT FAKRA C 27 dBi

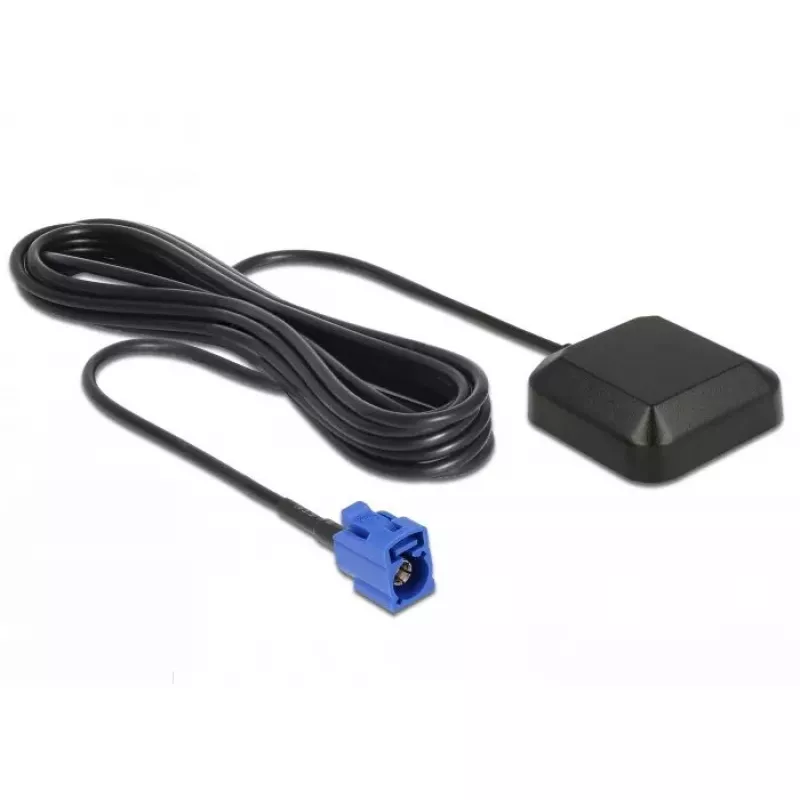

The Navilock NL-69AT FAKRA C 27 dBi is a compact GNSS antenna designed for use with GNSS receivers, car radios or vehicle multimedia receivers that have a FAKRA C connection. It covers the GNSS frequency of 1575.42 MHz, offers a high gain of 27 dBi and is supplied with a 3 m cable. The antenna has IP67 protection for temporary outdoor use and operates from a DC input voltage of 3–5.5 V with a current consumption of 15 mA.

Advantages

The antenna provides a high gain (27 dBi) for improved satellite reception and a FAKRA C connector for direct connection to compatible vehicle equipment. Its IP67 rating ensures resistance to water and dust for short-term outdoor exposure, while the compact dimensions and 3 m cable simplify installation in automotive and mobile setups. Low current consumption (15 mA) allows efficient operation from typical vehicle DC sources.

Suitable for

• Integration with GNSS receivers that accept FAKRA C connections
• Connection to car radios or vehicle multimedia units with FAKRA C
• Temporary outdoor mounting on vehicles or mobile installations
• Applications requiring a compact, high-gain GNSS antenna

Key specifications

• Frequency band: 1575.42 MHz

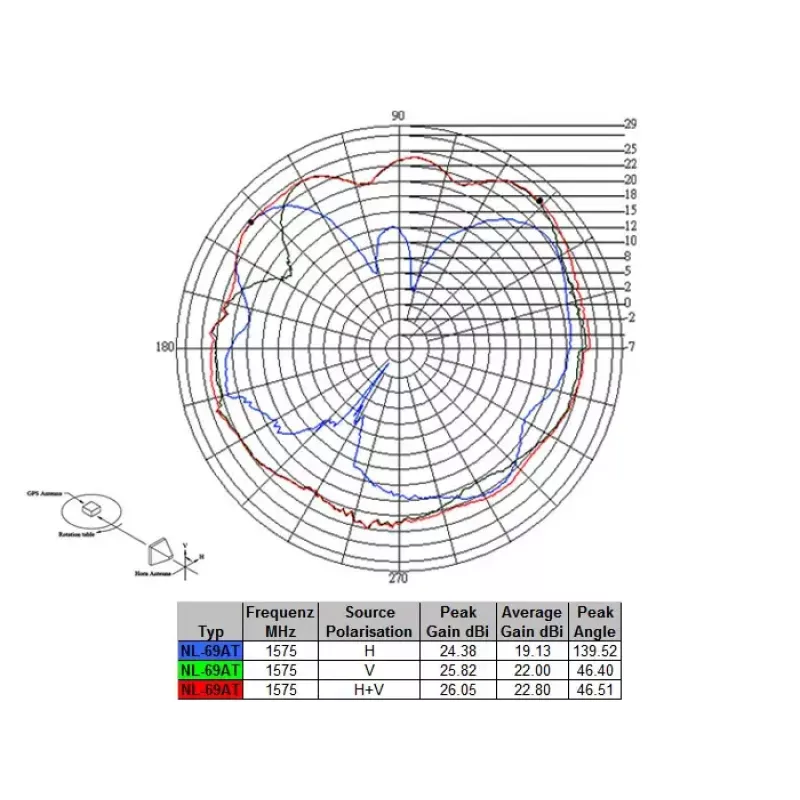

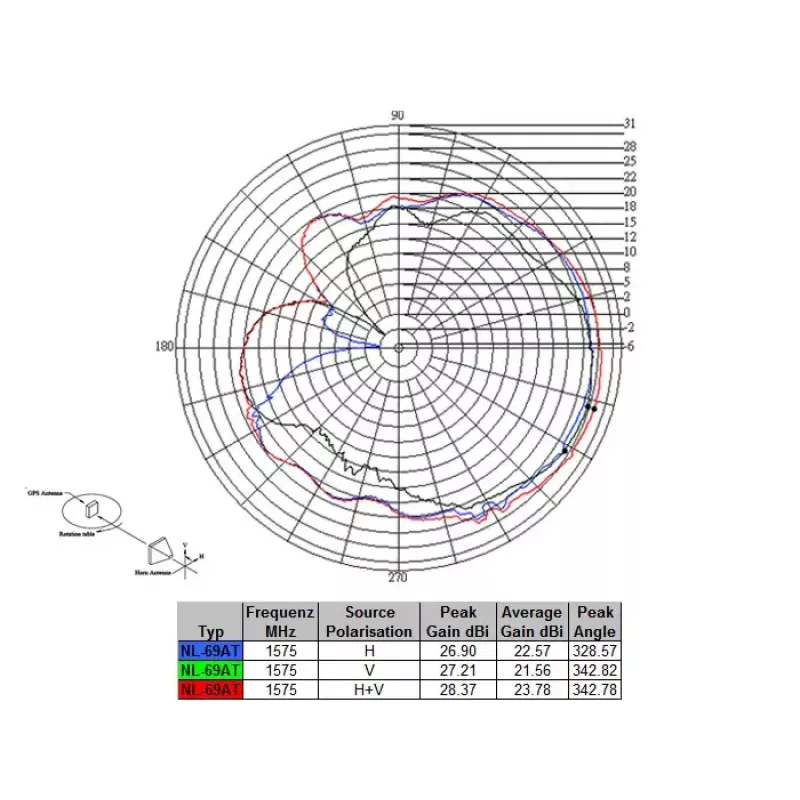

• Antenna gain (max): 27 dBi
• Connector: FAKRA C
• Cable length: 3 m
• Protection class: IP67
• Input voltage: 3–5.5 V DC
• Current consumption: 15 mA
• Colour: Black
• Dimensions: 38 mm × 40.5 mm × 12 mm
• Weight: 0.15 kg

How to use

Connect the Navilock NL-69AT antenna to the device's FAKRA C socket and route the 3 m cable to a suitable mounting point. Ensure the device provides the required 3–5.5 V DC supply if the antenna requires power through the connector. Position the antenna to have an unobstructed view of the sky for optimal GNSS reception and secure it according to vehicle mounting requirements. The IP67 rating allows temporary external placement, but prolonged exposure to harsh conditions should be avoided.

Recommendations

For best performance, mount the antenna where it has a clear view of the sky and away from large metal obstructions. Verify compatibility with the receiving device’s FAKRA C interface and confirm the device supplies the required DC voltage if powering the antenna through the connector.
