Antena parabólica Televes S760CL-Z

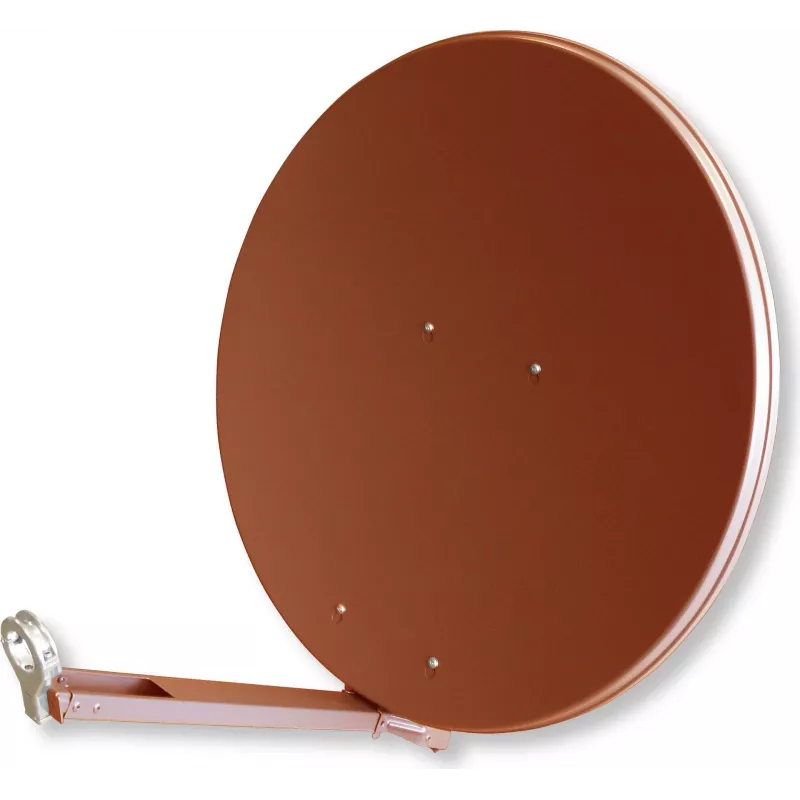

The Televes S760CL-Z satellite antenna is a parabolic dish designed for receiving KU-band satellite signals in the 10.75–12.75 GHz range. With a maximum gain of 38.2 dBi and a noise figure specification of 26 dB, this red-coloured antenna is sized for residential and small commercial installations where stable reception and clear signal levels are required. Its physical dimensions of 750 mm width and 800 mm height and a mass of 7.05 kg make it compact enough for wall- or mast-mounting while remaining robust for outdoor exposure.

Advantages

The antenna provides a high directive gain that improves signal strength from KU-band satellites and helps reduce the effects of interference and multipath. Its moderate weight and compact footprint simplify handling and installation compared with larger dishes. The red finish offers a distinctive appearance that can blend with or accent exterior installations without affecting performance. Constructed for outdoor use, the unit supports stable long-term reception when installed according to standard mounting practices.

Suitable for

• Residential satellite TV reception using KU-band transponders
• Small commercial or communal installations where a compact, high-gain dish is required
• Replacement of similarly sized dishes for improved signal level and reliability

Key specifications

• Frequency range: 10.75–12.75 GHz (KU-band receive)
• Maximum gain: 38.2 dBi
• Noise figure: 26 dB
• Dimensions (approx.): 750 mm (width) × 800 mm (height)
• Weight: 7.05 kg
• Finish: red outdoor coating

How to use

Mount the Televes S760CL-Z on a suitably rated mast or wall bracket in a location with clear line of sight to the target satellite arc. Align azimuth and elevation using a satellite finder or signal meter while monitoring the receiver’s signal quality. Secure all fasteners and weatherproof cable connections. Connect the antenna feed to a compatible LNB and then to the satellite receiver via coaxial cable. After initial alignment, perform fine tuning for maximum signal-to-noise ratio and lock the mount in place.

Recommendations

For best results, choose an installation site free from obstructions (trees, buildings) toward the satellite, use quality coaxial cable and connectors, and ensure the mounting structure is rigid and properly grounded. Periodic inspections of the dish and connections will help maintain consistent reception.
