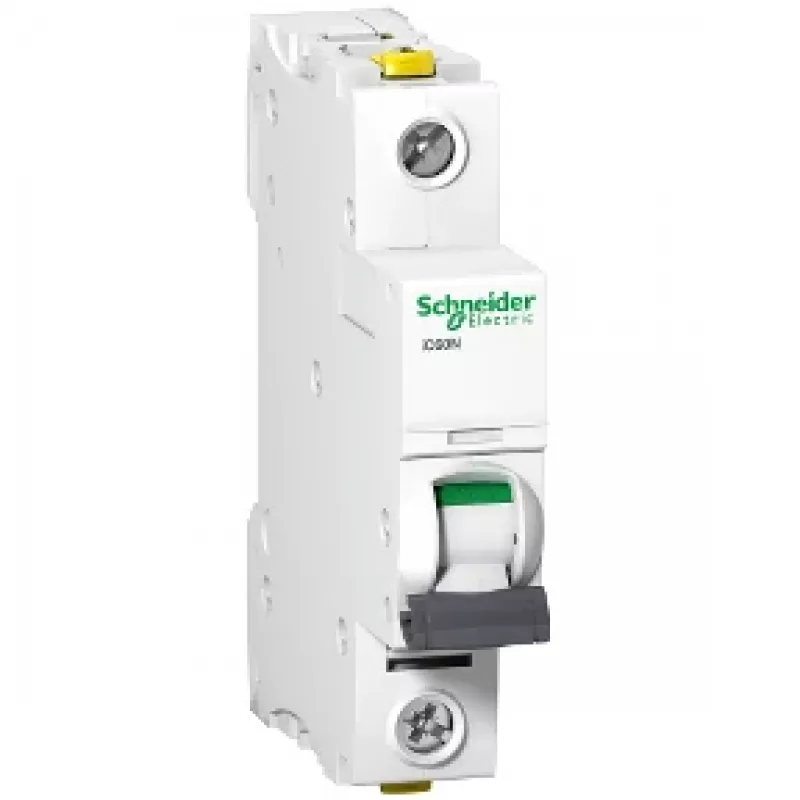

APC A9F03113 interruptor automático - 10 kA - IP20

The APC A9F03113 is a high-quality miniature circuit breaker (MCB) from the Acti9 iC60N series, designed to protect electrical circuits against overloads and short circuits. With a rated current of 13 A and a breaking capacity of 10 kA, it ensures reliable performance in residential, commercial, and industrial applications. This single-pole MCB features a C tripping curve, making it suitable for general-purpose loads.

Advantages

Compact design with 2 modules width (18 mm) for easy installation on DIN rails. High breaking capacity ensures safety under fault conditions. Complies with international standards EN/IEC 60898-1 and EN/IEC 60947-2. Wide operating temperature range from -35 to 70 °C.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control cabinets
• Lighting and socket outlet circuits

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Range: Acti9
• Series: iC60N
• Number of Poles: 1P
• Rated Current (In): 13 A
• Tripping Curve: C
• Breaking Capacity (Icn): 10 kA at 230 V AC
• Rated Operational Voltage (Ue): 230 V AC
• Rated Insulation Voltage (Ui): 500 V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Network Type: AC
• Mounting Mode: Clip-on on DIN rail
• Width in 9mm Pitches: 2
• IP Degree of Protection: IP20
• Pollution Degree: 3
• Operating Temperature: -35 to 70 °C
• Standards: EN/IEC 60898-1, EN/IEC 60947-2

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician and that the circuit parameters match the rated values. This device is suitable for use in distribution boards with proper ventilation.
