Marco de puerto Schneider Electric AP, 3 tomas, 133×326 mm, modelo 1883320

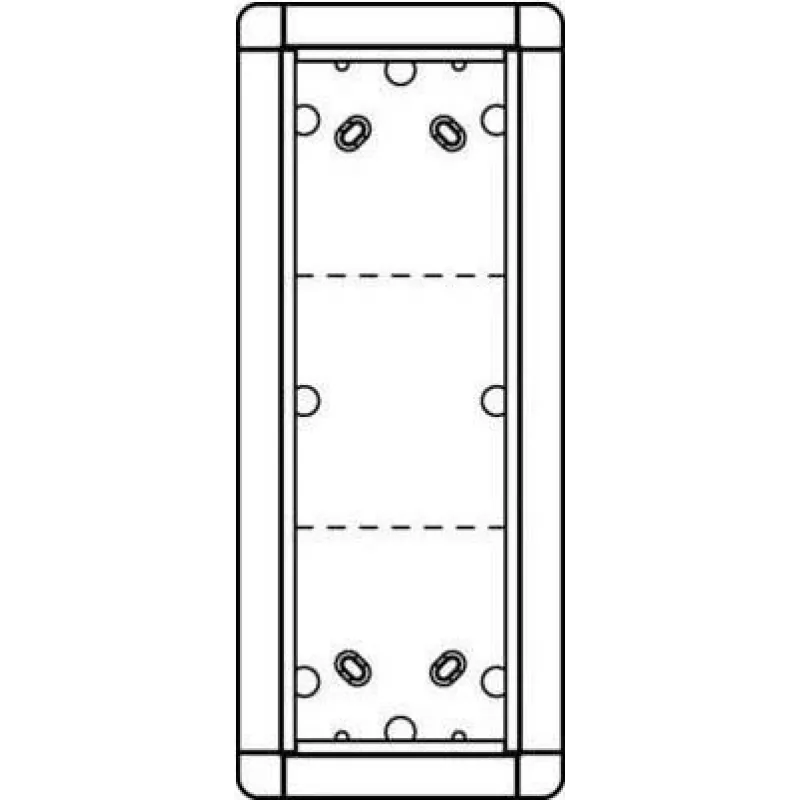

Schneider Electric port frame AP, 3-gang, 133×326 mm (model 1883320) is a trim frame designed for surface (AP) mounting to hold three adjacent modules or ports in a single finished opening. Its dimensions of 133 × 326 mm provide a compact, rectangular bezel for network outlets, data connectors, communication modules or combination sockets, delivering a neat visible edge for wall- or panel-mounted installations in residential and commercial environments. The frame is compatible with standard AP mounting workflows used in structured cabling and interior wiring tasks.

Advantages

The AP port frame offers a consistent external appearance for multiple adjacent ports and simplifies installation by accommodating three modules within one frame. Its rigid construction ensures stable mounting and alignment of connectors, while the defined outer dimensions reduce the need for additional trim work. The frame facilitates tidy cable outlet presentation and helps maintain a professional finish for surface-mounted installations.

Suitable for

Key specifications

How to use

Position the frame over the prepared surface-mount box or directly on the wall/panel where three modules will be installed. Fit the modules or outlet inserts into the mounting support or box according to their own installation instructions, then align the frame so that each module sits correctly within its aperture. Secure the frame to the mounting surface using the recommended fasteners, ensuring even pressure and flush fit to avoid gaps. Verify connector alignment and accessibility after installation.

Recommendations

For best results use this AP 3-gang frame together with compatible Schneider Electric modules and surface-mount boxes. Ensure cutouts and mounting points match the frame dimensions to achieve a flush, secure installation. Follow local electrical and cabling standards during installation.
