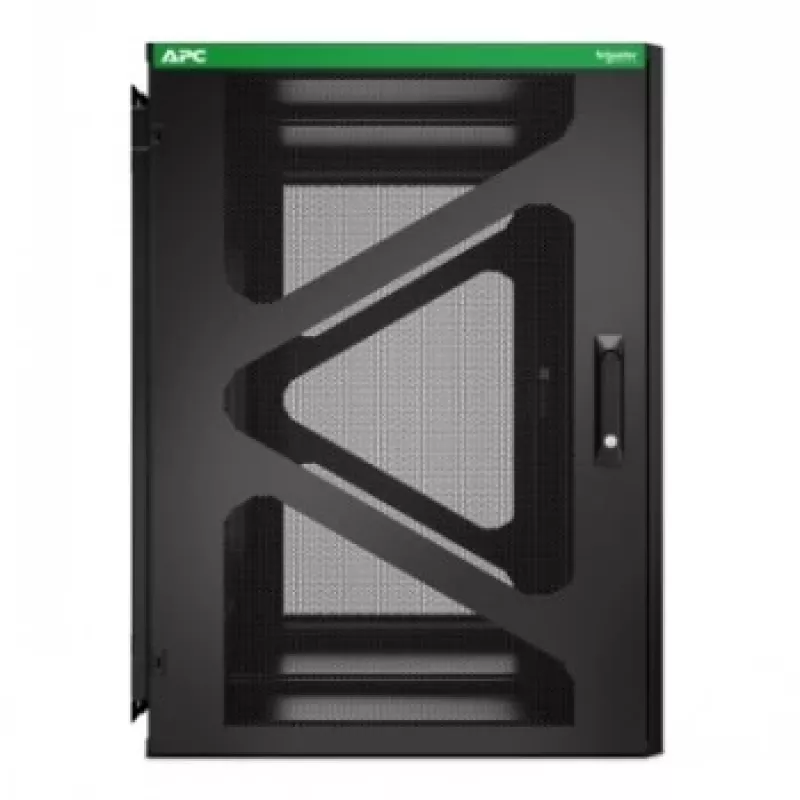

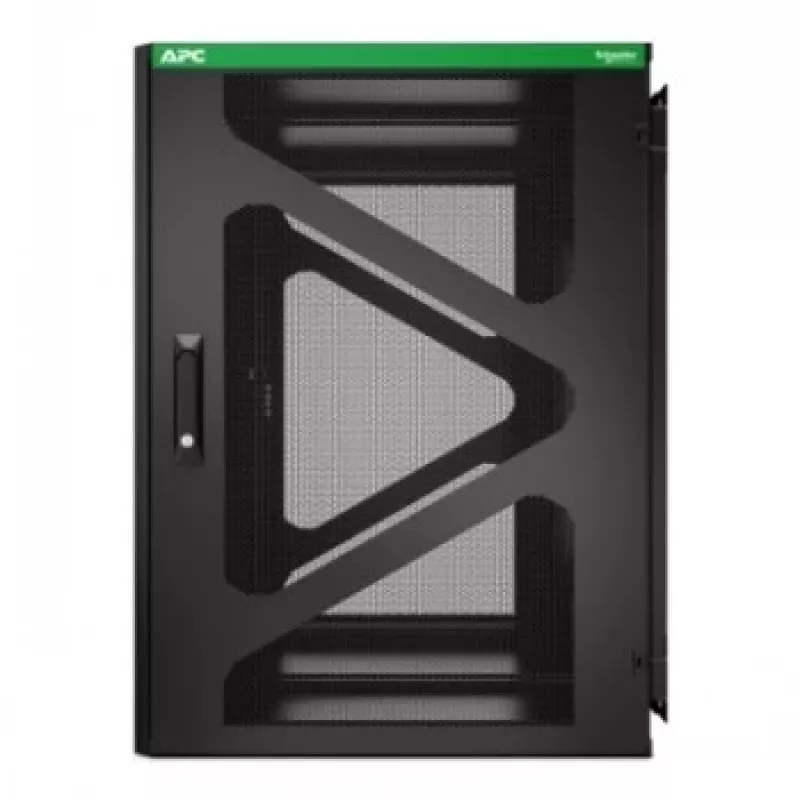

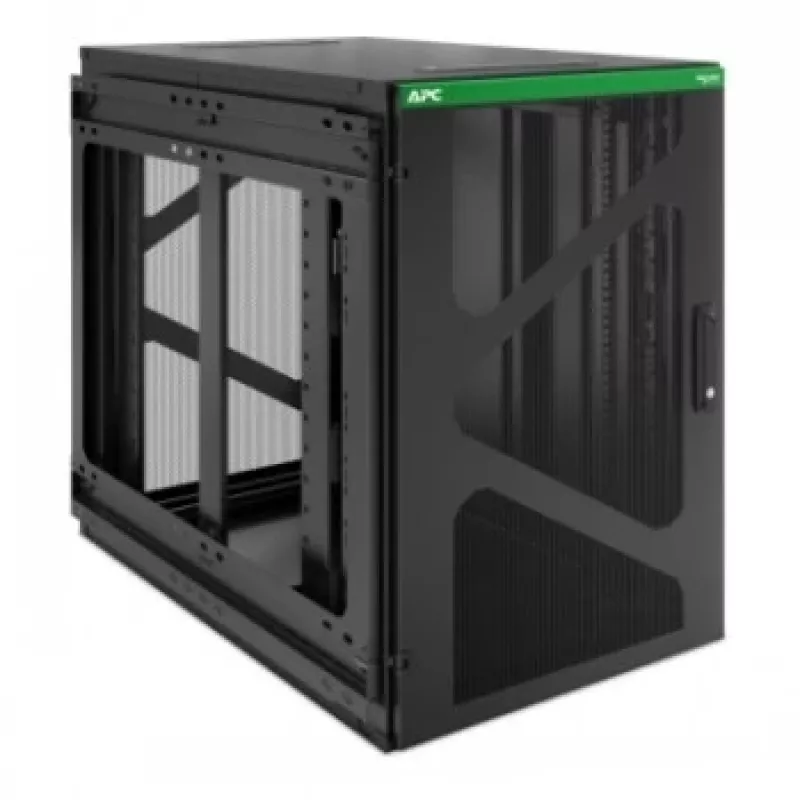

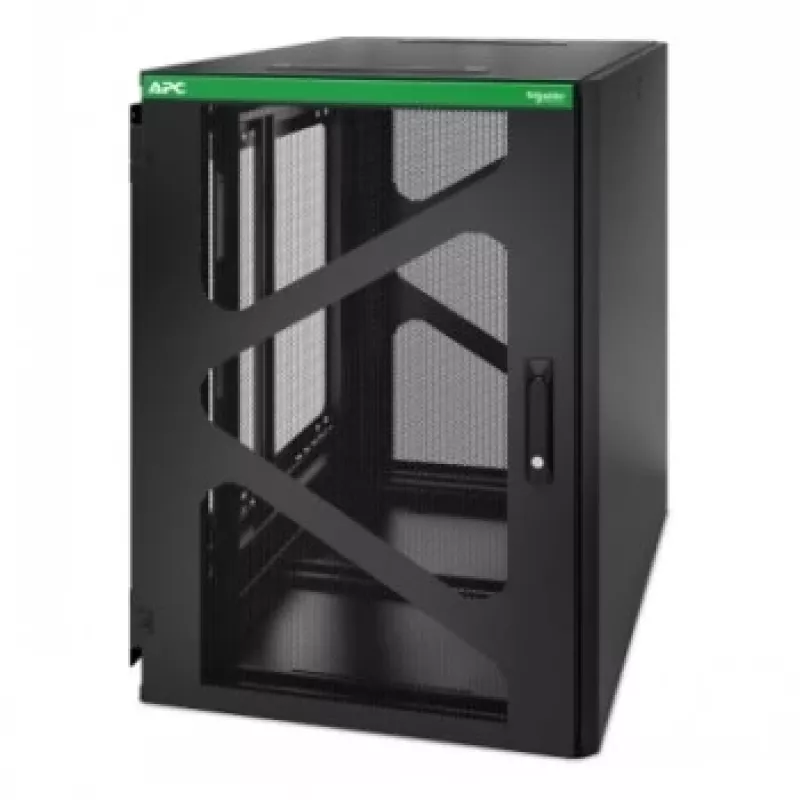

APC NetShelter armario rack de pared 18U - ancho 19", profundidad 520 mm, negro

The APC NetShelter 18U Wall-Mount Rack Enclosure Cabinet is a robust and secure solution for mounting network equipment in space-constrained environments. Designed for wall mounting, this 18U cabinet offers a 19" rack width and a usable mounting depth of 520 mm, accommodating a variety of IT equipment including servers, switches, and patch panels. Its enclosed steel construction with perforated front door ensures optimal airflow and passive cooling, while the lockable front door and side panels provide security against unauthorized access. The cabinet is compatible with side-mounting of APC Smart-UPS units, making it an ideal choice for edge computing and network closets.

Advantages

Space-saving wall-mount design frees up floor space, while the 18U capacity supports substantial equipment in a compact footprint. The perforated front door promotes efficient cooling, and the lockable features enhance security. Adjustable mounting rails allow flexible equipment installation, and the cabinet is fan-ready for active cooling if needed.

Suitable for

• Network closets and server rooms with limited floor space
• Edge computing deployments requiring local equipment housing
• Retail, education, and office environments needing secure equipment storage
• Side-mounting APC Smart-UPS uninterruptible power supplies

Key specifications

• Rack Capacity: 18U
• Mounting Type: Wall-Mount
• Enclosure Type: Enclosed Cabinet
• Color: Black
• Material: Steel
• Front Door Type: Perforated (Vented)
• Rear Door Type: Solid (Removable Panel)
• Side Panels: Removable
• Usable Mounting Depth: 520 mm
• Static Weight Capacity: 90.72 kg (200 lbs)
• Cable Entry: Top and Bottom
• Cooling: Passive ventilation, fan ready (optional fan tray)
• Security: Lockable front door and side panels
• UPS Compatibility: Designed for side-mounting of APC Smart-UPS units
• Rack Type: Square mounting holes
• Adjustable Mounting Rails: Yes, front and rear
• IP Protection Rating: IP20
• Shipping Weight: 48.64 kg
• Shipping Dimensions (H x W x D): 1067 x 762 x 762 mm
• Included Accessories: Key(s), Mounting hardware, User manual

Recommendations

For optimal performance, ensure the cabinet is mounted on a sturdy wall capable of supporting the total weight of the cabinet and installed equipment. Use the included mounting hardware and follow the user manual for proper installation. Consider adding an optional fan tray for environments with high heat loads.
