APC NetShelter WX AR112, 12U, armario de parcheo de 19 pulgadas, montaje en pared, sin montar, 600 mm de profundidad

Product description

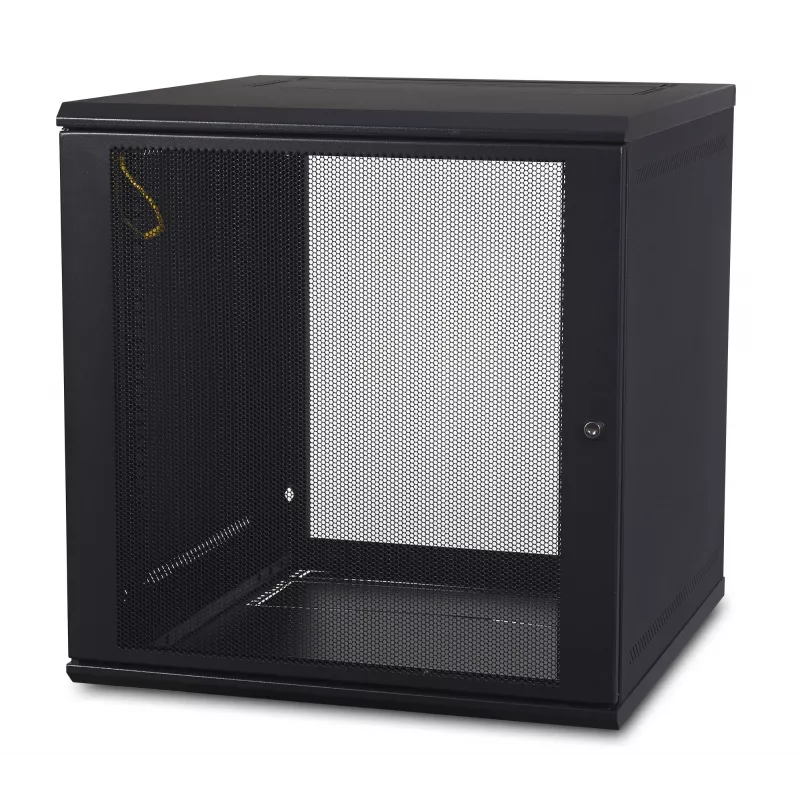

This compact lockable rack is suitable for all kinds of 19 inch IT/network equipment. With 12U internal height and 2 adjustable rack mount styles, you can easily mount rack-mountable devices (max 528mm deep). Due to its limited dimensions and weight (18.3KG), it is easy to mount on the wall. Because the door can be mounted both right and left opening, it fits in almost any environment.

Easy transport
This APC patch cabinet is delivered unassembled, making this rack easy to transport and store.

Placement

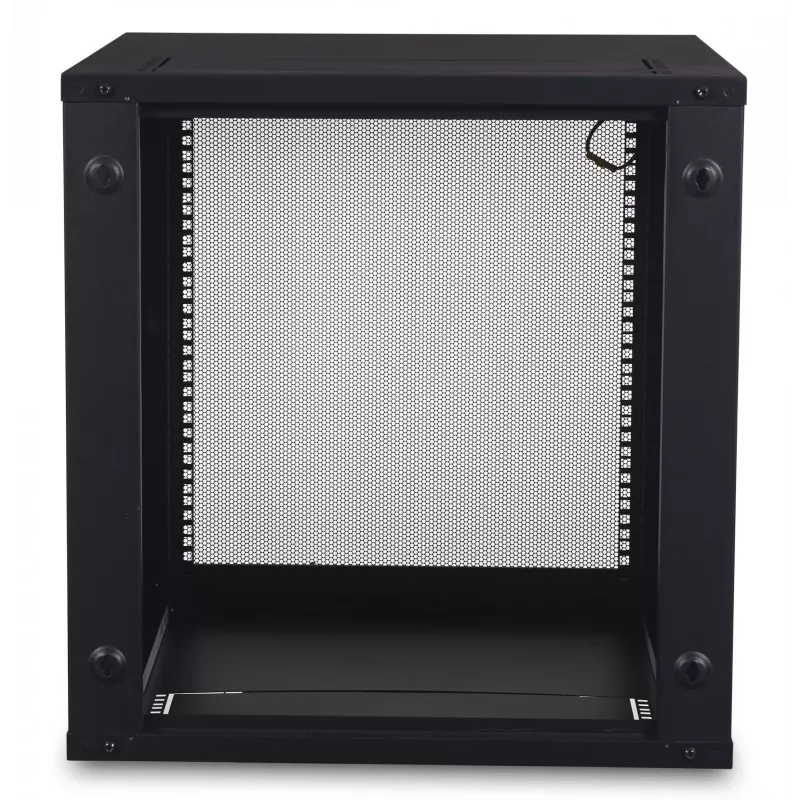

This rack can be mounted on the wall as a patch, edge or network cabinet using 4 recesses at the rear (suitable for up to max m6 bolts). However, because its door is free from the ground, this server rack can also be placed upright. This makes it suitable for many environments. Installation materials for wall mounting are not included.

Cable and accessory integration

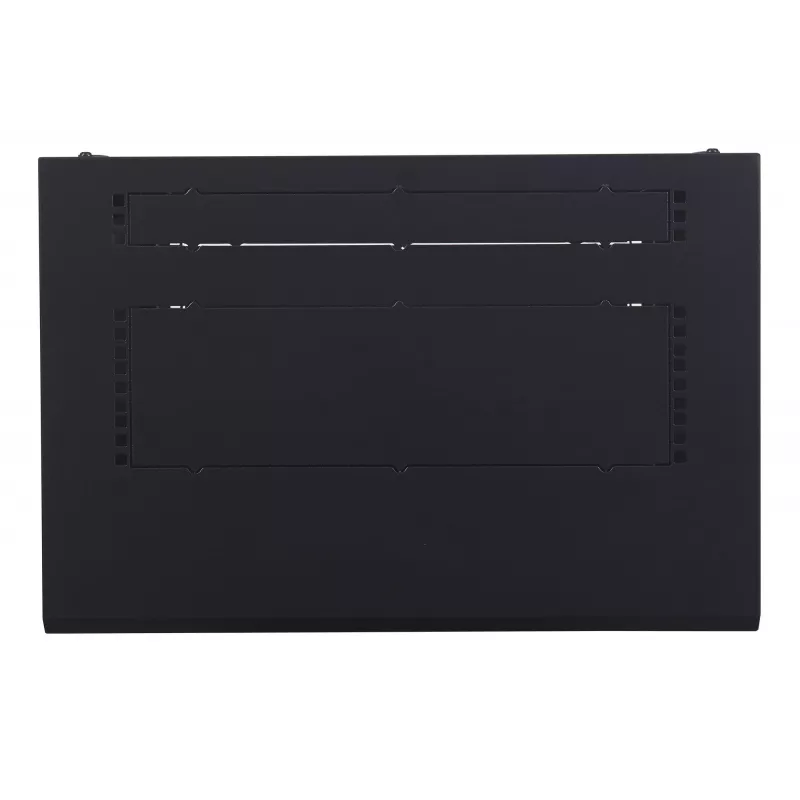

The bottom and roof of this patch cabinet are pre-treated, see photo top, so that they can be easily adjusted and thus made suitable as a cable outlet or for installing a patch panel (AR8452).

Easy assembly
This wall-mounted server rack is designed for quick and easy assembly and all necessary materials and tools for assembly except a spirit level are included, see manual. A template for wall mounting is also included.

Multiple sizes
The unassembled black NetShelter WX wall enclosures are available in three heights, 6U (AR106), 9U (AR109) and 12U (AR112). All 3 can handle a maximum static load of 90.7KG.

Rackmount styles

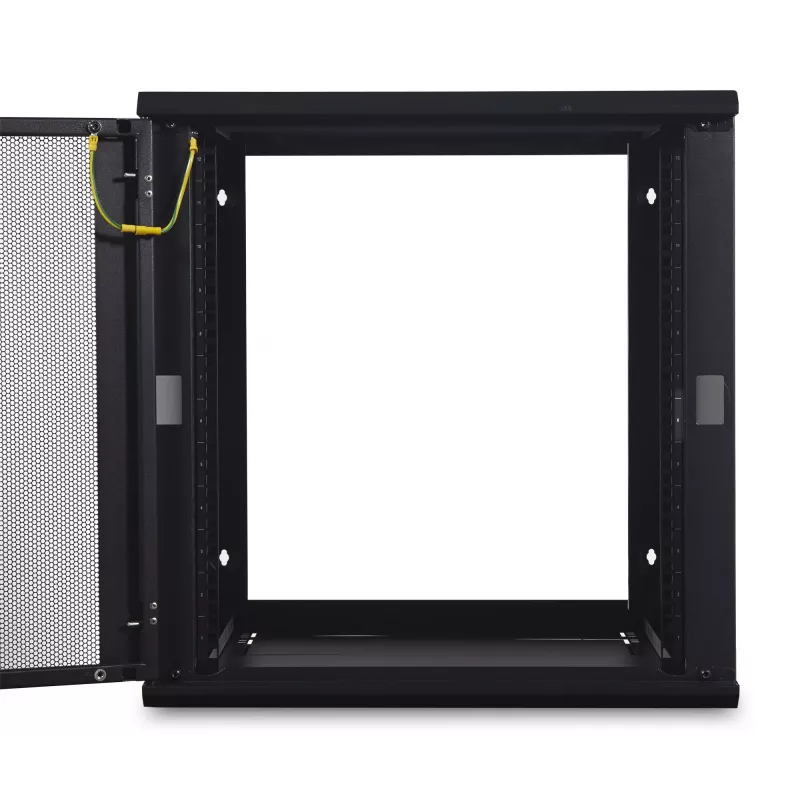

The 2 rackmount styles can be mounted in 6 positions in the rack and at each position it is possible to fine-tune the exact position up to 23 mm, see documentation.

Safety
Mounted network equipment in the rack is safe, because the door at the front is equipped with a lock. 2 keys are included.

Warranty
The standard factory warranty is 5 years.


Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 12U Wall mount cabinet, 16.8 to 20.8 inches mounting depth, 200lb weight capacity, 19 rack width, ships unassembled, 5 year APC warranty

How to use

Locate a suitable wall with adequate strength and clearances for the cabinet and equipment. Use the supplied template to mark the four mounting points on the wall corresponding to the key‑hole slots, which are spaced 16" (406 mm) apart. Secure the rack to the wall using appropriate anchors or fasteners for the wall material, then install network devices and cable them according to your site plan. Ensure the total mounted equipment weight does not exceed 90.7 kg and that airflow and access requirements are met.

Recommendations

Verify wall structure and use suitable anchors for the wall type (concrete, brick, or stud) to ensure safe mounting. Distribute equipment weight evenly within the 12U space and reserve heavier items for lower rack positions to maintain stability.
