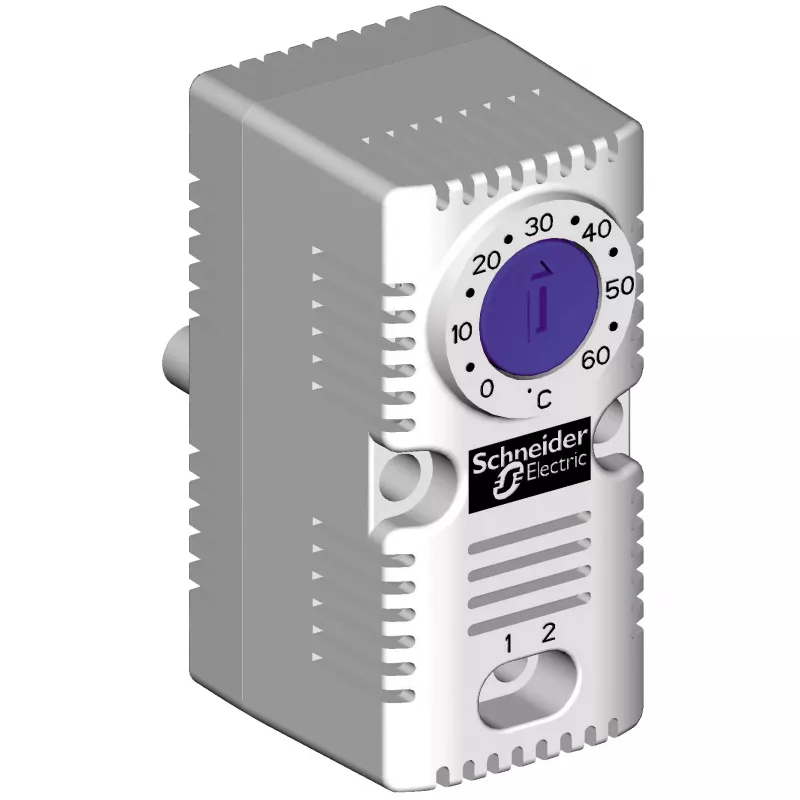

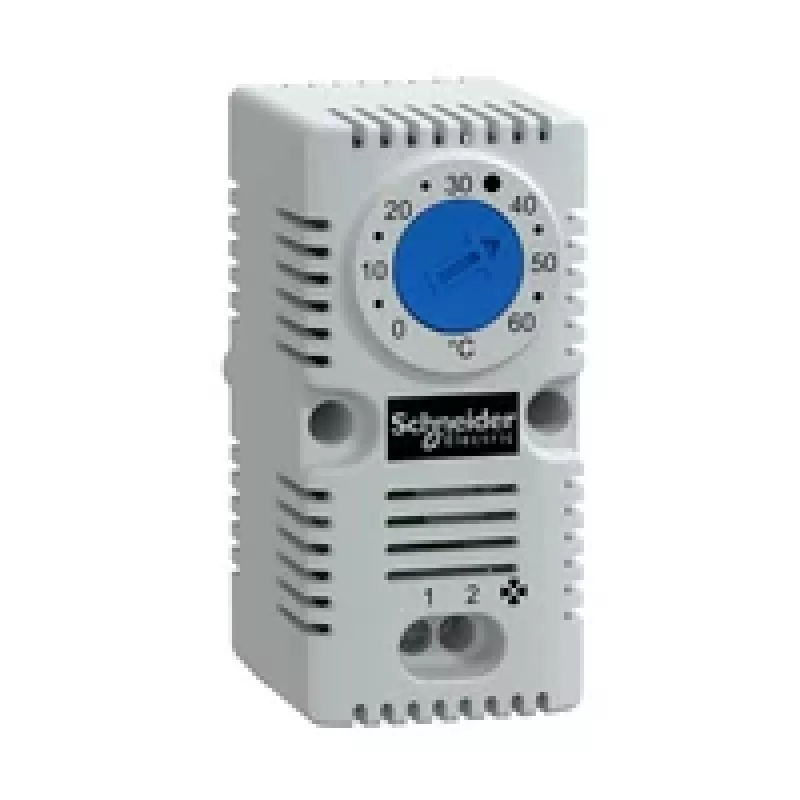

APC NSYCCOTHO termostato para armarios eléctricos, NC, 0-60°C, carril DIN, gris

The APC NSYCCOTHO is a reliable thermostat designed for temperature control within rack enclosures. It ensures optimal operating conditions by switching cooling or heating devices on or off based on the ambient temperature. This accessory is essential for maintaining the performance and longevity of sensitive electronic equipment.

Advantages

Precise temperature regulation with a normally closed (NC) contact ensures fail-safe operation. Easy DIN rail mounting and screw clamp terminals simplify installation. The robust plastic housing with IP20 protection is suitable for indoor use.

Suitable for

• Rack enclosures requiring temperature monitoring and control
• Industrial control cabinets
• Telecommunication and data center environments

Key specifications

• Product Type: Thermostat
• Contact Type: Normally Closed (NC)
• Temperature Setting Range: 0 - 60 °C
• Switching Capacity: 250 V AC, 10 A (resistive) / 120 V AC, 15 A (resistive)
• Mounting Type: 35 mm DIN rail
• Connection Type: Screw clamp terminals
• Max Cable Cross Section: 2.5 mm²
• Material: Plastic
• Color: Grey (RAL 7035)
• IP Protection Rating: IP20
• Operating Temperature: -20 - 80 °C
• Storage Temperature: -45 - 80 °C
• Relative Humidity: 0 - 95 % (non-condensing)
• Certifications: UL, EAC, CUL

Recommendations

For optimal performance, install the thermostat in a location that represents the average temperature inside the enclosure. Ensure proper wiring and adhere to local electrical codes.
