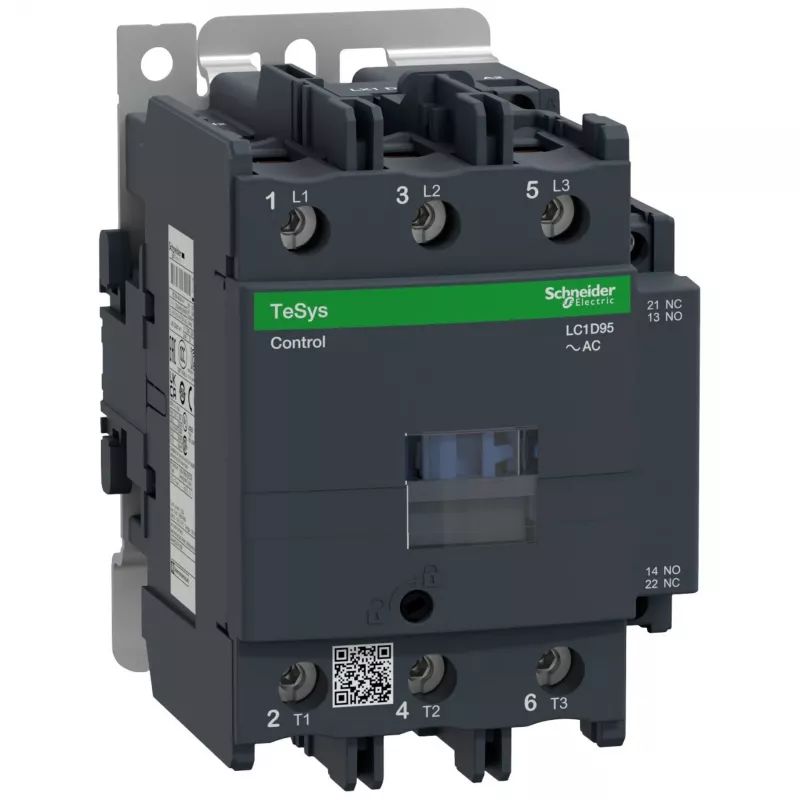

APC Schneider Electric Contactor TeSys D LC1D95P7, 3 polos, 95 A, 230 V AC, 1 NA + 1 NC contactos auxiliares

The APC Schneider Electric LC1D95P7 is a high-performance motor contactor from the TeSys D series, designed for reliable switching and control of motors and other electrical loads. With a rated operational current of 95 A in AC-3 category and a control circuit voltage of 230 V AC, this 3-pole contactor is ideal for industrial applications requiring robust and durable performance.

Advantages

This contactor offers exceptional electrical and mechanical durability, with 1.2 million electrical cycles and 8 million mechanical cycles. Its compact design allows for easy mounting on DIN rail or plate, and the built-in auxiliary contacts (1 NO + 1 NC) provide flexibility for control circuits. The screw clamp terminals ensure secure and reliable connections.

Suitable for

• Motor starting and switching in industrial machinery
• Lighting and heating control systems
• Pump, fan, and compressor applications
• Automation and process control panels

Key specifications

• Product Series: TeSys D
• Contactor Type: Motor Contactor
• Number of Poles: 3P
• Power Pole Contact Composition: 3 NO
• Rated Operational Current (AC-3): 95 A at ≤ 440 V AC
• Rated Operational Voltage: Power circuit ≤ 690 V AC 50/60 Hz
• Control Circuit Voltage: 230 V AC 50/60 Hz
• Motor Power (AC-3, 400V): 25 kW
• Auxiliary Contacts: 1 NO + 1 NC (Built-in)
• Mounting Support: DIN Rail, Plate
• Terminal Type: Screw Clamp Terminals
• Electrical Durability (AC-3): 1.2 Mcycles
• Mechanical Durability: 8 Mcycles
• Operating Temperature Range: -5 to 60 °C
• Degree of Protection: IP20 (Front Face)
• Standards: IEC 60947-4-1, UL 508, CSA C22.2 No 14
• Certifications: UL, CSA, CCC, GOST, DNV, RINA, GL, BV, LROS

Recommendations

For optimal performance, ensure the control circuit voltage matches your system (230 V AC). Use appropriate overload relays and short-circuit protection devices as per the manufacturer's guidelines. This contactor is suitable for a wide range of industrial environments.
