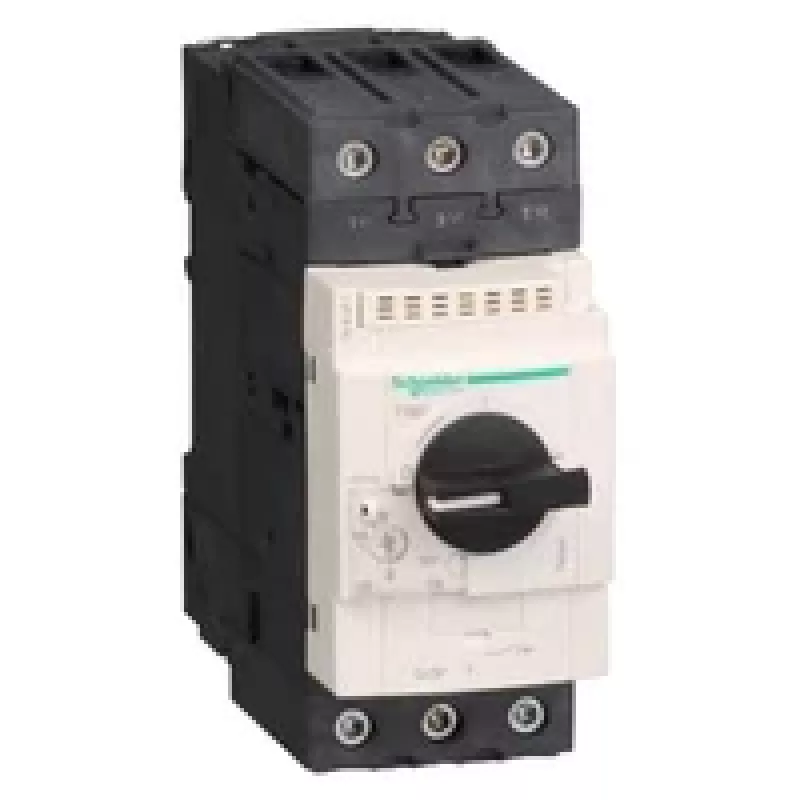

APC Schneider Electric TeSys GV3 Guardamotor, 3P, 50-73 A, térmico-magnético, IP20

The APC Schneider Electric TeSys GV3 is a high-performance motor circuit breaker designed for reliable protection of motors in industrial applications. With a thermal-magnetic tripping mechanism and adjustable thermal protection range of 50-73 A, it ensures safe operation under varying load conditions. The device features a compact IP20 enclosure, making it suitable for installation in control panels and distribution boards.

Advantages

Robust breaking capacity of 50 kA at 400/415 V AC ensures safety during short circuits. The EverLink BTR screw terminals provide secure and durable connections. Rotary knob control allows for easy manual operation and reset.

Suitable for

• Motor protection in industrial machinery
• Control panels and switchgear
• HVAC systems
• Pumps and compressors

Key specifications

• Product Type: Motor Circuit Breaker
• Range: TeSys GV3
• Poles: 3P
• Network Type: AC
• Tripping Technology: Thermal-magnetic
• Thermal Protection Adjustment Range: 50-73 A
• Magnetic Tripping Current: 1000 A
• Rated Operational Voltage (Ue): 690 V AC 50/60 Hz
• Rated Insulation Voltage (Ui): 690 V AC 50/60 Hz
• Breaking Capacity (Icu): 50 kA at 400/415 V AC 50/60 Hz (IEC 60947-2)
• Motor Power: 30 kW at 400/415 V AC 50/60 Hz, 50 hp at 460/480 V AC 50/60 Hz
• Control Type: Rotary knob
• Mounting Support: 35 mm DIN rail, Plate
• Connections - Terminals: EverLink BTR screw terminals
• Degree of Protection: IP20 (IEC 60529)
• Operating Temperature: -20 to 60 °C
• Standards: IEC 60947-2, IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1

Recommendations

For optimal performance, ensure proper coordination with upstream protection devices. Refer to the user manual for detailed installation and configuration instructions.
