APC Smart-UPS On-Line, 5kVA, torre, 230V, 6x C13+4x salidas IEC C19, tarjeta de red+SmartSlot, autonomía ampliada, sin kit de raíles

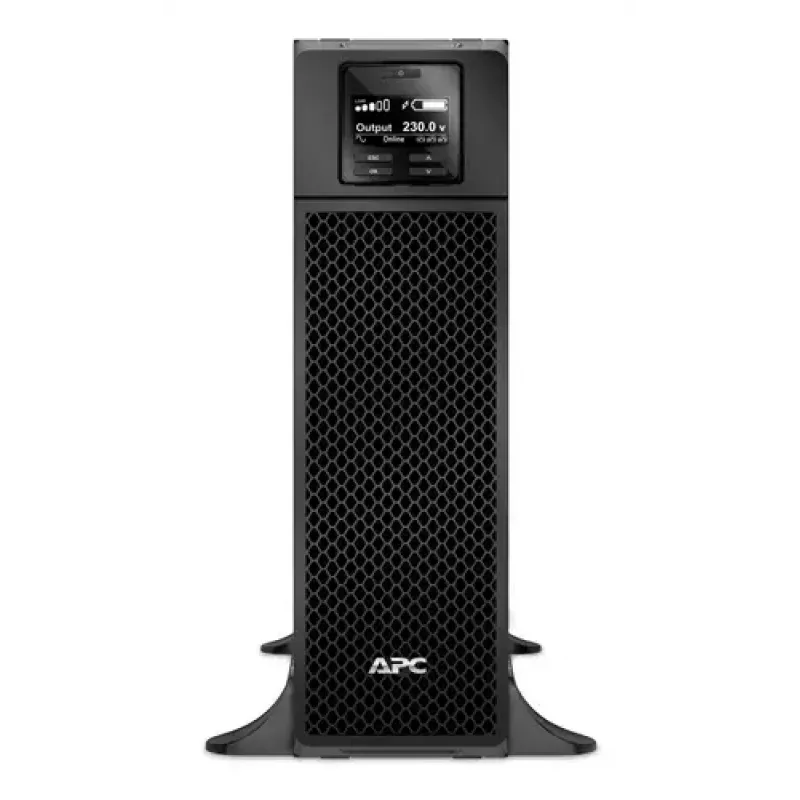

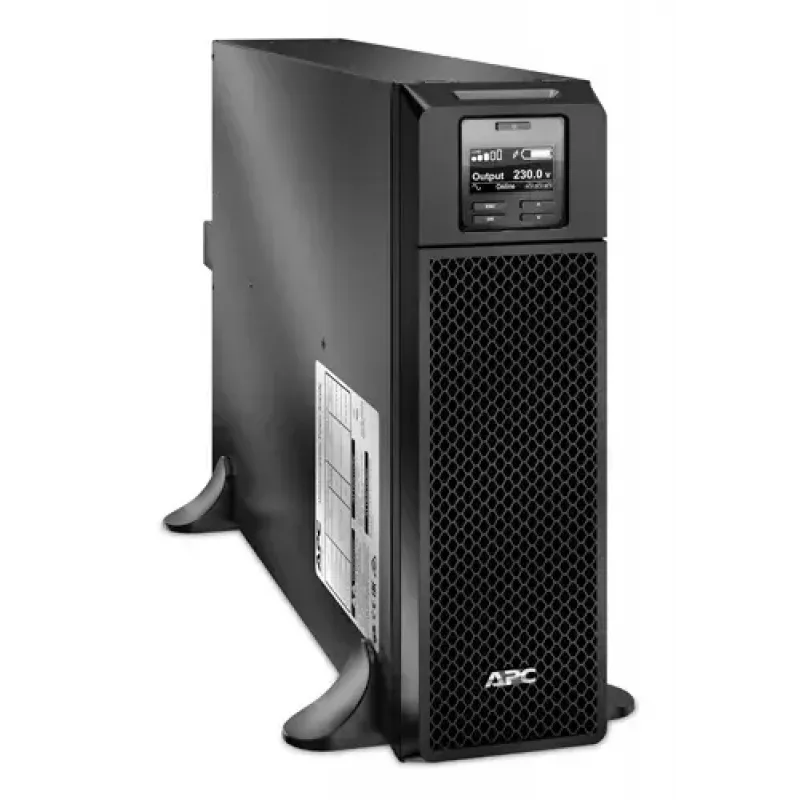

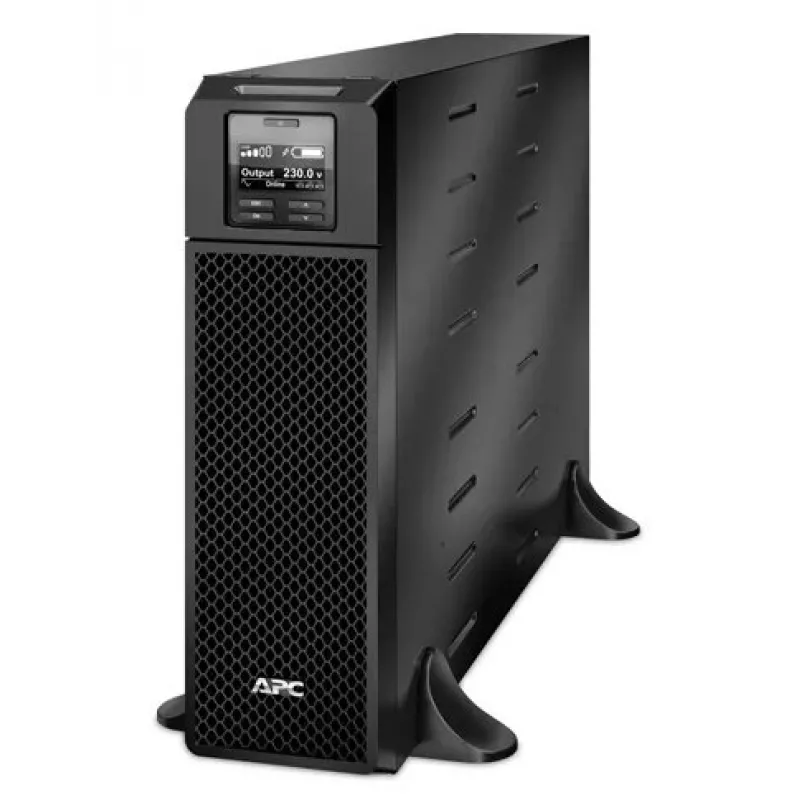

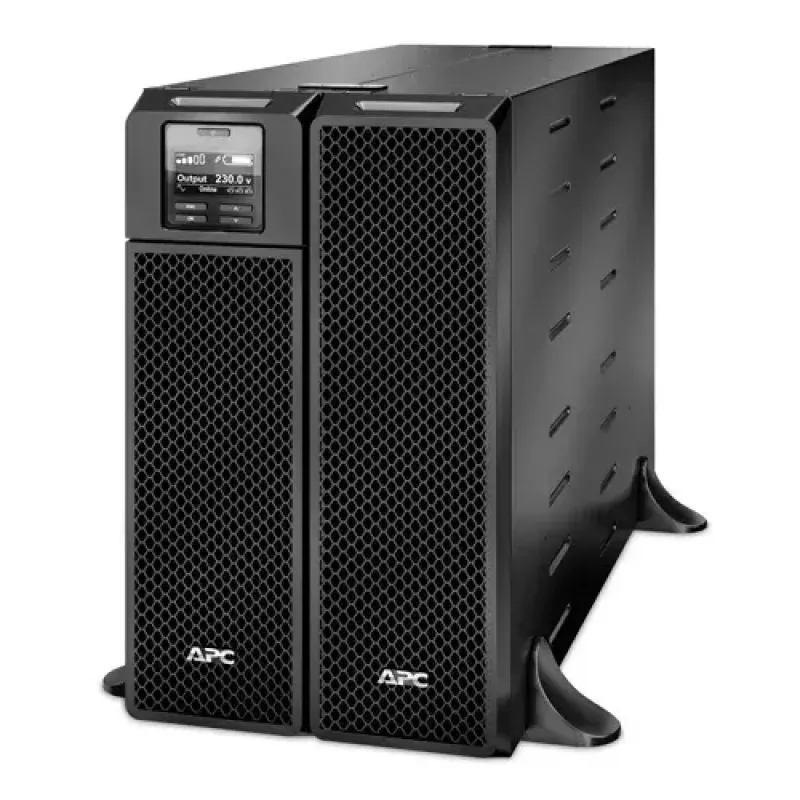

The APC Smart-UPS On-Line 5kVA Tower (SRT5KXLI) is a double-conversion on-line UPS designed for IT professionals and network administrators to maintain business continuity and protect critical electronics. This 5 kVA / 4500 W tower unit provides pure sine wave output, an extended runtime battery (845 VAh), an LCD display with LED indicators and embedded network management for remote monitoring and control. The unit includes hard-wire 3-wire (1P+N+E) input, 6 × IEC 320 C13 and 4 × IEC 320 C19 outlets, two IEC jumper cables, and a SmartSlot for optional accessory cards. It supports integration with EcoStruxure IT or third-party centralized management platforms and is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Advantages

This UPS uses double-conversion topology to deliver continuous pure sine wave power and tight output voltage regulation, protecting connected equipment from power disturbances. The embedded Network Management Card and PowerChute Network Shutdown enable network-based monitoring and graceful shutdown of physical servers, virtual machines and HCI clusters. Additional features include wide input voltage window, frequency regulation, internal bypass, input power factor correction, and a SmartSlot for optional dry contact or other accessory cards. The product includes a 3-year unit warranty and a 2-year warranty on the built-in lead-acid battery.

Suitable for

• Small to medium data centres and server rooms
• Rack or tower deployments requiring on-line double-conversion protection
• Virtualized environments and HCI clusters needing graceful shutdown
• Network closets and critical network infrastructure

Key specifications

• Model: APC Smart-UPS On-Line SRT5KXLI
• Output power capacity: 5 kVA / 4500 W
• Battery capacity: 845 VAh (extended runtime)

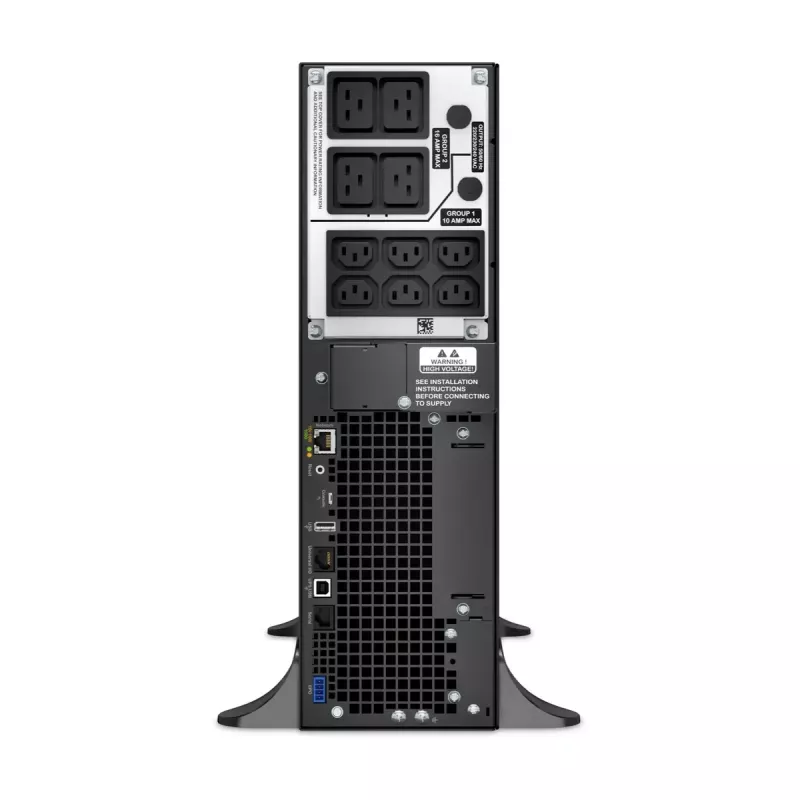

• Outlets: 6 × IEC 320 C13, 4 × IEC 320 C19
• Input: hard-wire 3-wire (1P+N+E)
• Management: Embedded Network Management Card, PowerChute Network Shutdown
• Form factor: Tower (compatible with SRTRK2 and SRTRK3 rail kits)
• Weight: 54.43 kg
• Colour: Black
• Certifications: CE, RoHS (as provided)

How to use

Install the UPS in a clean, ventilated area following the manufacturer’s installation guidelines and local electrical codes. Connect the input to the building distribution using the hard-wire 3-wire (1P+N+E) connection and attach critical loads to the IEC C13 and C19 outlets or via IEC jumper cables as required. Configure the embedded Network Management Card and install PowerChute Network Shutdown to enable orderly shutdown of servers and virtual machines. For rack mounting, use compatible SRTRK2 or SRTRK3 rail kits (sold separately). Refer to the user manual for battery connection, initial startup, and safety instructions.

Recommendations

Place the UPS on a level surface with adequate ventilation, perform regular battery health checks, and schedule periodic maintenance according to APC guidelines. Use the network management features to monitor load, runtime and temperature, and plan graceful shutdown procedures for protected systems.
