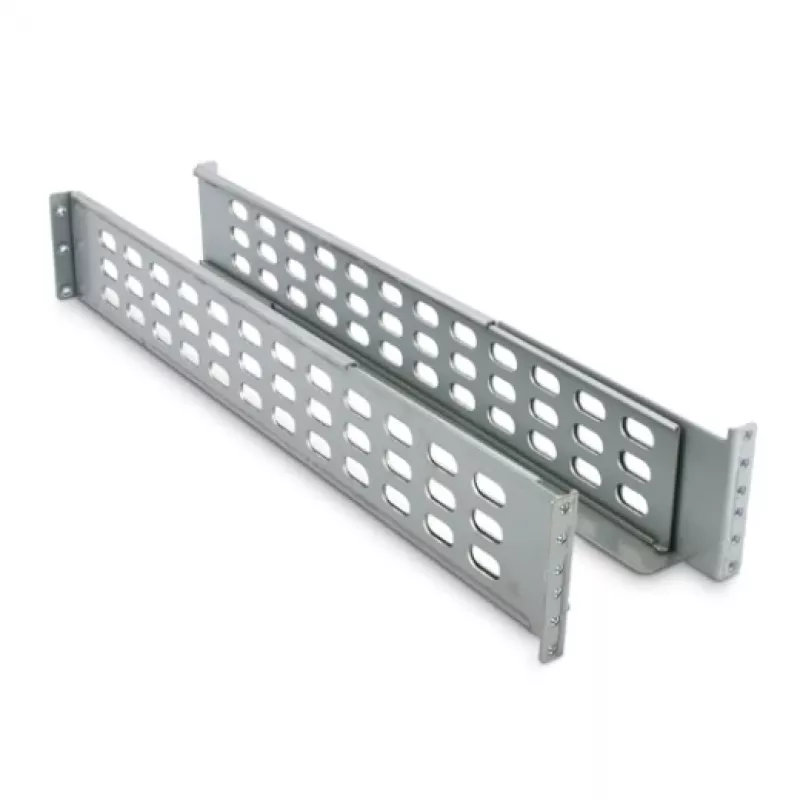

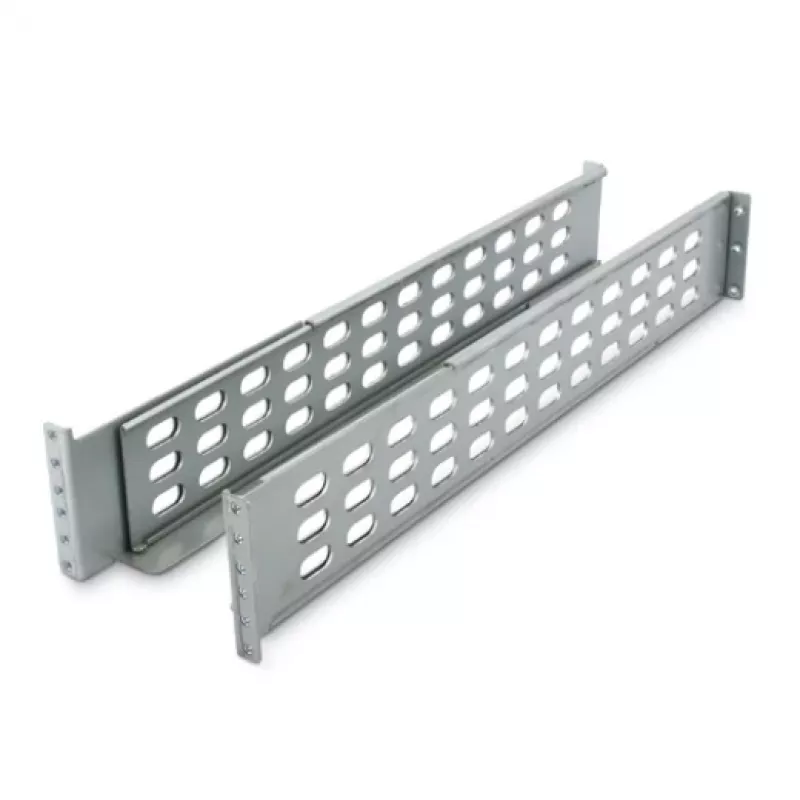

APC Smart-UPS raíles de montaje en rack de 4 postes

Installing heavy UPS units without proper support risks equipment damage and unsafe rack conditions. The APC SU032A 4-Post Rackmount Rails solve this by providing a sturdy, steel mounting platform for APC Smart-UPS RT models and compatible 19-inch equipment. This kit includes two rails, brackets, screws, and an installation guide, enabling secure horizontal mounting in standard server racks with depths from 724 to 826 mm.

Who is it for

IT administrators and data center technicians who need to mount APC Smart-UPS RT units or other rack-mount devices in 4-post server racks. It is ideal for dense rack environments where stability and ease of installation are critical.

Main features

• Compatible with APC Smart-UPS RT series, including SURT3000XLI to SURT20KRMXLI
• Fits standard 19-inch racks with adjustable depth from 724 to 826 mm
• Durable steel construction with grey finish
• Includes all necessary mounting hardware: brackets, screws, and installation guide
• Compact design: 527 mm width, 89 mm depth, 44 mm height

Specifications

• Brand: APC
• Model: SU032A
• MPN: SU032A
• EAN: 731304194668
• Product Type: Rackmount Rail Kit
• Mounting Type: 4-Post Rackmount
• Rack Size Compatibility: 19-inch Standard
• Supported Rack Depth Range: 724 - 826 mm (28.5 - 32.5 inches)
• Supported UPS Series: APC Smart-UPS RT
• Material: Steel
• Colour: Grey
• Width: 527 mm
• Depth: 89 mm
• Height: 44 mm
• Included Components: 2 x Rackmount Rails, Mounting Hardware, Installation Guide
• Shipping Weight: 2.73 kg
• Shipping Dimensions (H x W x D): 102 x 610 x 102 mm
• Environmental Compliance: RoHS, REACH
• Warranty: 2 Years

Tips

Before installation, confirm your rack's mounting depth is within the supported range. Use a torque screwdriver to tighten screws evenly, preventing rail misalignment. For heavier UPS models, consider using a lift or second person to safely slide the unit onto the rails.
