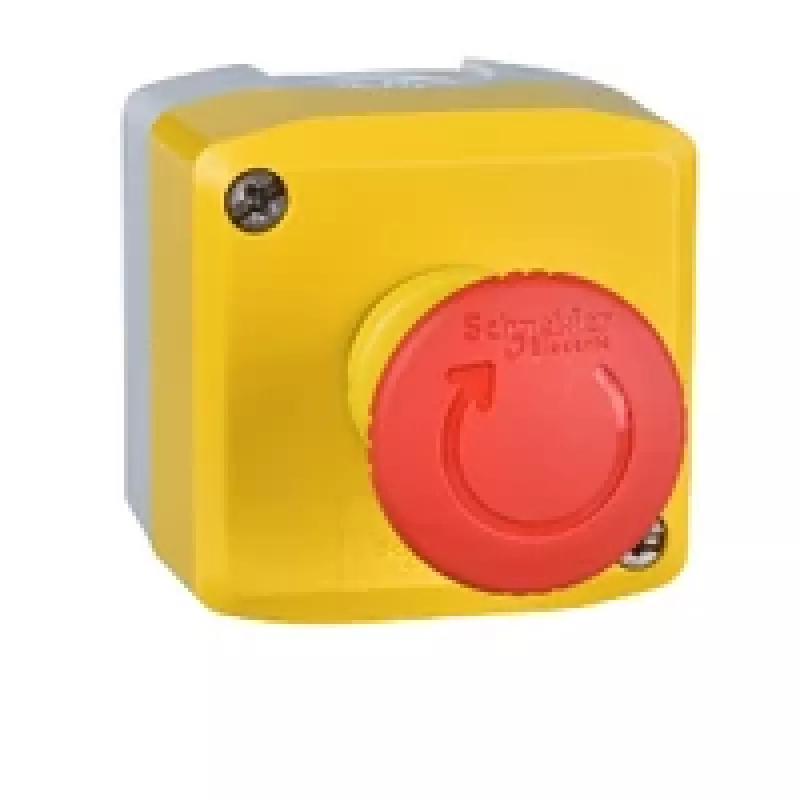

APC XALK178F puesto de pulsador de parada de emergencia, pulsador seta 40 mm, rojo/amarillo, IP69K, policarbonato, 600 V

The APC XALK178F is a robust emergency stop push button station designed for industrial environments requiring high reliability and safety. Featuring a 40 mm latching mushroom head actuator in red with a yellow polycarbonate enclosure, this switch provides clear visual indication and easy operation. With an IP69K rating, it withstands high-pressure washdowns and harsh conditions, making it ideal for food processing, chemical plants, and heavy machinery. Compliant with EN/IEC 60947-5-1, EN/ISO 13850, UL 508, and CSA C22.2 No 14, it ensures safety and durability.

Advantages

High ingress protection (IP69K) for extreme environments; robust polycarbonate housing; latching mechanism with turn-to-release; 1 NC contact for fail-safe operation; wide operating temperature range (-40 to 70 °C).

Suitable for

• Emergency stop applications in industrial automation
• Food and beverage processing lines
• Chemical and pharmaceutical plants
• Heavy machinery and equipment

Key specifications

• Product Type: Emergency Stop Push Button Station
• Actuator Type: Latching Mushroom Head, 40 mm
• Actuator Color: Red
• Enclosure Color: Yellow
• Enclosure Material: Polycarbonate (PC)
• Ingress Protection: IP69K
• Rated Insulation Voltage: 600 V
• Rated Impulse Withstand Voltage: 6 kV
• Number of Contacts: 1 NC (Normally Closed)
• Contact Operation: Slow-break
• Terminal Type: Screw Clamp
• Mounting Type: Surface Mount
• Operating Temperature: -40 to 70 °C
• Mechanical Durability: 300,000 cycles
• Electrical Durability: 1,000,000 cycles
• Standards: EN/IEC 60947-5-1, EN/ISO 13850, UL 508, CSA C22.2 No 14
• Release Mechanism: Turn to Release

Recommendations

For optimal safety, install this emergency stop station in easily accessible locations. Ensure proper wiring to normally closed safety circuits. Regular testing is recommended to maintain functionality.
