Backplate Aqua-Computer Reforzado para zócalo AM5, Negro

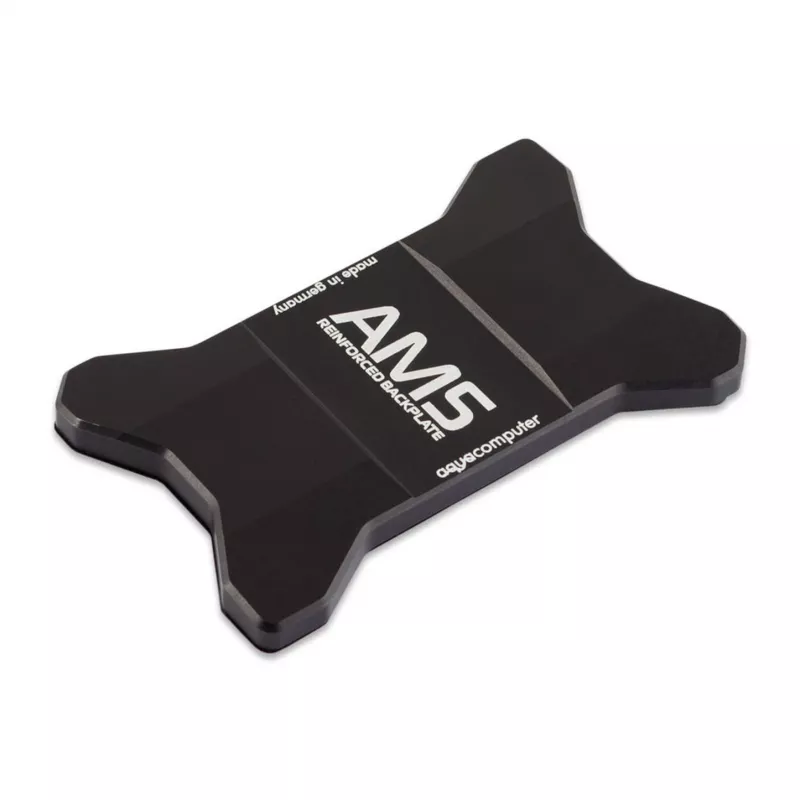

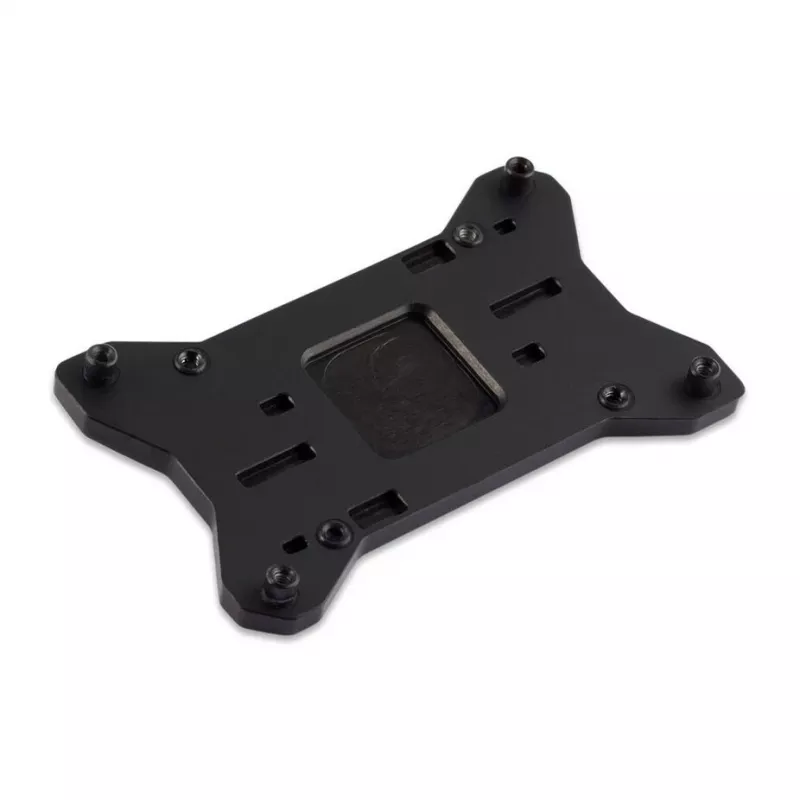

The Aqua-Computer Reinforced Backplate for AM5 Socket in black is a metal reinforcement plate designed to fit AM5 mounting patterns. It supports the motherboard area around the CPU socket to improve mechanical rigidity and distribute mounting pressure from heavy air coolers, large tower heatsinks or custom water-cooling blocks. The backplate is intended to reduce PCB flex and provide a stable mounting surface for secure cooler installation in desktop systems built around AMD AM5 processors.

Advantages

This reinforced backplate increases structural support behind the AM5 socket, helping to spread load evenly across the board and reduce stress on solder joints and traces. The black finish offers discreet appearance and corrosion resistance typical of treated metal components. By providing a firmer mounting interface, it can improve long-term contact stability for heavy coolers and water blocks, which is beneficial when assembling systems intended for sustained loads or frequent transportation.

Suitable for

• Desktop builds using AMD AM5 socket motherboards
• Systems with heavy air coolers or large tower heatsinks
• Custom water-cooling installations and water-block mounts
• Overclocked systems requiring improved mechanical stability
• Portable or frequently transported PCs where reduced PCB flex is desired

Key specifications

• Compatibility: AM5 socket mounting pattern
• Material: reinforced metal construction for increased rigidity
• Finish: black treated surface for discreet look and surface protection
• Purpose: distributes mounting pressure and stabilizes motherboard area around CPU socket

How to use

Install the backplate on the rear side of the motherboard aligned to the AM5 socket mounting holes before placing the motherboard into the case or during cooler installation. Ensure the plate is positioned so mounting standoffs or screws align with the cooler or water block hardware on the front side. Tighten mounting screws incrementally and evenly to achieve secure contact without over-torquing; follow cooler or water block manufacturer torque recommendations when available. Verify there is no shorting contact with nearby components and that any insulation or spacer required by the cooler is in place.

Recommendations

Use the reinforced backplate together with compatible mounting hardware supplied by your cooler or water block manufacturer. When assembling high-mass coolers or custom loops, check clearances for case panels and confirm even screw torque to prevent PCB stress. If uncertain about installation, consult the motherboard and cooler documentation or seek assistance from an experienced system builder.
