Depósito de compensación Aqua-Computer ULTITUBE D5 200 PRO para bombas D5

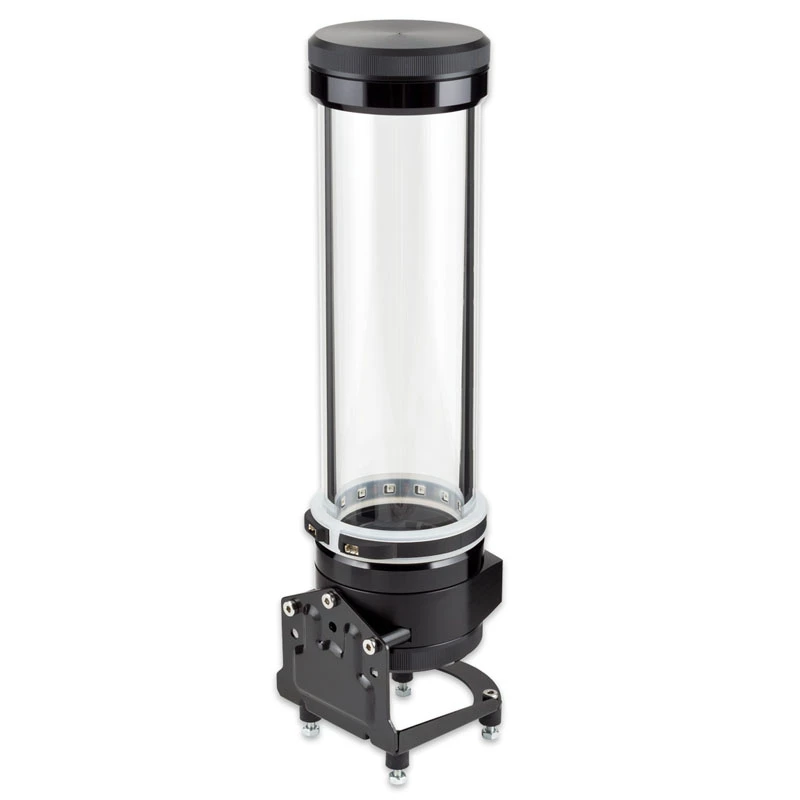

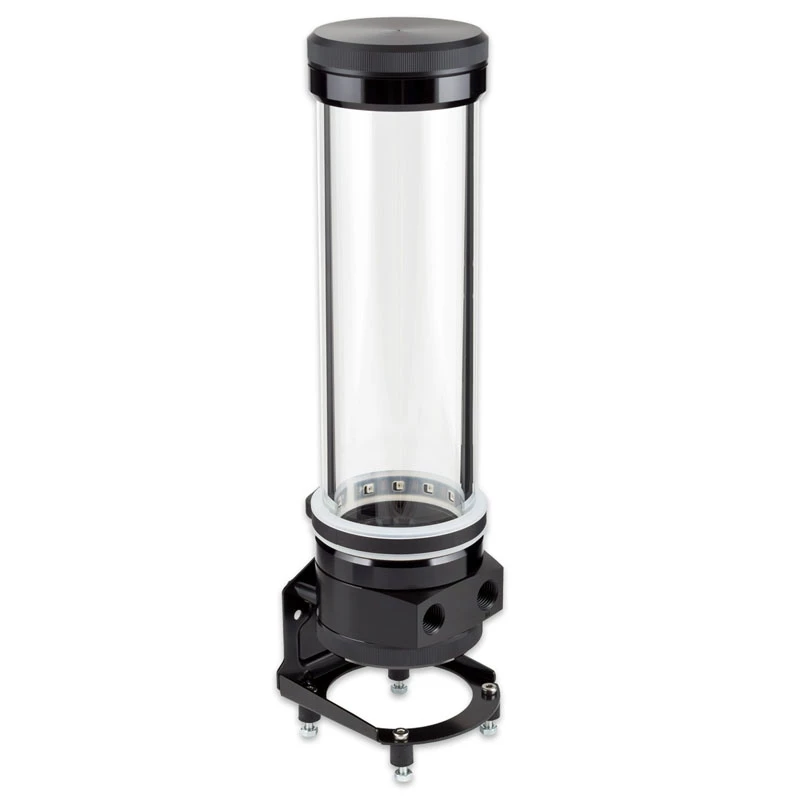

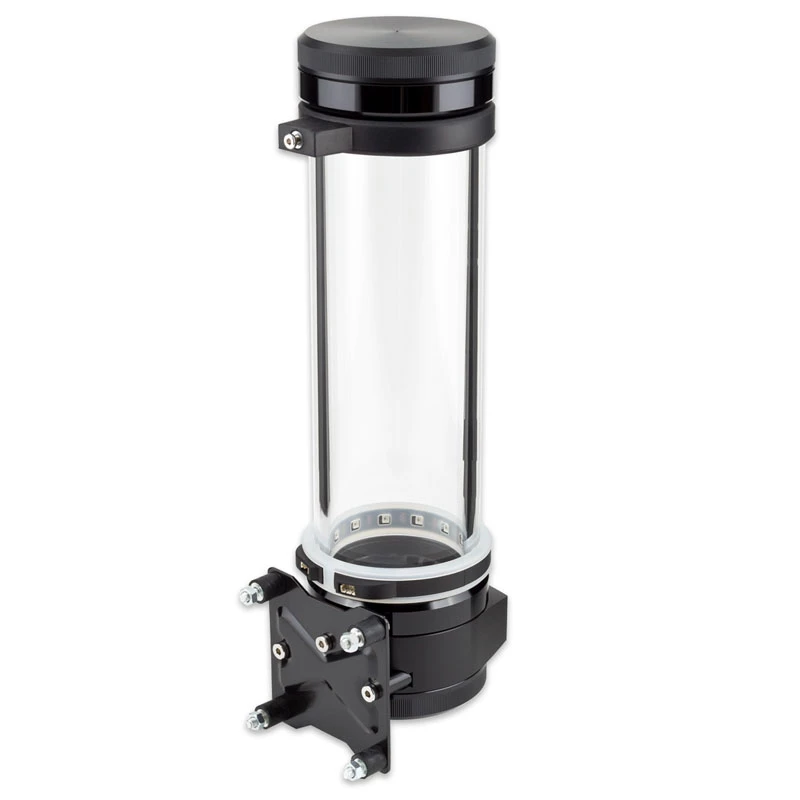

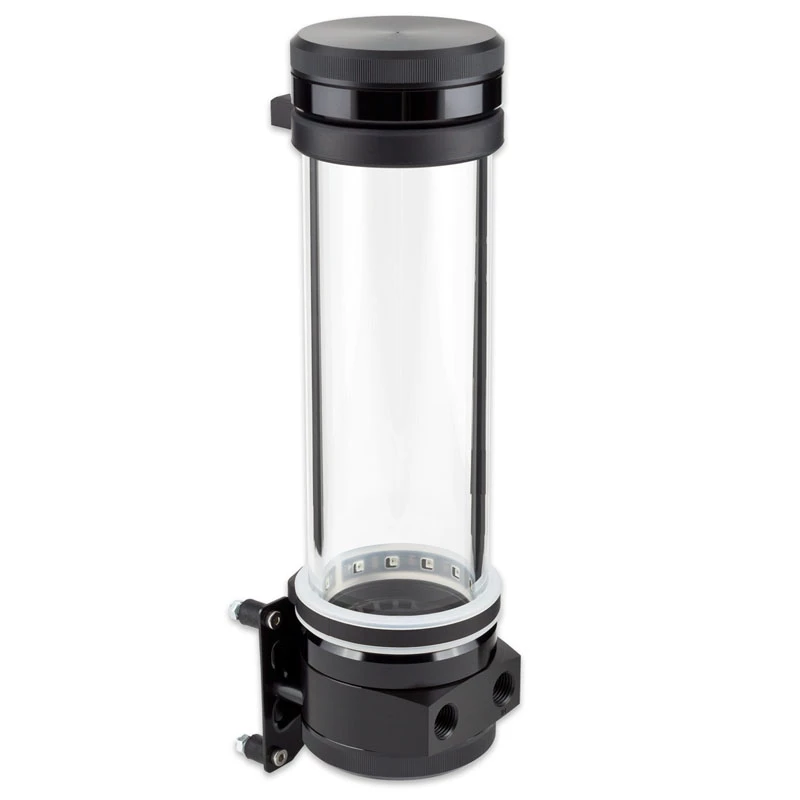

The Aqua-Computer ULTITUBE D5 200 PRO expansion tank is an add-on reservoir designed specifically for inline installation with D5-series pumps. With a 200 ml chamber, it facilitates filling, air separation and maintenance of closed-loop liquid cooling loops in desktop PC water-cooling systems. The compact cylindrical design connects directly to the pump’s inlet or outlet, allowing controlled coolant management without major changes to the existing loop layout.

Advantages

The ULTITUBE D5 200 PRO provides a dedicated small-capacity reservoir that simplifies bleeding and refilling procedures, reducing trapped air and improving flow stability. Its inline mounting minimizes additional tubing runs and keeps the cooling loop compact while offering a visible coolant chamber for quick inspection. The construction is intended to be compatible with common D5 pump form factors and materials used in PC water-cooling, providing a practical solution when more convenient access to coolant is required.

Suitable for

• Desktop PC custom water-cooling systems using a D5-series pump
• Systems that require easier bleeding and air separation
• Builds where compact inline reservoirs are preferred to top-mounted reservoirs
• Maintenance tasks such as refilling and loop flushing

Key specifications

• Reservoir capacity: 200 ml
• Inline mounting compatible with D5-series pump flow path
• Cylindrical compact form factor designed for minimal additional tubing
• Transparent or partly transparent chamber for visual coolant level inspection
• Materials suitable for standard PC coolant fluids

How to use

Mount the ULTITUBE D5 200 PRO inline with the D5 pump by replacing or inserting it into the pump’s inlet or outlet connection according to the pump and reservoir orientation. Ensure all fittings are tightened to avoid leaks and verify flow direction matches the intended loop. When filling the loop, use the ULTITUBE as the primary filling point to feed coolant into the system slowly, allowing air to rise into the chamber for separation. After filling, run the pump at low speed to purge remaining air, then top up through the reservoir until stable coolant level is reached.

Recommendations

Use compatible fittings and tubing rated for PC liquid cooling, inspect seals and O-rings during installation, and perform leak tests before long runtime. For effective air removal, incline the system slightly or operate the pump under controlled speed settings while filling. Avoid exposure to aggressive fluids not specified for PC cooling and follow manufacturer guidance for maintenance intervals.
