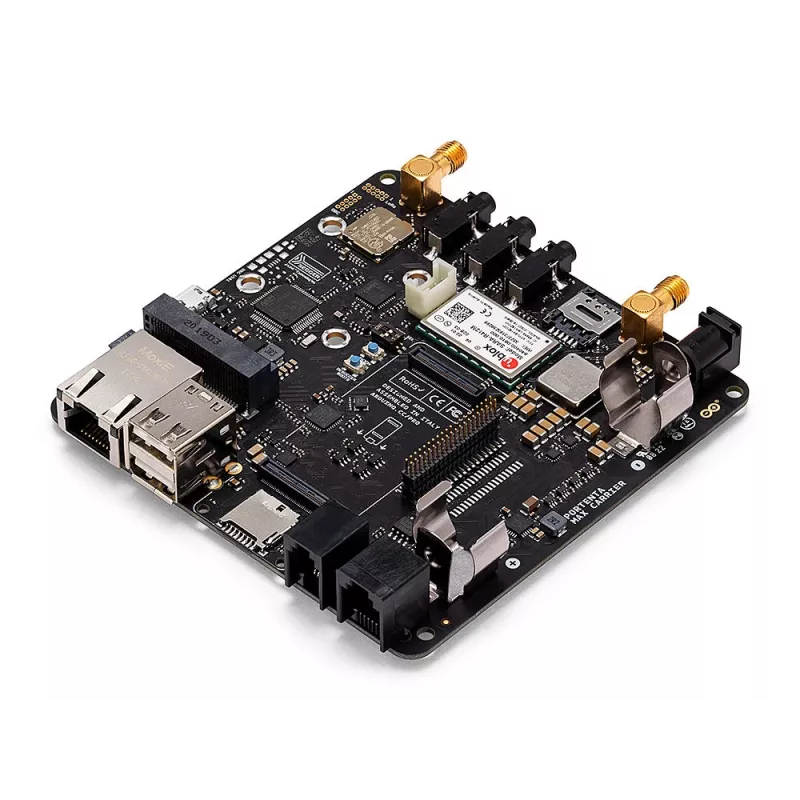

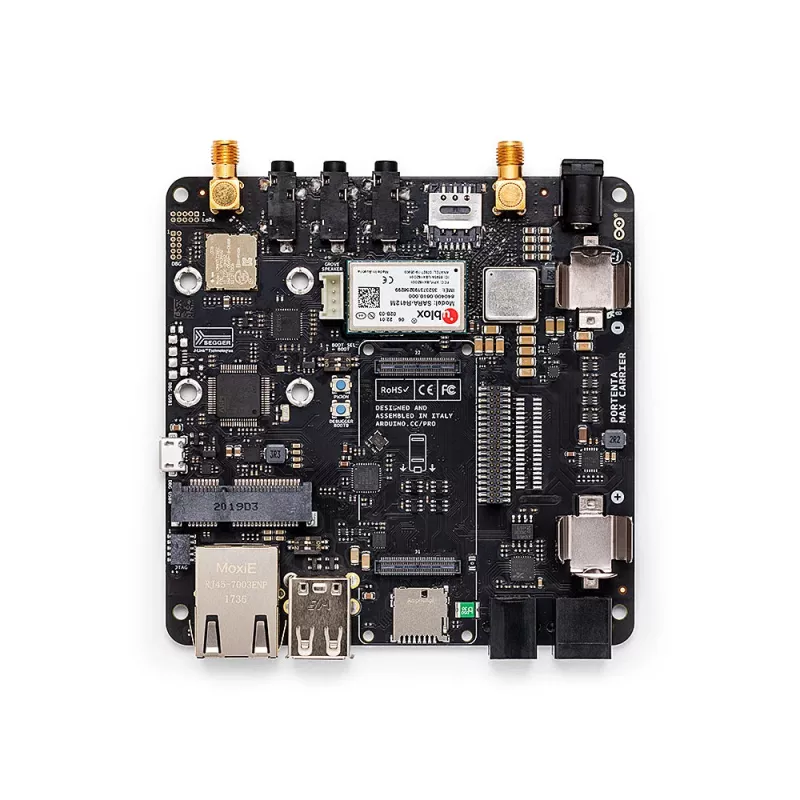

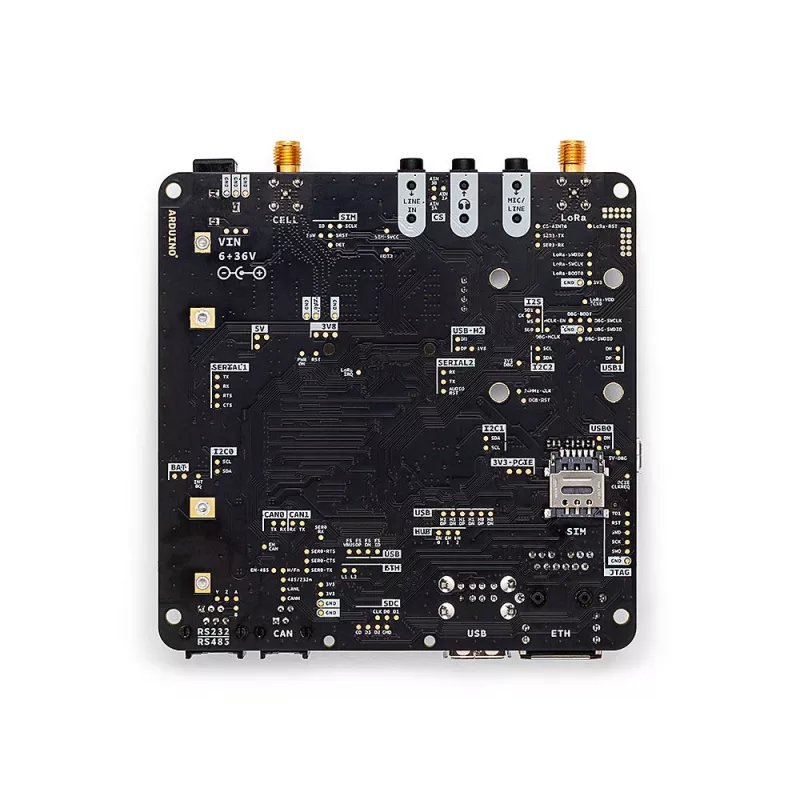

Arduino ABX00043 Portenta Max Carrier

The Arduino Portenta Max Carrier transforms the Portenta H7 and X8 modules into a full industrial single-board computer, adding Gigabit Ethernet, USB 3.0, Mini-PCIe, MIPI camera and display interfaces, CAN bus, and a wide 6-36V power input. Unlike basic breakouts, it integrates battery charging, an RTC, and a fan connector for sustained high-performance operation.

Highlights

• Industrial-grade carrier for Portenta H7 and X8 modules
• Gigabit Ethernet, 2x USB 3.0, 1x USB 2.0, and USB-C with DisplayPort Alt Mode
• Mini-PCIe slot for cellular, Wi-Fi, or storage expansion
• MIPI DSI display and MIPI CSI-2 camera interfaces
• CAN bus and RS232/RS485 serial communication
• Wide 6-36V DC input with Li-Po/Li-Ion battery support
• Integrated RTC with battery backup and fan connector

In daily use

Deploy the Max Carrier as the backbone of an industrial gateway, edge AI system, or robotics controller. Connect high-speed peripherals over USB 3.0, add a cellular modem via Mini-PCIe, and drive a display and camera simultaneously. The wide input voltage range and battery charging circuit make it suitable for remote or mobile installations, while the fan connector ensures reliable operation under sustained load.

Full specifications

• Module compatibility: Arduino Portenta H7, Arduino Portenta X8
• Ethernet: 1x Gigabit Ethernet (RJ45)
• USB: 2x USB 3.0 Type-A, 1x USB 2.0 Type-A, 1x USB-C (module, power, DisplayPort Alt Mode)
• Expansion: 1x Mini-PCIe, 1x MicroSD card slot
• Display: 1x MIPI DSI, 1x DisplayPort over USB-C
• Camera: 1x MIPI CSI-2
• Audio: 1x 3.5mm jack (line-out, mic-in)
• Serial: 1x CAN bus, 1x RS232/RS485 (selectable)
• Power: 6-36V DC via barrel jack or terminal block, Li-Po/Li-Ion battery connector with charging
• RTC: Integrated with battery backup
• Fan connector: Yes
• Debugging: JTAG/SWD header
• Operating temperature: -40°C to +85°C

Final note

For engineers needing a production-ready carrier that unlocks every interface of the Portenta modules, the Max Carrier delivers industrial connectivity and power flexibility in a single board.
