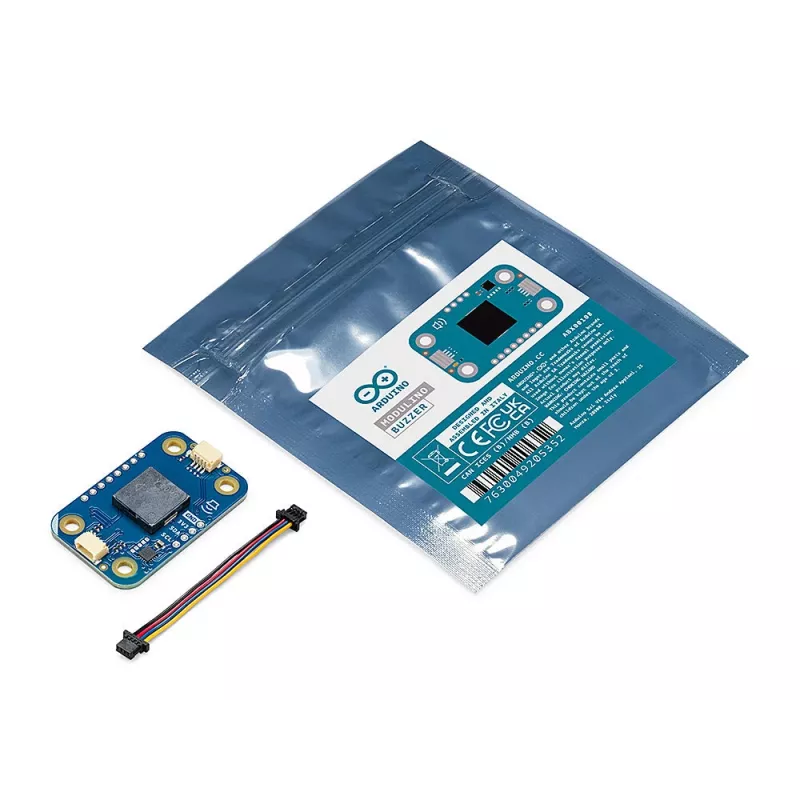

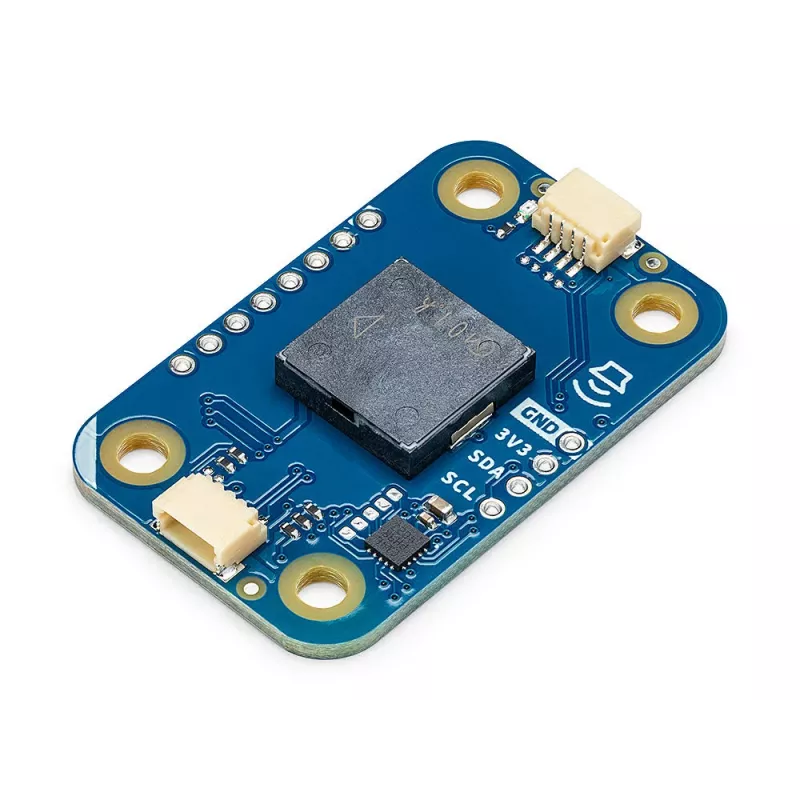

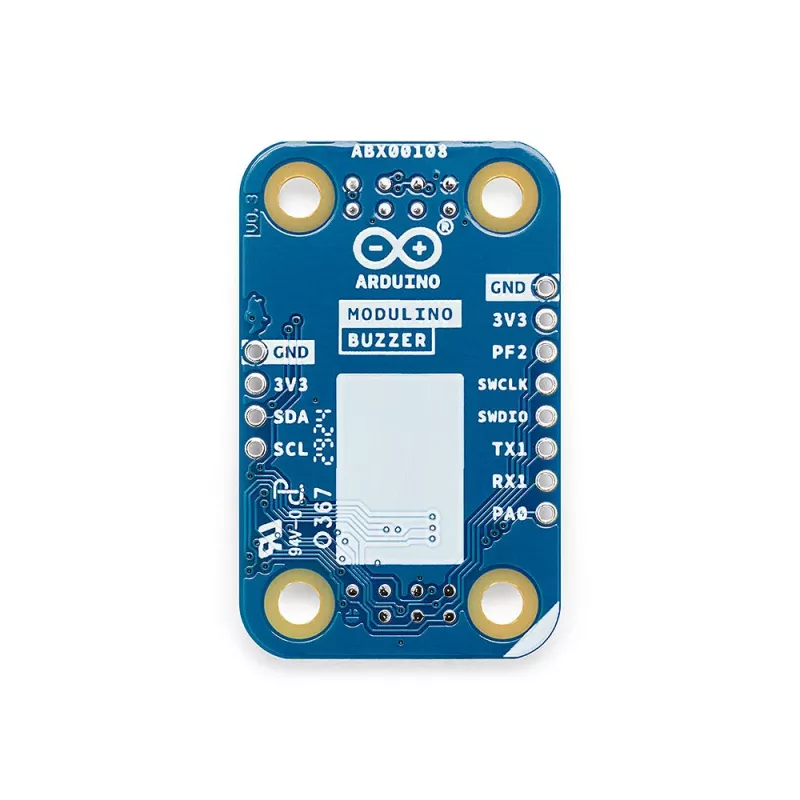

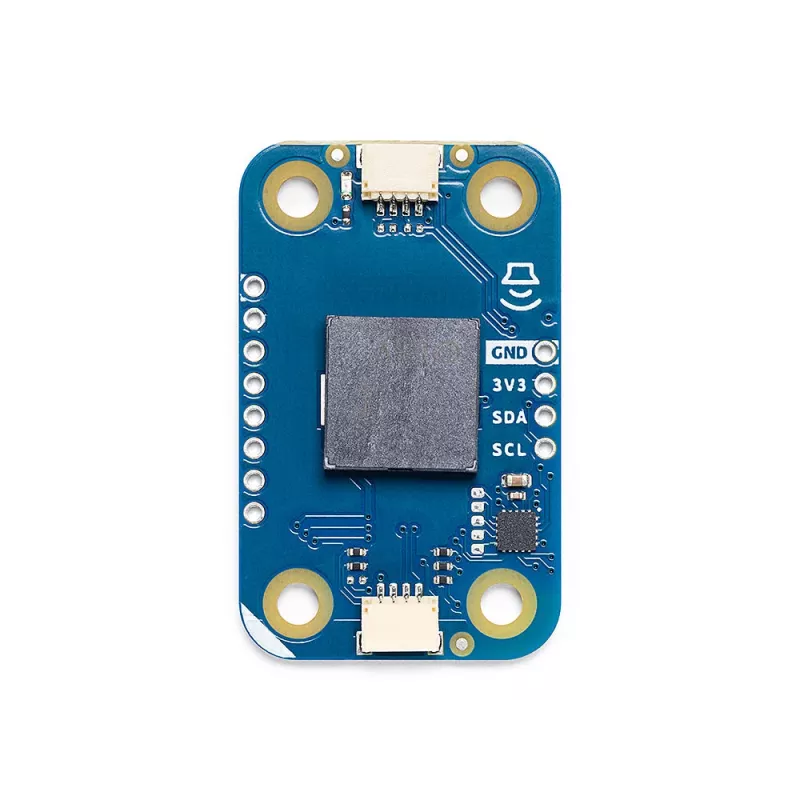

Arduino ABX00108 Modulino Buzzer módulo

The Arduino ABX00108 Modulino Buzzer is a compact piezoelectric sound module that adds audio feedback to your projects. It generates tones and alarms when driven by a microcontroller digital pin, making it ideal for prototyping and educational use.

Advantages

Simple 3-pin interface (VCC, GND, Signal) works with 3.3V and 5V systems. Low current draw under 20 mA keeps power budgets small. Part of the Arduino Modulino series for easy integration.

Suitable for

• Prototyping audible alerts and user feedback
• Educational electronics and STEM projects
• IoT devices needing simple sound output

Key specifications

• Type: Piezoelectric buzzer module
• Operating voltage: 3.3V - 5V DC
• Interface: Digital I/O pin (PWM for tones)
• Current consumption: < 20 mA
• Mounting: Modulino connector / breadboard compatible

Recommendations

Drive with PWM to create varied tones and melodies. Pair with an Arduino board for instant sound output.
