Armario de montaje en pared DIGITUS 19" 12U SOHO Pro puerta perforada 595 x 540 x 400mm sin montar gr

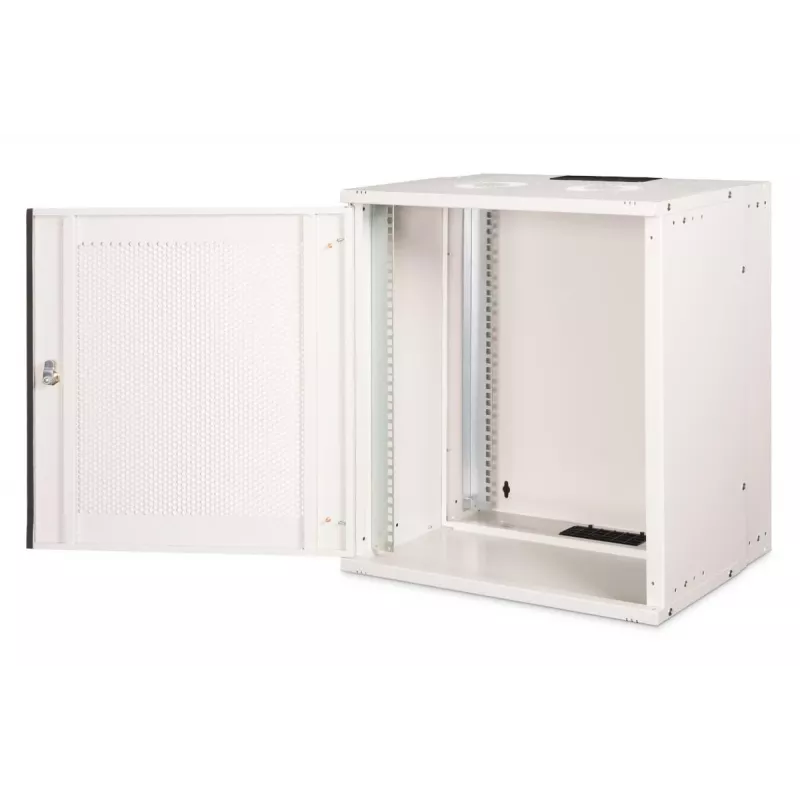

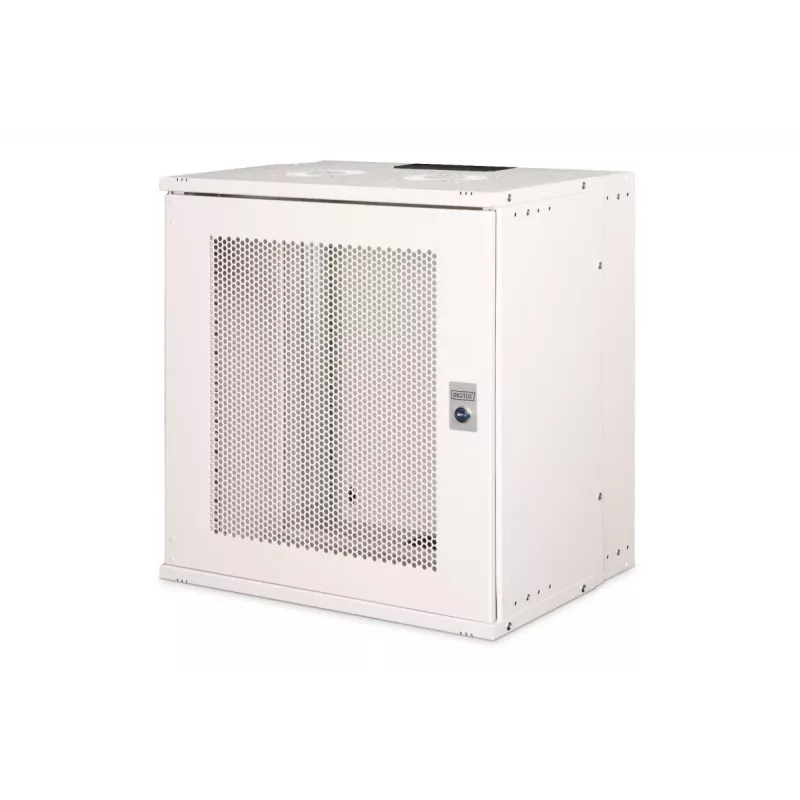

The DIGITUS® wall-mounted enclosure SOHO PRO series is a compact 19" (483 mm) cabinet designed for indoor network equipment installation. This 12U variant (model DN-49210) is supplied unassembled in an optimized flat pack for simplified logistics and quick on-site setup. The enclosure is made of robust steel (up to 1.5 mm), finished in light grey (RAL 7035), and provides IP20 protection, a lockable perforated steel front door with a 200° opening angle, and flexible cable entries at the top and bottom.

Advantages

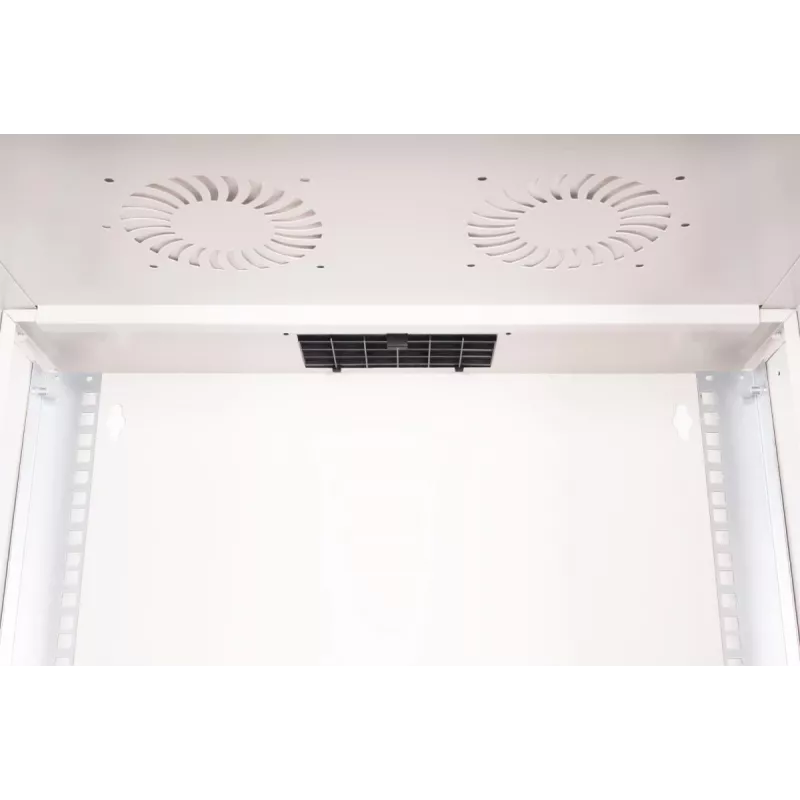

The cabinet offers space-efficient 12U mounting for patch panels, switches and other 19" components with a 60 kg load capacity and depth-adjustable 483 mm (19") profile rails. It ships flat-packed to reduce transport volume and is easy to assemble with only a few screws. Perforated front door and protected roof and floor openings enable effective airflow and flexible cable routing while a keyed lock secures installed equipment.

Suitable for

• Small office and home network racks
• Sub-distribution or server points with limited space
• Mounting 19" switches, patch panels and compact network devices

Key specifications

• Brand: DIGITUS
• Model: DN-49210
• Rack capacity: 12U (19" / 483 mm)
• External dimensions (H x W x D): 595 mm x 540 mm x 400 mm
• Maximum mounting depth: 327 mm
• Load capacity: 60 kg
• Material: Steel (up to 1.5 mm)
• Finish / colour: Light grey (RAL 7035), electrostatic powder coating

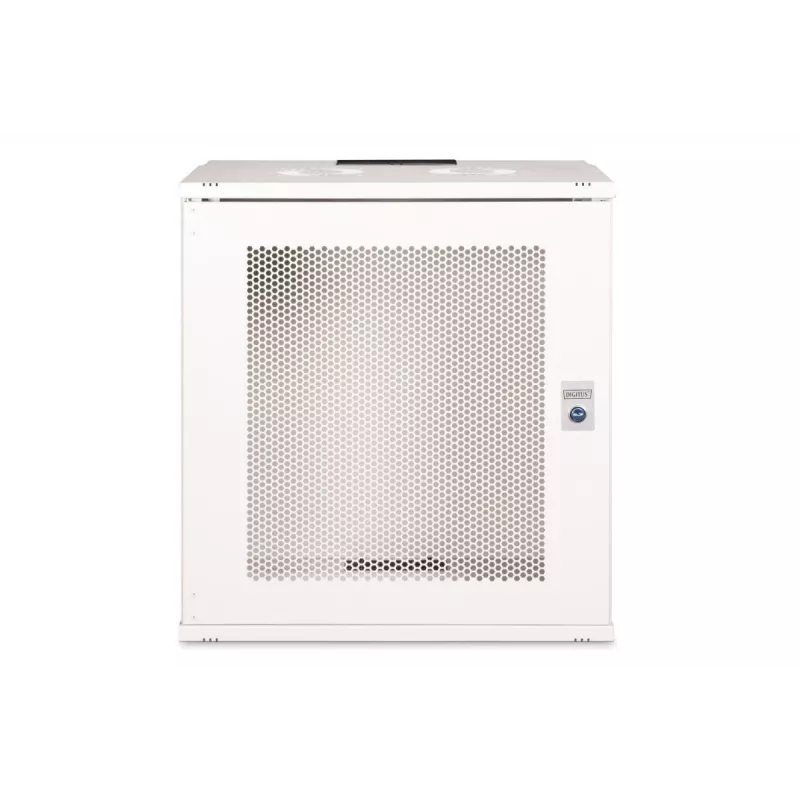

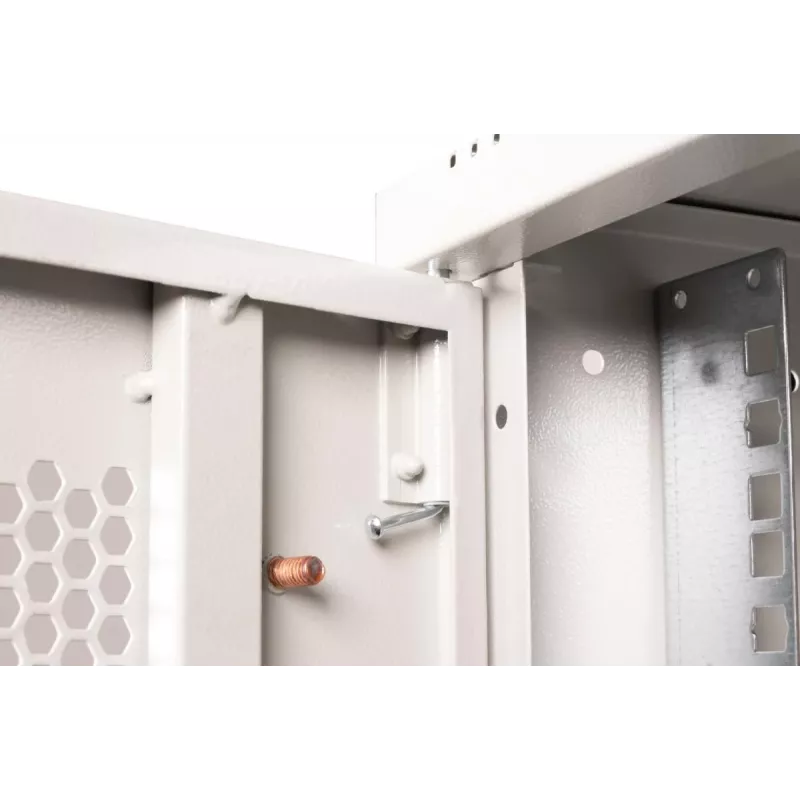

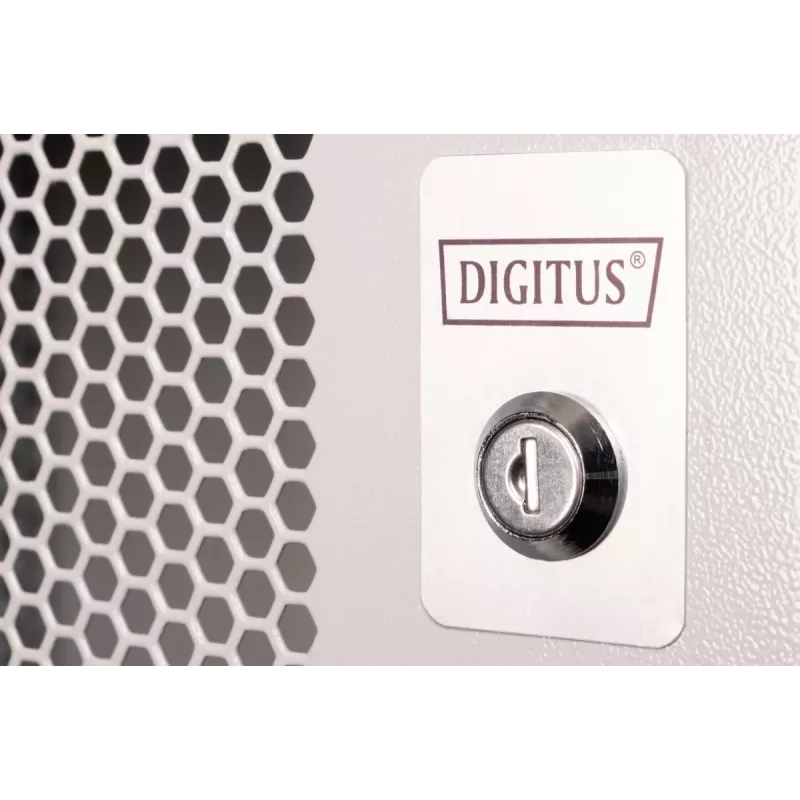

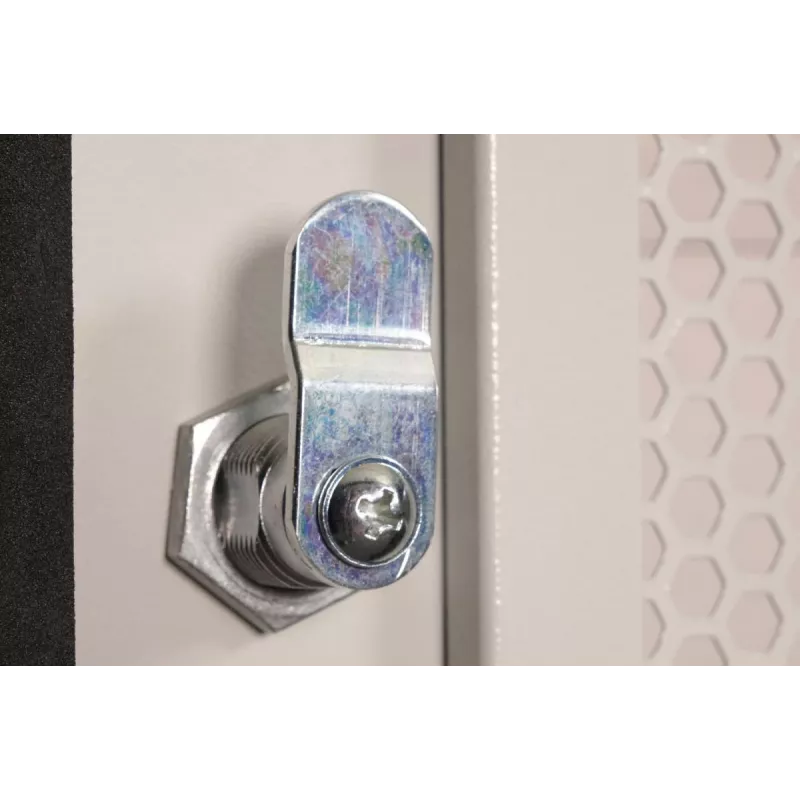

• Front door: Perforated steel, lockable, 200° opening
• IP rating: IP20 (indoor use)
• Delivery: Unassembled in optimized flat pack

How to use

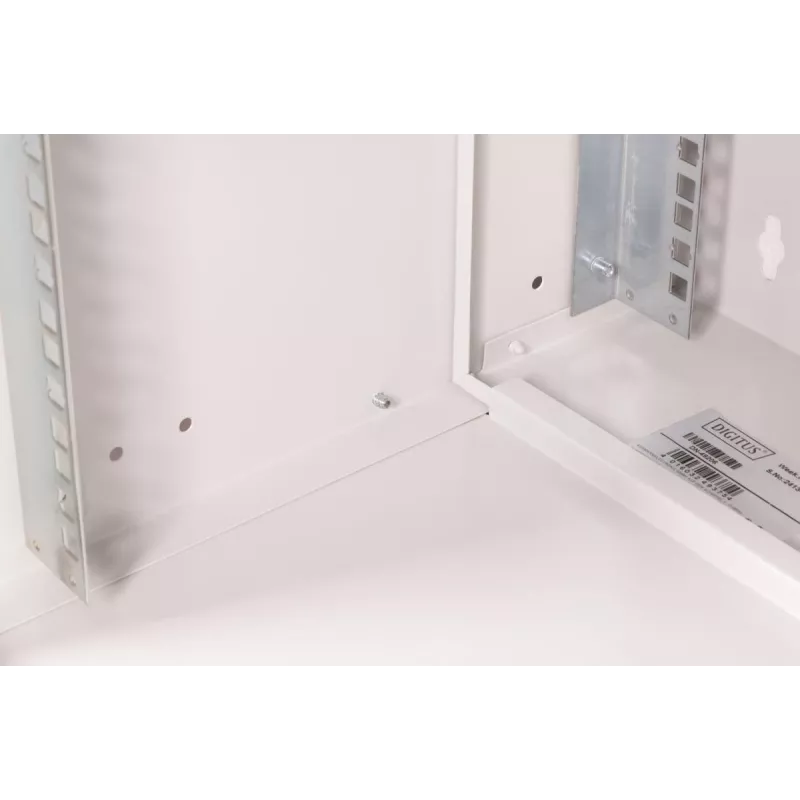

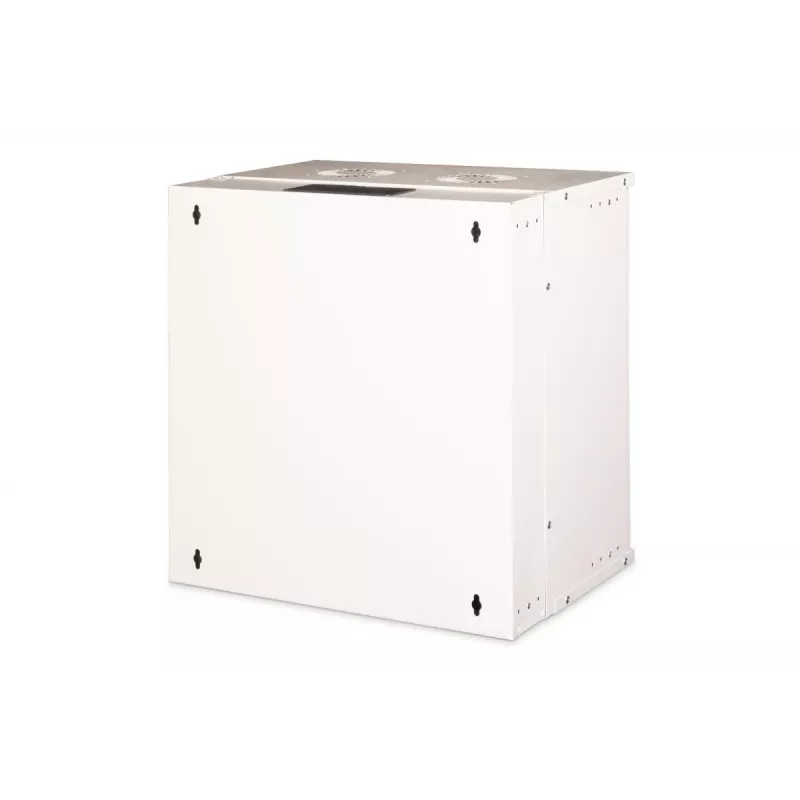

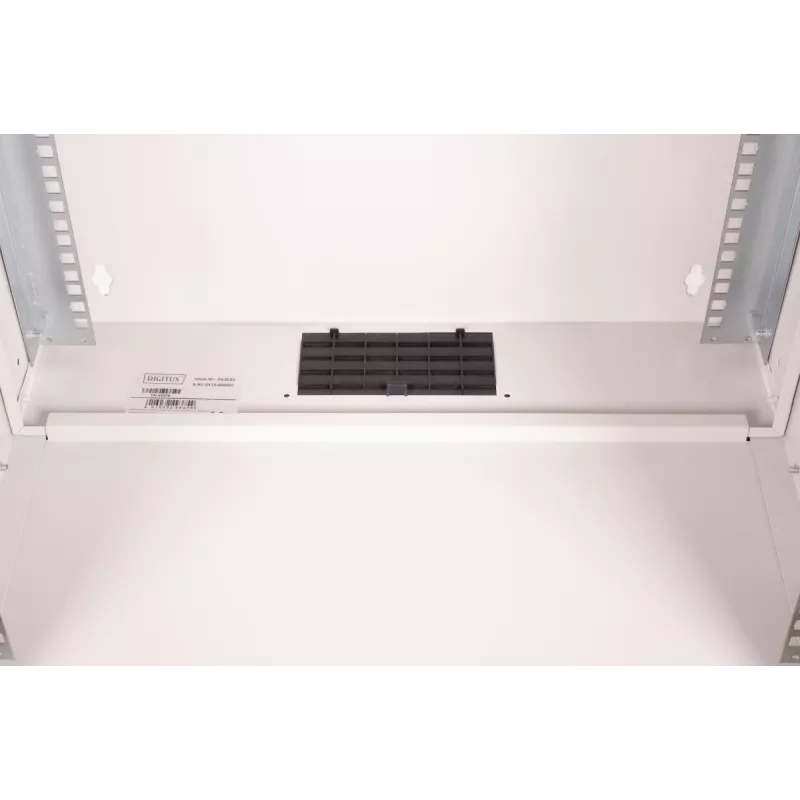

Unpack the flat pack and follow the enclosed step-by-step instructions to assemble the cabinet with the supplied fasteners. Mount the cabinet to a suitable solid wall using appropriate anchors (not included) and ensure it is level and securely fastened. Install equipment on the depth-adjustable 19" profile rails, adjusting the rail positions as needed for proper cable routing and airflow. Route cables through the protected openings in the roof and floor and lock the front door when access is not required.

Recommendations

Install the rack indoors in a clean, dry environment and respect the 60 kg maximum load. Use appropriate wall anchors for the wall material and maintain sufficient ventilation around active equipment. For heavy or vibration-prone environments, consider additional mounting support and secure all devices to the profile rails.
