Armario de pared Extralink Rackmount cabinet 15U 600x450 negro con cerradura de llave y guías de rack

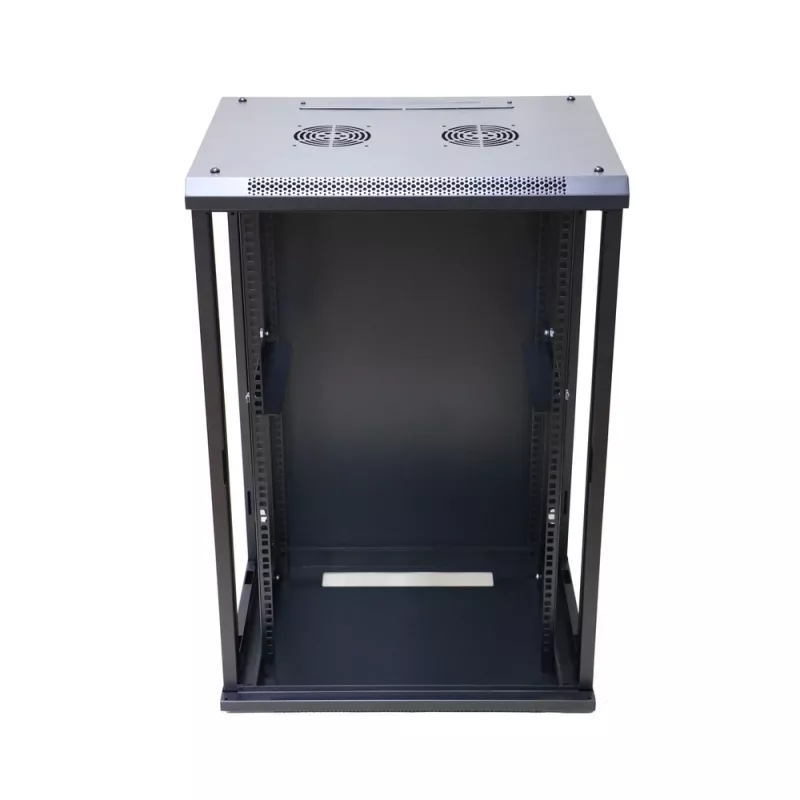

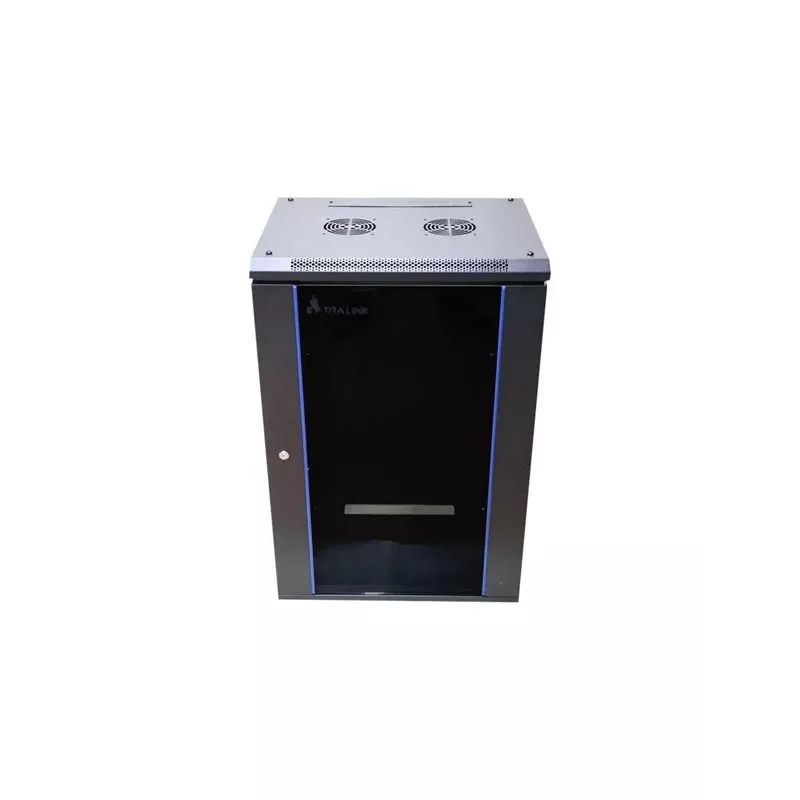

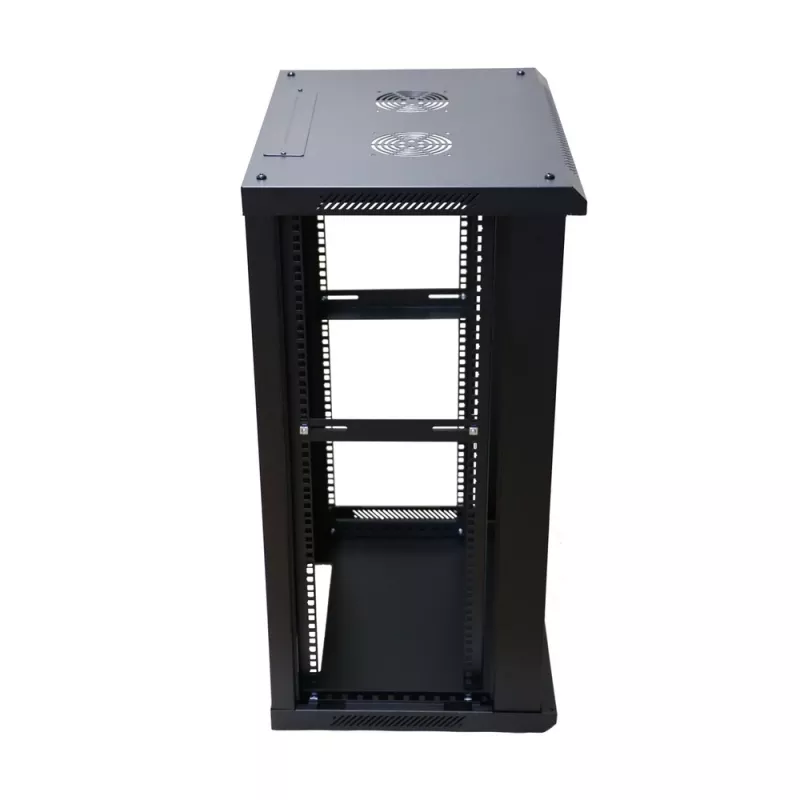

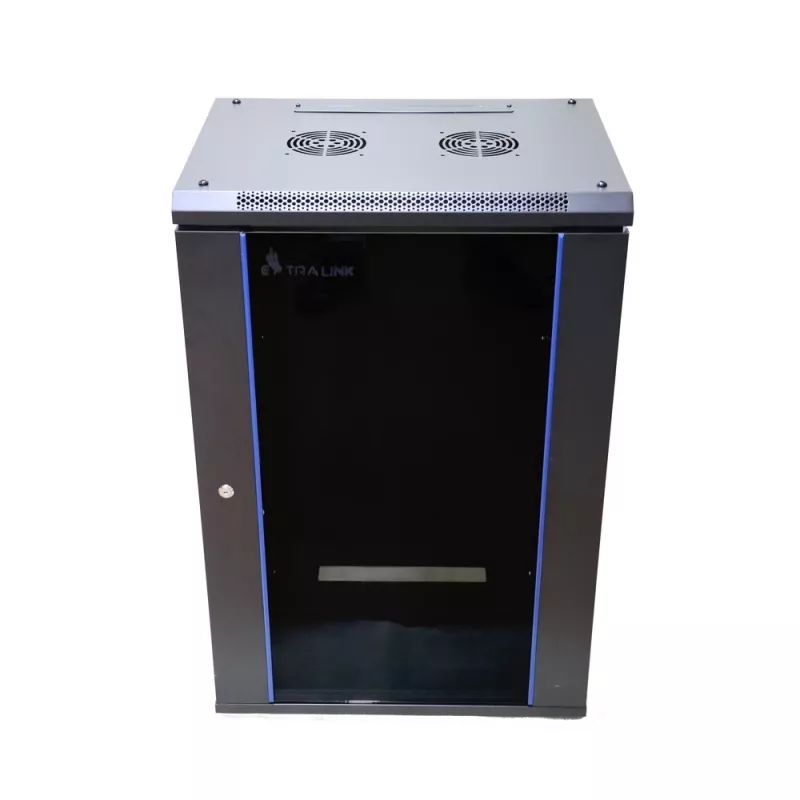

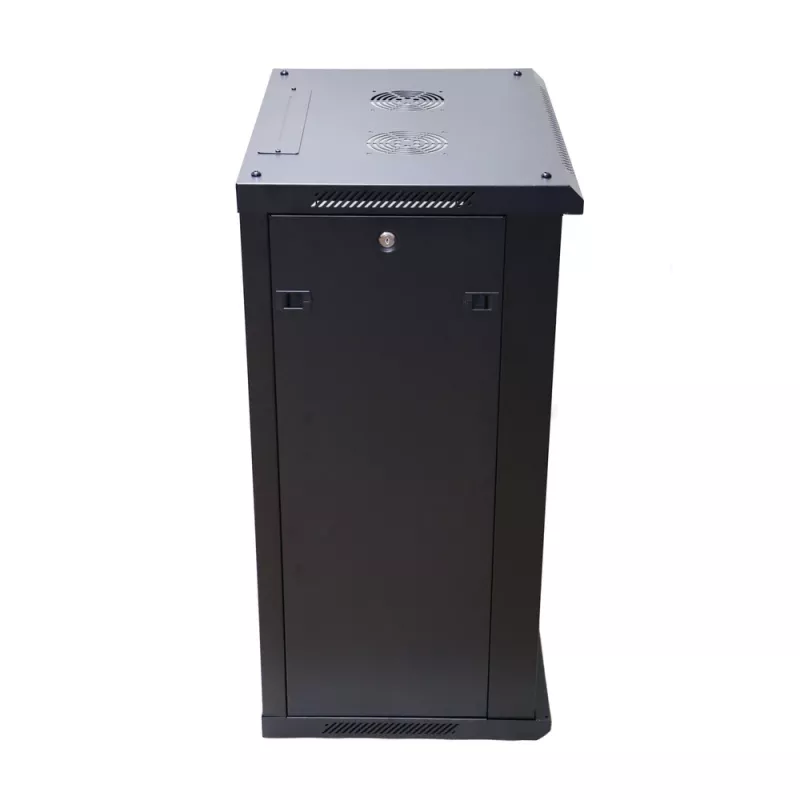

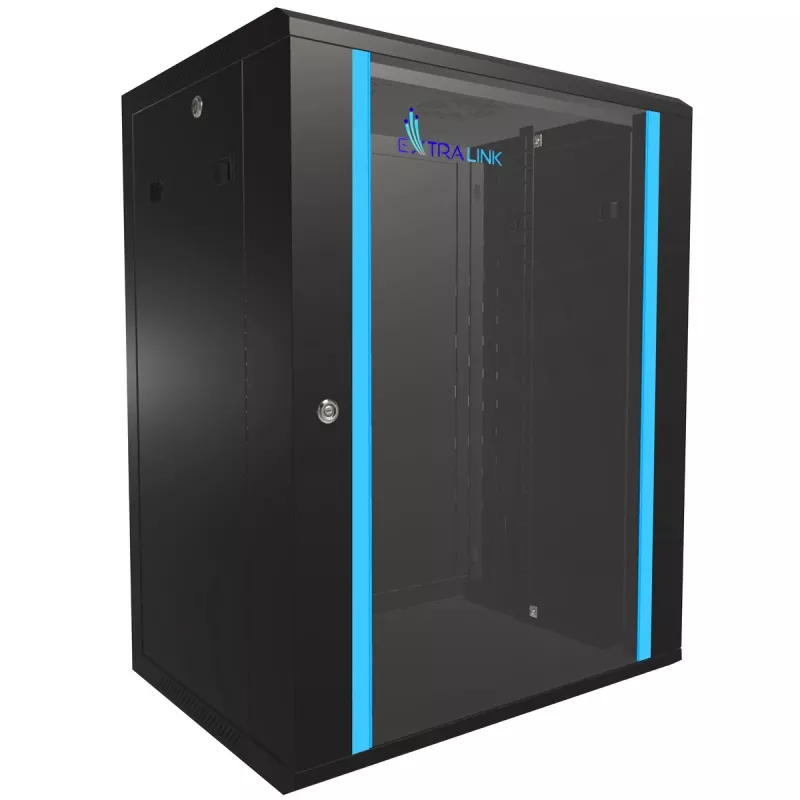

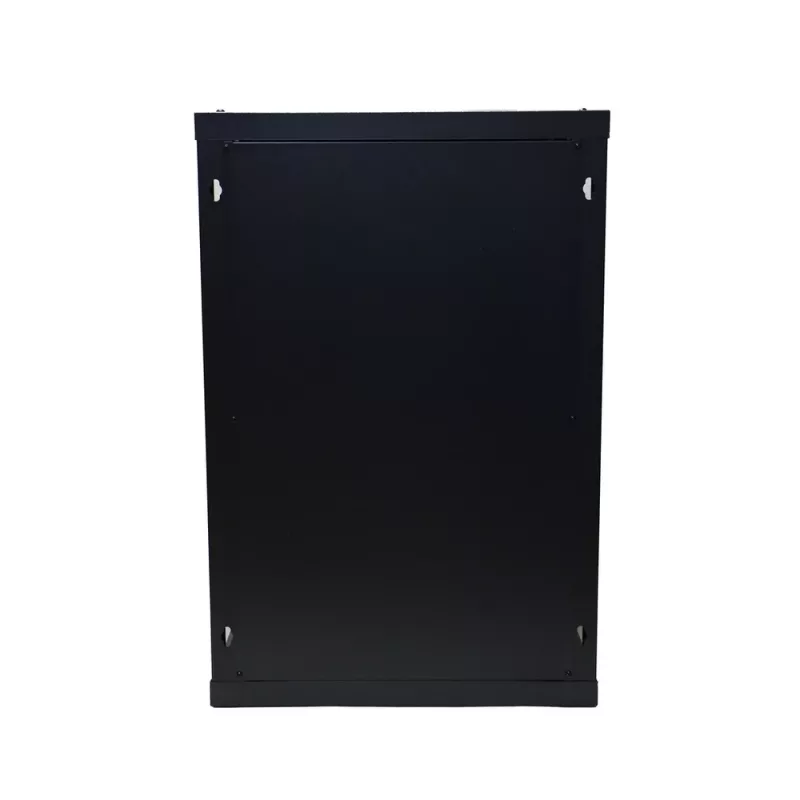

The Extralink Rackmount cabinet 15U 600x450 Black is a wall-mounted network rack designed to hold and organize IT and audiovisual equipment in compact spaces. With a 15U mounting capacity and a total height of 775 mm, the cabinet provides a standard 19" mounting frame in a 600 mm wide by 450 mm deep enclosure. The cabinet body is made from cold-rolled steel while the front door is tempered glass and can be configured to open to either the left or right side. It includes rack rails, a keyed lock for physical security and snap fasteners for easy removal of side panels. The top panel features two fan mounting positions and a cable pass-through for improved ventilation and cable management.

Advantages

This wall-mounted cabinet combines a space-saving footprint with sturdy steel construction and a transparent tempered glass front for equipment visibility. The clearly marked vertical rails with 15U height designation simplify rack-unit placement and installation of standard 19" devices. Built-in keyed locking enhances physical security while removable side panels and pre-cut fan positions on the ceiling speed up maintenance and cooling improvements. The black finish provides a neutral appearance suitable for offices, server rooms and CCTV control environments.

Suitable for

• Small servers and network switches in office or closet installations
• CCTV DVRs/NVRs and surveillance equipment in control rooms
• Patch panels, power distribution units (PDUs) and rack-mounted media devices

Key specifications

• Rack capacity: 15U (vertical rails with unit markings)
• External height: 775 mm
• External width: 600 mm
• External depth: 450 mm
• Mounting standard: 19" equipment compatibility
• Material: cold-rolled steel body, tempered glass front door
• Color: Black
• Security: keyed lock on front door
• Ventilation: two fan mounting positions on ceiling and cable conduit

How to use

Mount the cabinet securely to a structural wall using appropriate anchors and fasteners for your wall type and the expected equipment weight. Install rack rails and mount your 19" devices within the 15U vertical space, using cage nuts or compatible mounting hardware. Use the keyed lock to restrict access, route cables through the designated conduit openings and fit fans in the ceiling positions if additional airflow is required. Side panels can be removed via snap fasteners for access during installation or servicing.

Recommendations

Ensure the chosen mounting wall and fasteners can safely support the combined weight of the cabinet and installed equipment. Allow clearance for ventilation in front and rear of the cabinet, and consider installing fans when mounting heat-generating devices. Use proper cable management and secure power distribution units to maintain reliable operation and simplify maintenance.
