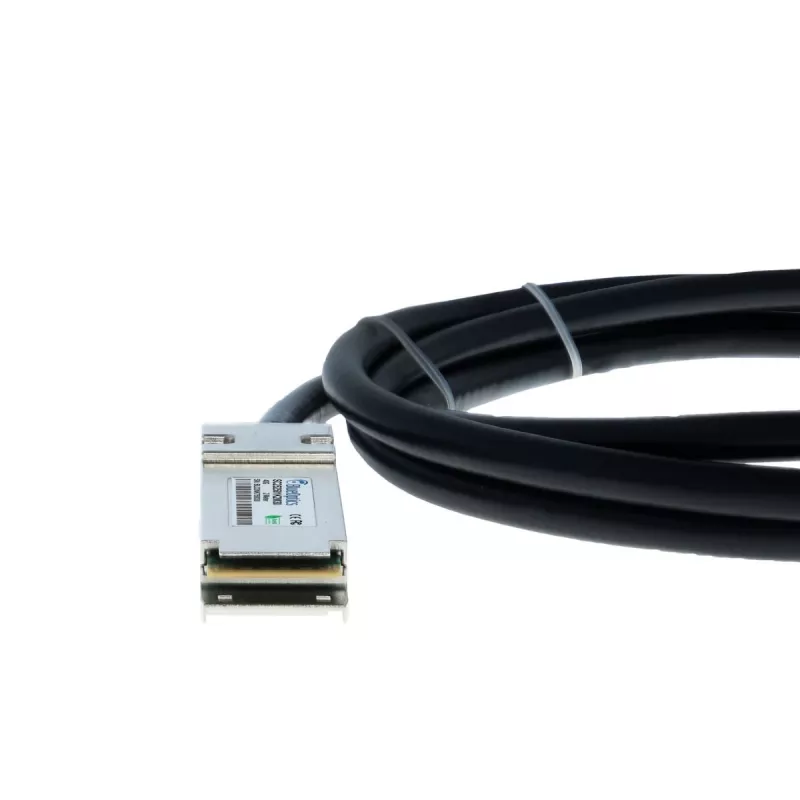

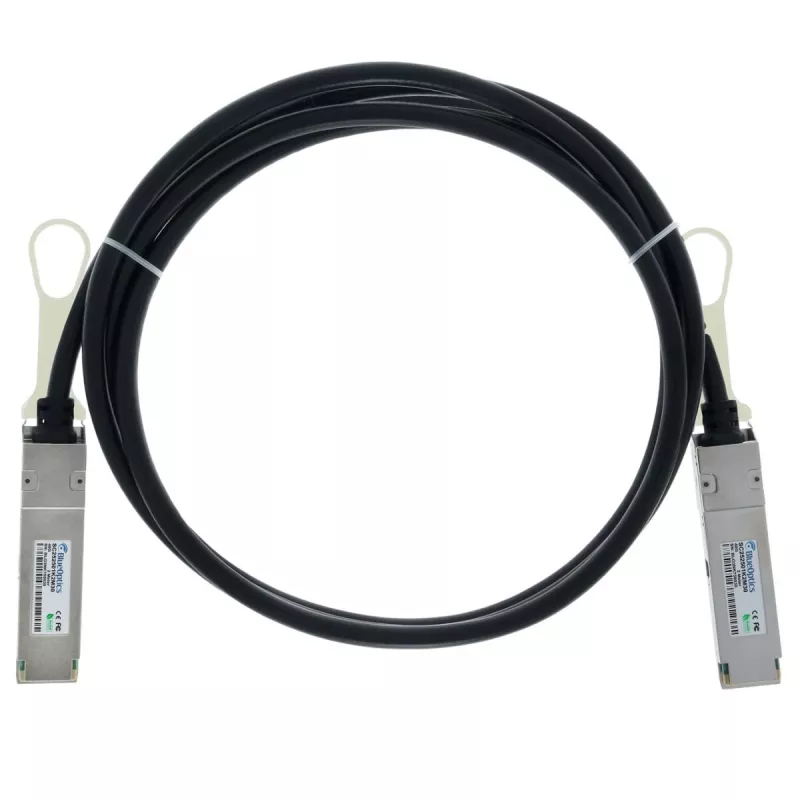

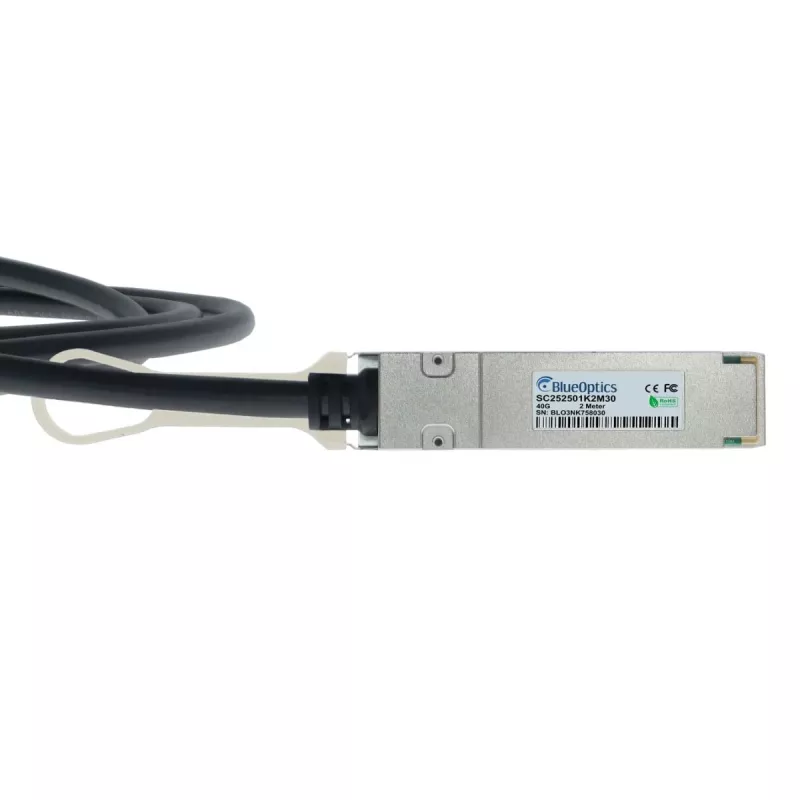

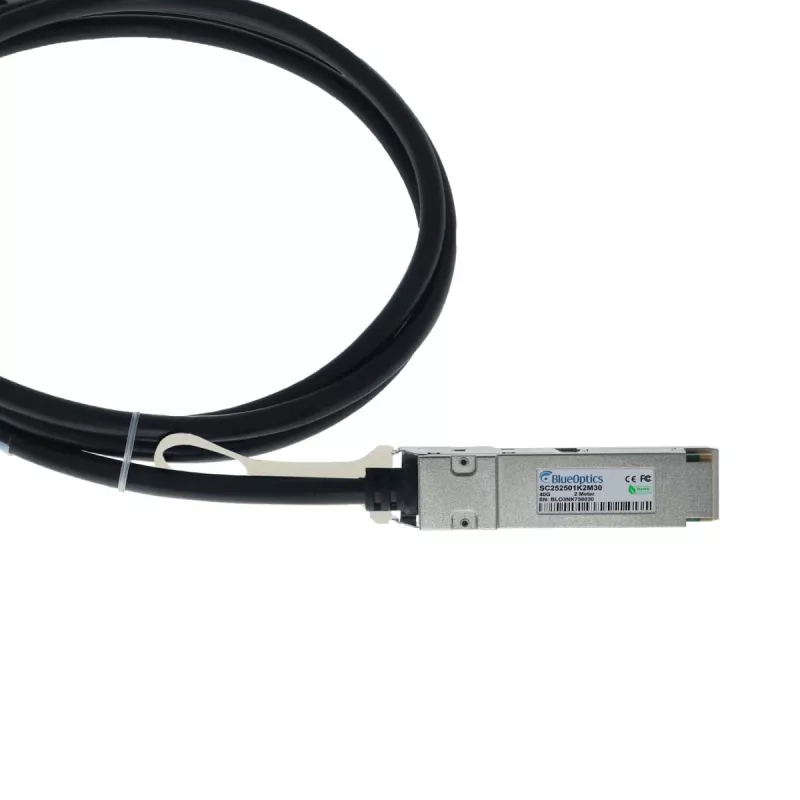

BlueOptics Ruckus 40G-QSFP-C-0301 Compatible BlueLAN DAC QSFP+ 3m Cable de Cobre Pasivo

The BlueOptics Ruckus 40G-QSFP-C-0301 Compatible BlueLAN DAC QSFP+ 3m Passive Copper Cable is a high-performance direct attach cable designed for 40 Gigabit Ethernet connectivity. It provides a cost-effective and reliable solution for short-range interconnects in data centers, enterprise networks, and high-performance computing environments.

Advantages

This passive copper DAC cable offers low latency, high reliability, and low power consumption (<0.5W). It is hot-swappable and MSA compliant, ensuring seamless integration with compatible QSFP+ ports. The 3-meter length is ideal for top-of-rack or adjacent rack connections.

Suitable for

• Data center top-of-rack to server/storage connections
• High-performance computing clusters
• Enterprise network core to distribution switches
• 40GBASE-CR4 compliant applications

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Form Factor: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Type: Passive Copper
• Length: 3 meters (9.84 ft)
• Connector A: QSFP+
• Connector B: QSFP+
• Compatibility: Ruckus 40G-QSFP-C-0301 compatible
• Power Consumption: <0.5W
• Impedance: 100 Ohm
• Wire Gauge: 26 AWG
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage: 3.3V
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP+ ports that support 40GBASE-CR4. This cable is not compatible with SFP+ or other form factors without an adapter.
