Armario de pared Lanberg WF01-6604-10B 4U negro

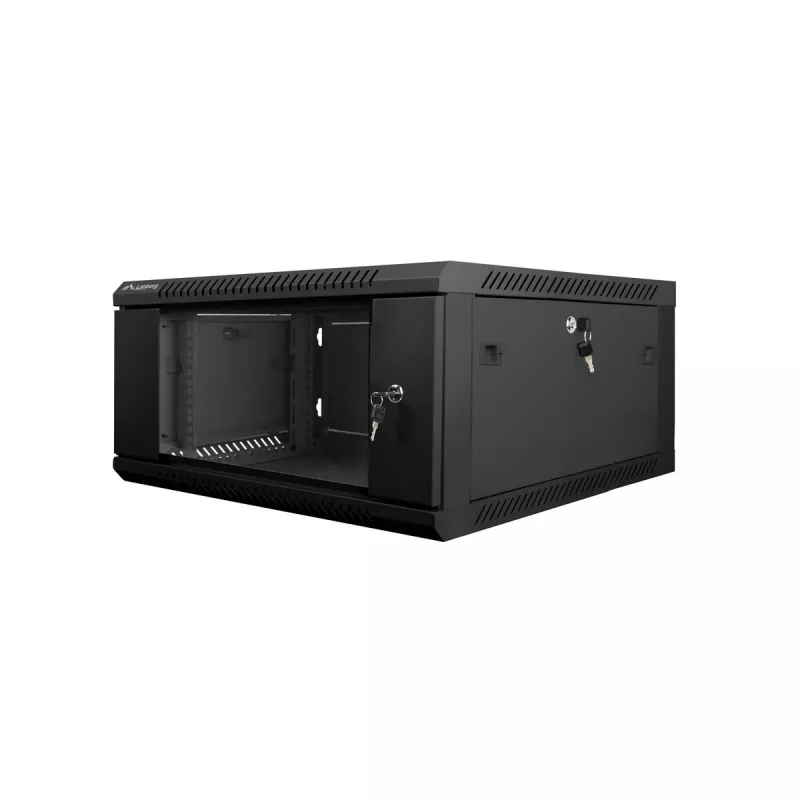

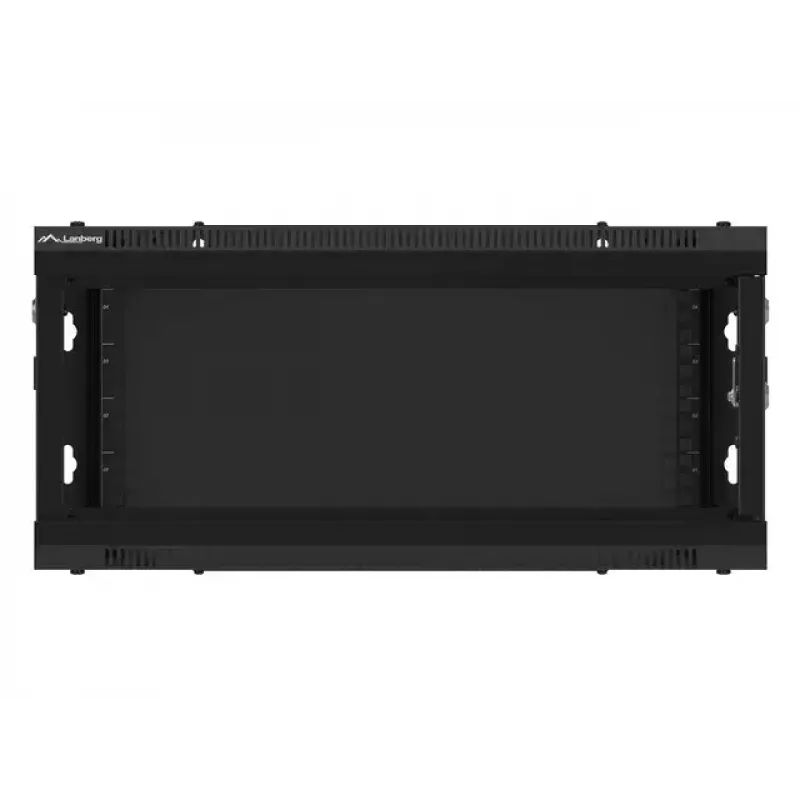

Wall mounted rack Lanberg WF01-6604-10B 4U Black is a 19" single-section cabinet for mounting network devices and cabling. The cabinet supports up to 60 kg of equipment, has a 4U capacity and is made of high-grade cold rolled steel. It is intended for use in networks, server rooms, small and medium businesses and low-voltage systems such as cable TV, alarm and fire protection systems, access control, CCTV and IP surveillance. The structure is delivered in a flat pack for self-assembly and includes rail mounting accessories, M6 cage nuts and blank entry panels.

Advantages

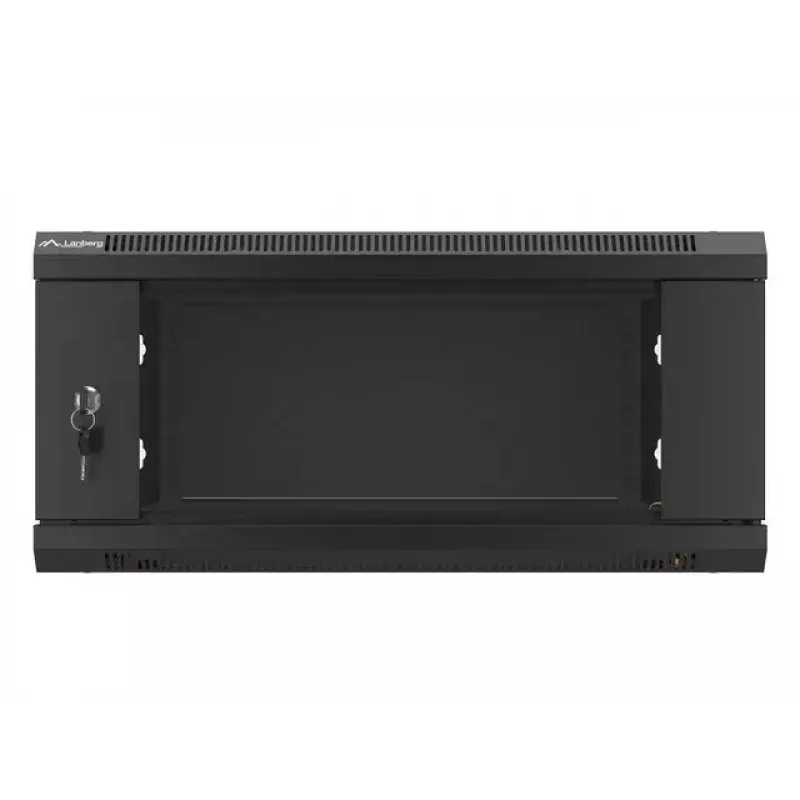

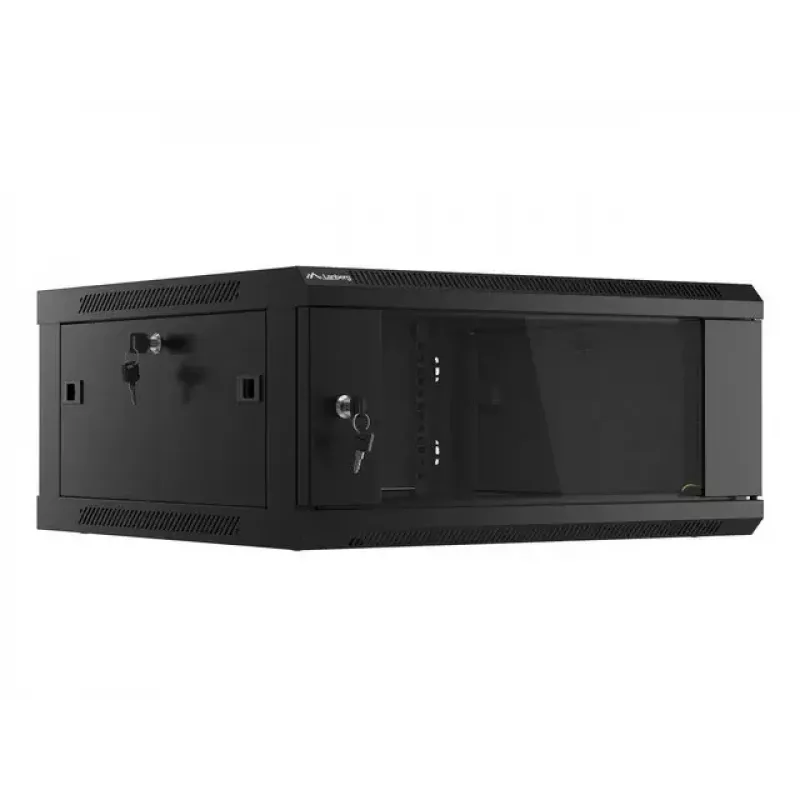

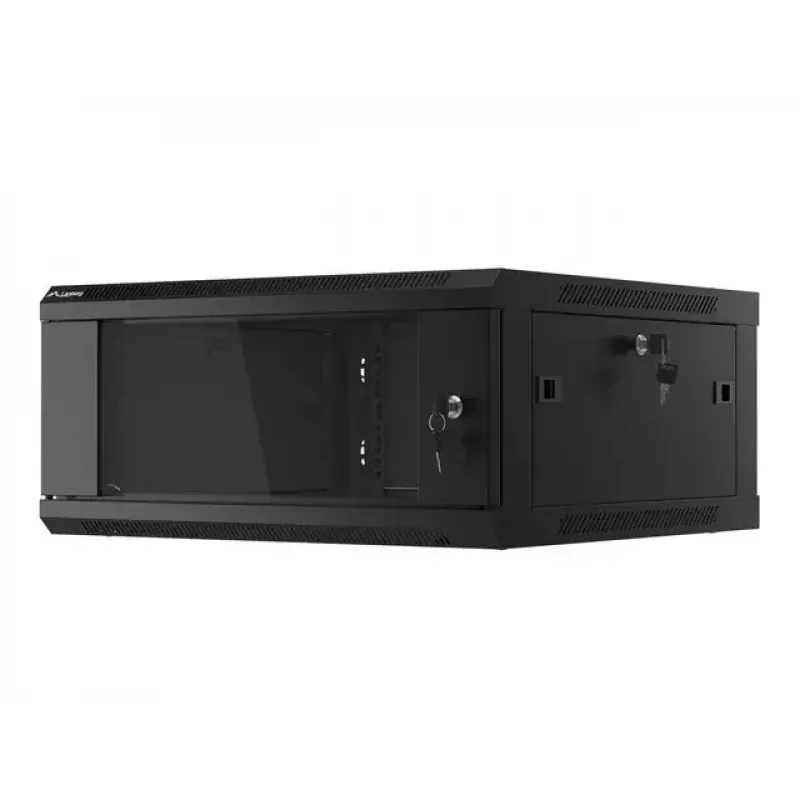

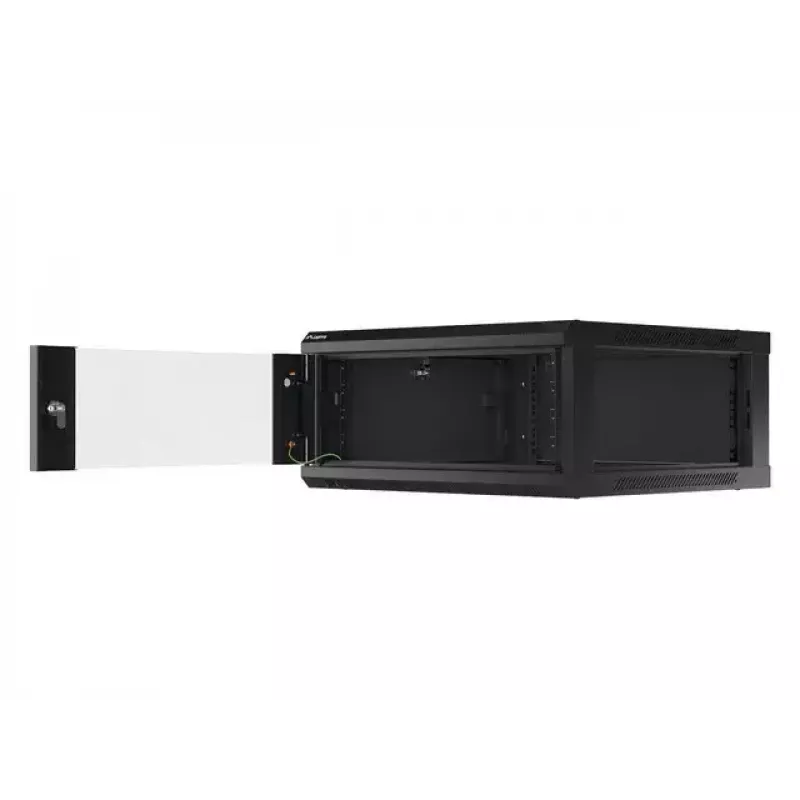

The Lanberg WF01-6604-10B offers a compact 4U 19" layout with a maximum loading capacity of 60 kg and a durable black cold-rolled steel construction. It features a front door that opens up to 180° and locks, removable side panels with locks, and cable entry points on the top and bottom for tidy cabling. The flat-pack design simplifies transport and on-site assembly.

Suitable for

• Rack-mount network switches, patch panels and small servers
• Television distribution, alarm and fire protection systems
• Access control and CCTV / IP surveillance equipment
• Small and medium business network and server rooms

Key specifications

• Rack capacity: 4U (19")
• Maximum loading capacity: 60 kg
• Maximum mounting depth: 529.5 mm
• Dimensions (H×W×D): 290.1 mm × 600 mm × 600 mm
• Weight: 17 kg
• Colour: Black
• Protection rating: IP20
• Material: Cold rolled steel

How to use

Unpack the flat-pack cabinet and assemble the frame following the included instructions. Install the front door and side panels, then mount the cabinet to a suitable wall surface using appropriate fixings (not included) rated for the combined weight of the cabinet and equipment. Fit the 19" rails to the required mounting depth (up to 529.5 mm) and secure devices using M6 cage nuts provided. Route cables through the top and bottom entry panels and close blank panels where needed to maintain airflow and safety.

Recommendations

Mount the cabinet on a load-bearing wall with proper anchors and ensure total equipment weight does not exceed 60 kg. Allow space for ventilation and service access; avoid placing heat-generating devices without adequate airflow. Regularly check locks and mounting hardware for secure installation.
