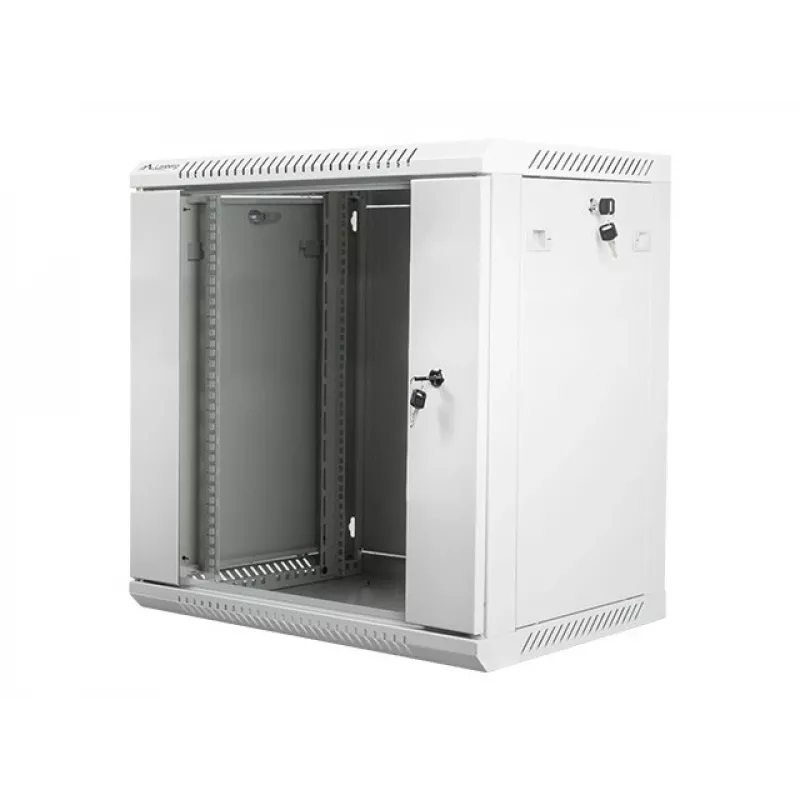

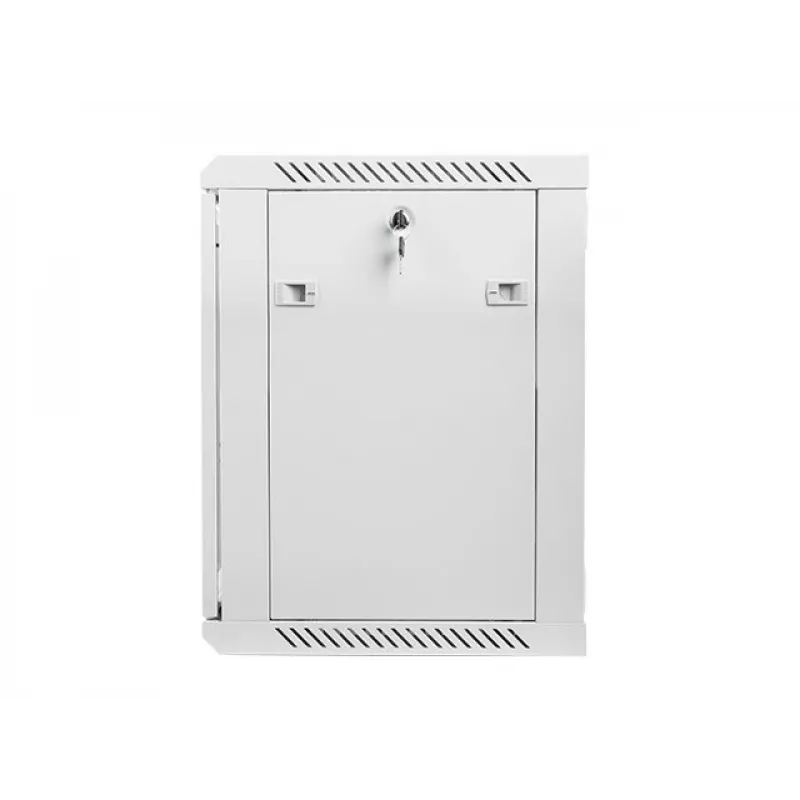

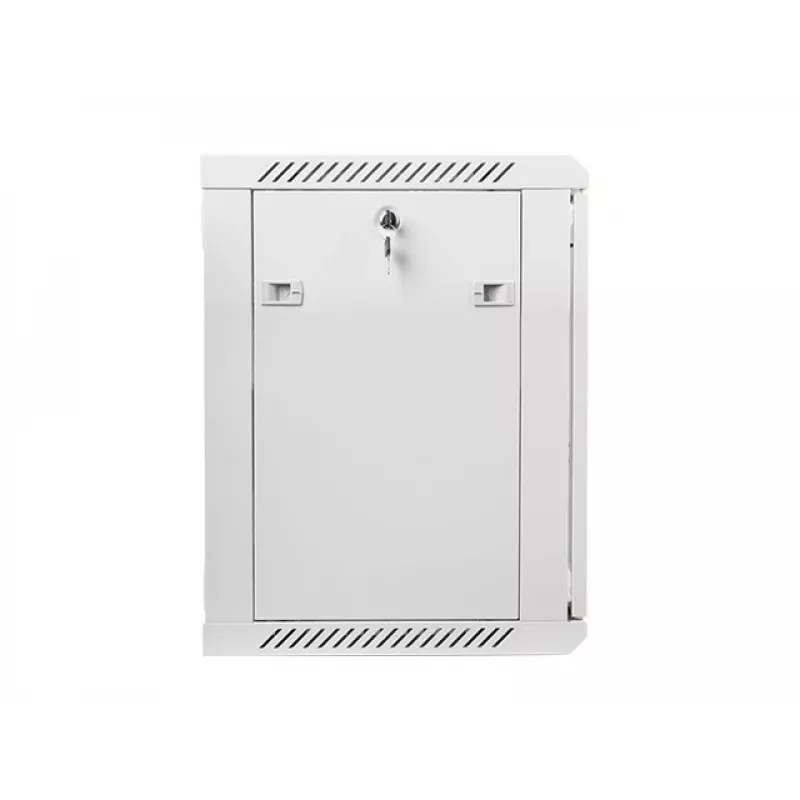

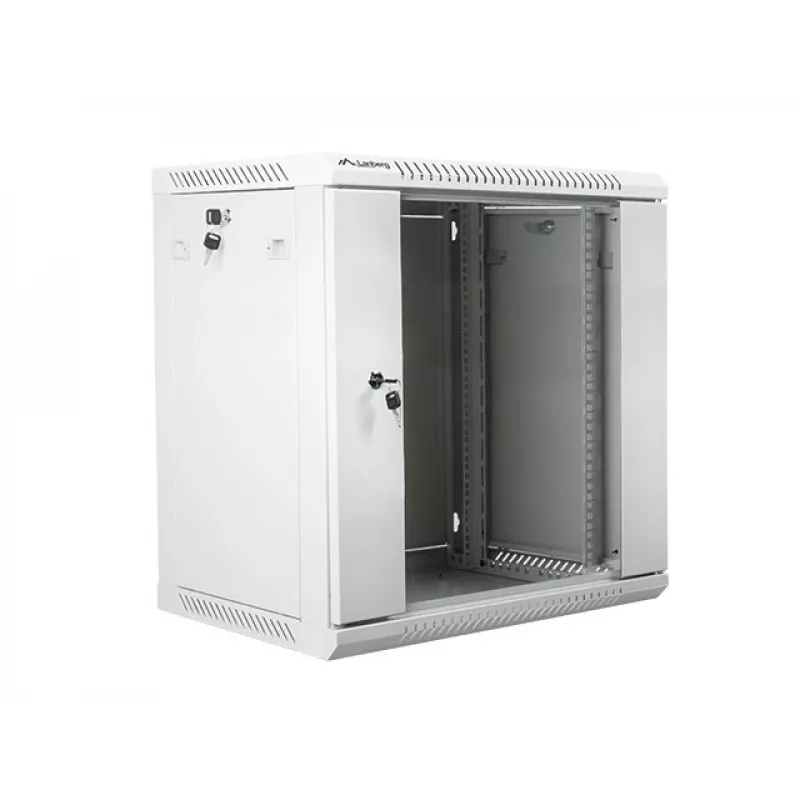

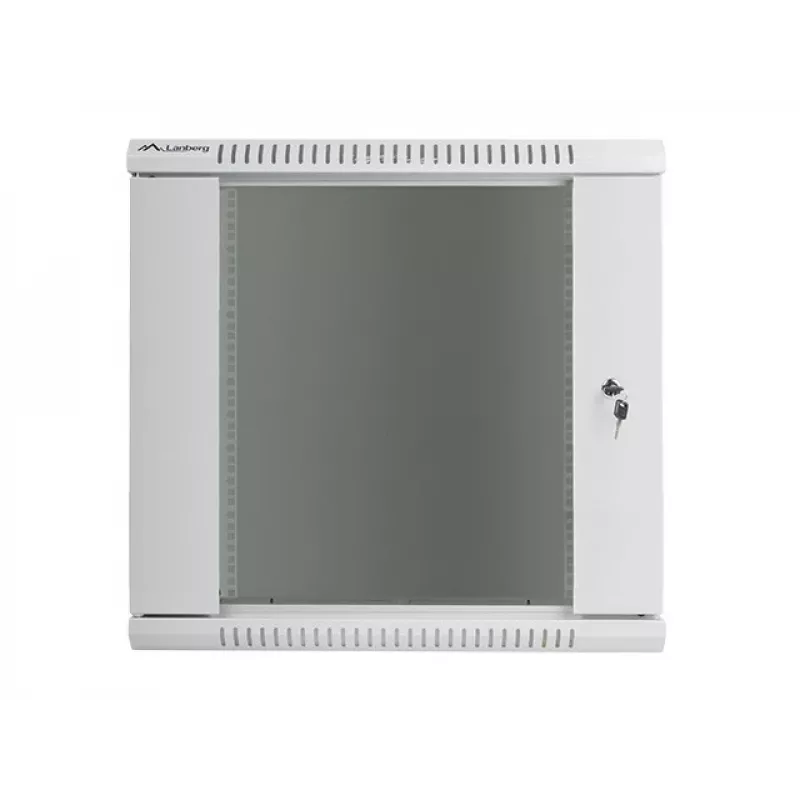

Armario de red de pared LANBERG WF01-6412-10S, 12U, 19", 600×450×640 mm, IP20, 60 kg

The Lanberg WF01-6412-10S is a 12U wall-mounted rack cabinet for 19" equipment, designed to expand networks and house cabling and devices with a maximum load capacity of 60 kg. Constructed from cold-rolled steel with a grey finish and an IP20 protection rating, the cabinet is intended for indoor use in networks, server rooms, small and medium businesses and other low-voltage systems such as CATV, alarm and fire systems, access control, CCTV and IP surveillance. The flat-pack design and removable panels allow simple self-assembly and easier transport.

Advantages

The cabinet supports standard 19" mounting and offers a compact 12U capacity with a loading limit of 60 kg. It features a front door that opens up to 180° and can be locked, removable side panels with included locks, and cable entry panels on both the top and bottom for convenient cable routing. Supplied accessories include rail mounts, M6 cage nuts and blank entry panels, enabling immediate installation of equipment.

Suitable for

• Network switches and patch panels in office or server-room environments
• Small and medium business IT equipment
• CCTV and IP surveillance devices
• Low-voltage systems such as cable TV, alarm and access control

Key specifications

• Rack capacity: 12U
• Supported equipment size: 19"
• Max load capacity: 60 kg
• Dimensions (H×W×D): 640 × 600 × 450 mm
• Weight: 21 kg
• IP rating: IP20
• Colour: Grey
• Mounting depth (max): 1.5 mm

How to use

Assemble the flat-pack cabinet following the included instructions, secure the unit to a suitable wall surface rated to support the cabinet and its intended load, and fit the rail mounts using the supplied M6 cage nuts. Install equipment into the 19" rails, route cables through the top or bottom cable entry panels and lock the front door if required. Remove side panels for access during installation or maintenance.

Recommendations

Install the cabinet indoors in a dry, ventilated space, ensure the mounting surface and fixings are rated for the combined weight of the cabinet and installed equipment, and avoid exceeding the 60 kg load capacity to maintain structural safety and proper ventilation.
