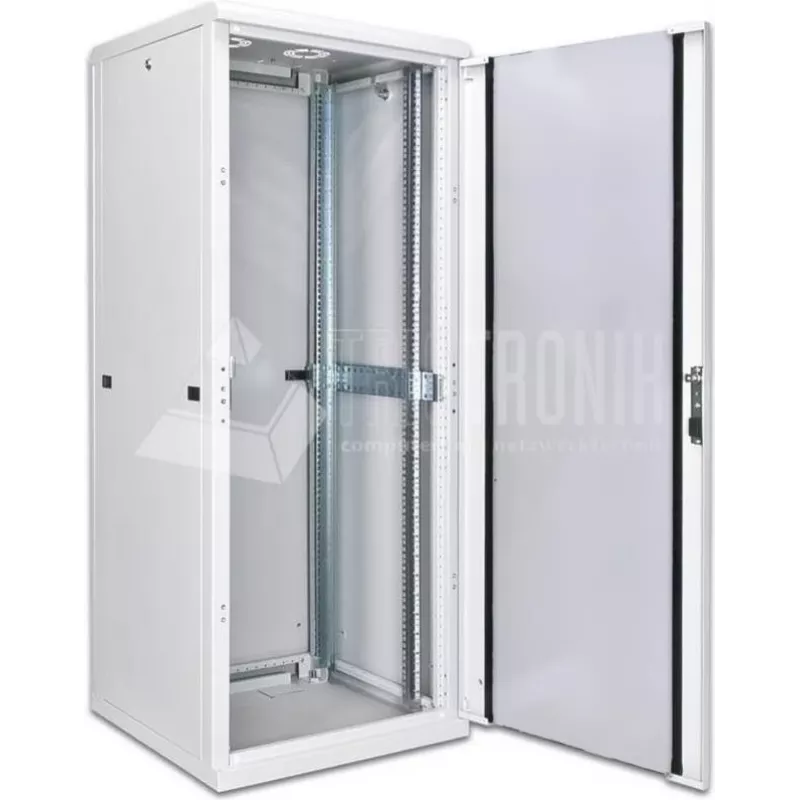

Wirewin CAB 22U Rack autoportante gris (CAB 600X800X22U)

The Wirewin CAB 22U freestanding rack provides a robust 19-inch mounting solution for server and network equipment, with a load capacity of 800 kg. Its grey RAL 7035 finish and lockable tempered glass front door offer both durability and security.

Advantages

The cabinet features removable and lockable side panels, a solid steel rear door with lock, and adjustable mounting rails at the front and rear. Cable entry points at the top and bottom simplify installation, while passive ventilation with provision for a fan unit maintains airflow.

Suitable for

• Server rooms and data centers
• Network infrastructure deployments
• Industrial environments requiring secure equipment housing

Key specifications

• Rack units: 22U
• Mounting standard: 19-inch
• External dimensions: 600 mm width × 800 mm depth × 1166 mm height
• Material: SPCC cold rolled steel
• Load capacity: 800 kg
• Front door: tempered glass with lock
• Rear door: solid steel with lock
• Side panels: removable and lockable
• Cable entry: top and bottom
• Protection rating: IP20
• Included accessories: 4x leveling feet, 4x castors, 2x keys, mounting hardware

Recommendations

Ideal for organizations needing a secure, high-capacity freestanding rack for 19-inch equipment, with flexible cable management and expansion options.
