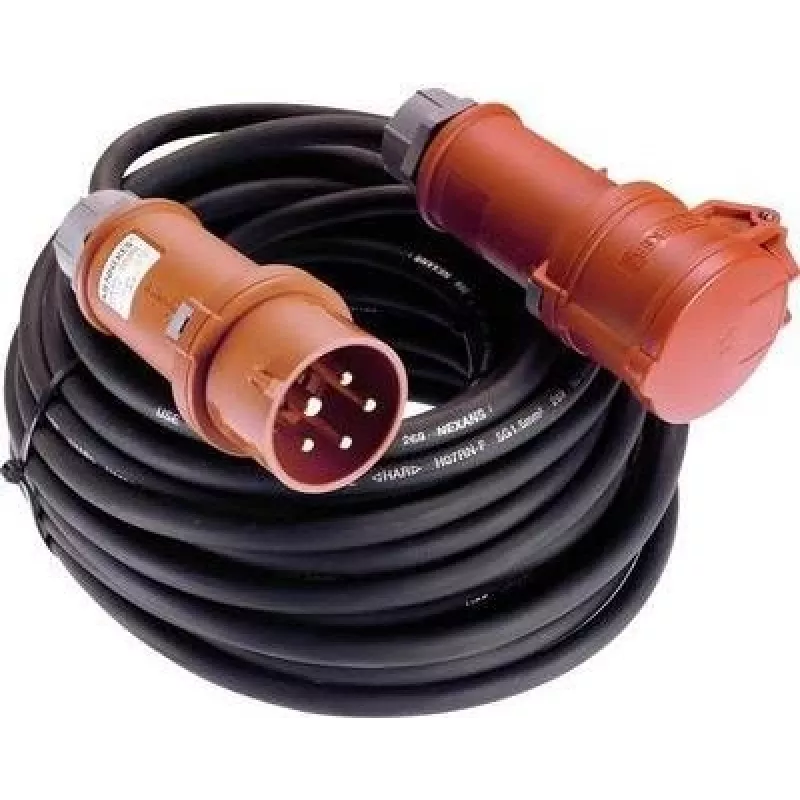

AS Schwabe 25m 16A cable alargador CEE de 5 polos con inversor de fases, 400V, IP44, negro 60548

Unlike standard CEE extension cables that simply pass power through, this AS Schwabe 60548 integrates a phase inverter directly into the connector, letting you correct motor rotation direction on the spot without rewiring. That single feature saves time and prevents equipment damage on construction sites, in event technology, and in industrial maintenance. The 25-metre length gives you freedom to position machinery far from the distribution board, while the rugged H07RN-F rubber sheath shrugs off oil, moisture, and mechanical stress.

Highlights

• Integrated phase inverter (Phasenwender) for instant rotation correction
• Heavy-duty 5-pin CEE plug and coupler rated at 16 A, 400 V
• Extra-long 25 m cable with flexible rubber neoprene sheath (H07RN-F)
• IP44 splash-proof protection for outdoor and damp environments
• VDE-compliant construction with 2.5 mm² conductors for safe full-load operation

In daily use

Connect the CEE plug to your 400 V three-phase supply and the coupler to your machine. If a motor runs backwards, simply operate the phase inverter on the connector body — no need to open plugs or swap wires. The black rubber cable remains flexible even in cold weather down to -30 °C, and the IP44 rating means rain or splashing water won't interrupt your work. At 25 metres, it bridges the gap between generator or distribution box and equipment across large sites, stages, or workshops.

Full specifications

• Brand: AS Schwabe
• Model: 60548
• MPN: 60548
• EAN: 4011160605482
• Product type: Power extension cable
• Connector 1: CEE plug 16 A, 5-pin (3P+N+PE)
• Connector 2: CEE coupler 16 A, 5-pin (3P+N+PE)
• Connector gender: Male (plug) to female (coupler)
• Connector form factor: Straight
• Cable length: 25 m
• Cable type: H07RN-F
• Conductor cross-section: 2.5 mm²
• Number of conductors: 5
• Rated current: 16 A
• Rated voltage: 400 V AC
• Number of phases: 3
• Ingress protection: IP44
• Cable sheath material: Rubber (neoprene)
• Product colour: Black
• Temperature range: -30 °C to +60 °C
• Certification: VDE
• Application: Industrial, construction sites, outdoor, event technology

Final note

The AS Schwabe 60548 is a professional-grade extension that combines robust power delivery with the convenience of a built-in phase inverter — an essential tool for anyone working with three-phase equipment in demanding environments.
