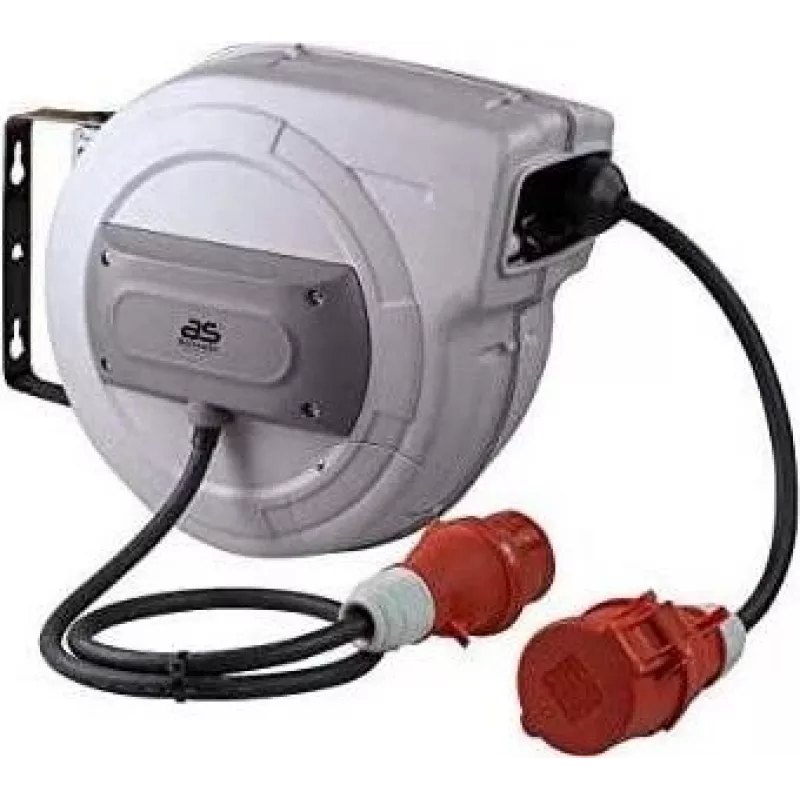

AS SCHWABE enrollador de cable CEE 15m 400V 16A 5 polos H07RN-F 5G2.5 IP44 12649

For demanding three-phase power distribution on construction sites, in agriculture, or industrial workshops, this AS SCHWABE extension cable reel delivers a robust 15-metre reach with full 400V/16A capability. Unlike standard household reels, it uses heavy-duty H07RN-F rubber cable with five 2.5 mm² copper conductors, ensuring reliable operation even under rough handling, moisture, and mechanical stress. The integrated CEE 5-pole plug and socket provide a secure, splash-proof connection for high-power equipment.

Highlights

• 15 m H07RN-F rubber cable, 5G2.5 (5 conductors × 2.5 mm²)
• 400 V AC, 16 A, three-phase (Drehstrom) power transmission
• CEE 5-pole plug and socket, IP44 splash-proof
• Robust reel with comfortable carrying handle for easy transport and tidy storage
• Operating temperature range -25 °C to +60 °C
• Complies with DIN VDE 0282-4

In daily use

The reel's sturdy frame protects the cable from kinks and tangles, while the ergonomic handle allows quick relocation between work areas. The red CEE connectors are colour-coded for 400V three-phase systems, preventing accidental mismatching with lower-voltage equipment. The rubber sheath remains flexible even in cold conditions, and the IP44 rating means splashing water from any direction won't interrupt your workflow.

Full specifications

• Cable type: H07RN-F (heavy rubber, oil-resistant)
• Conductor configuration: 5G2.5 (5 conductors, 2.5 mm² cross-section each)
• Cable length: 15 m
• Nominal voltage: 400 V AC
• Nominal current: 16 A
• Plug type: CEE 400V, 16A, 5-pole (male)
• Socket type: CEE 400V, 16A, 5-pole (female)
• Protection class: IP44 (splash-proof)
• Cable sheath material: Rubber (RN)
• Conductor material: Copper
• Insulation material: Rubber
• Application area: Construction sites, industry, agriculture, outdoor use
• Operating temperature range: -25 °C to +60 °C
• Phase: 3-phase (Drehstrom)
• Colour: Black cable, red connectors
• Standard compliance: DIN VDE 0282-4

Final note

When your equipment demands full three-phase power over distance, this AS SCHWABE reel is a dependable, safety-oriented choice. Its rugged construction and compliance with German VDE standards give you confidence in every connection.
