Aspersor de impulso Gardena 8138-20 Aspersor de impulso Gris Naranja

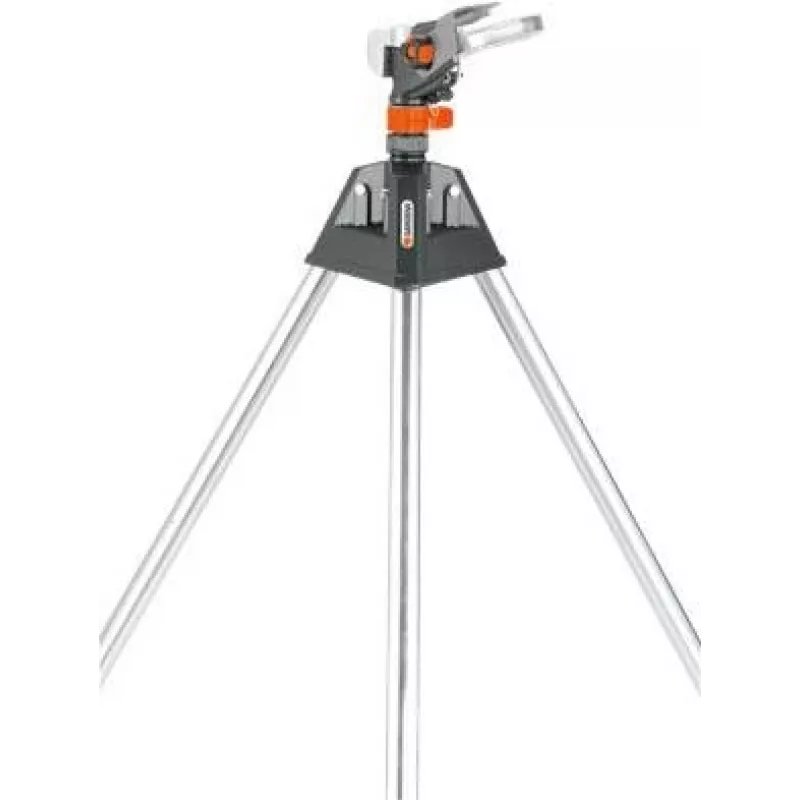

The Gardena 8138-20 Pulse Water Sprinkler with folding tripod is a stable solution for irrigating taller plants and medium to large garden areas. When set up, the tripod reaches approximately 100 cm in height. The sprinkler head is mounted on a G 1/2 (21 mm) thread and combines metal and plastic components for increased robustness. Adjustable rings show the selected sector and allow fine control of the spray from 25° to 360°. A high-precision brass nozzle ensures even water distribution, and a large rotary knob adjusts the range.

Advantages

The metal‑and‑plastic sprinkler head provides durability while keeping weight manageable. Visible adjustment rings enable quick and accurate sector setting. The brass nozzle improves distribution precision, and the rotary range control lets you set distances from 5 m up to 12.5 m. The folding tripod offers stable support at an operational height of about 100 cm.

Suitable for

• Watering taller plants and shrubs
• Irrigating medium to large lawns and garden beds (75–490 m²)
• Even distribution over adjustable sectors from 25° to 360°
• Temporary or seasonal garden irrigation with easy setup

Key specifications

• Brand: GARDENA
• Model / MPN: 8138-20
• EAN: 4078500813808
• Height (tripod, set up): approx. 100 cm
• Connection thread: G 1/2 (21 mm)
• Spray angle adjustable: 25°–360°
• Range adjustable: 5 m – 12.5 m
• Coverage area: approx. 75 m² – 490 m²
• Nozzle material: brass (high‑precision)

How to use

Mount the sprinkler head onto the tripod and secure it to a water supply via the G 1/2 connection. Open the water supply and use the adjustment rings to set the desired spray sector between 25° and 360°. Turn the large rotary knob to set the watering range from 5 m to 12.5 m according to the area to be irrigated. Position the tripod on level ground for stable operation and fold the tripod for storage when not in use.

Recommendations

For uniform coverage, start with a moderate range and adjust incrementally while observing the wetting pattern. Use on stable, level surfaces and avoid high wind conditions to maintain accurate distribution. Regularly check and clean the brass nozzle to prevent clogging.
