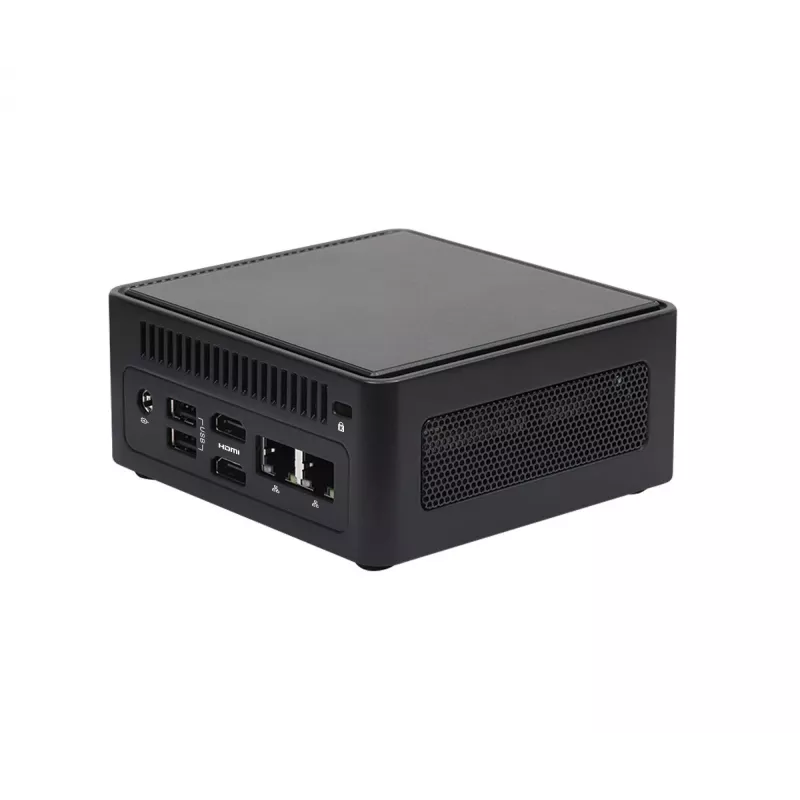

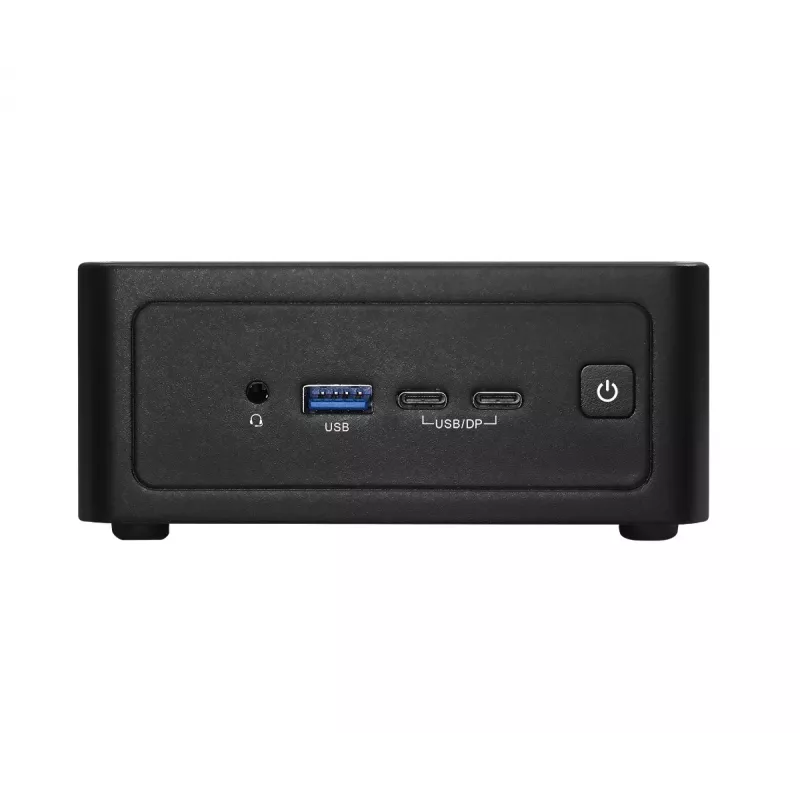

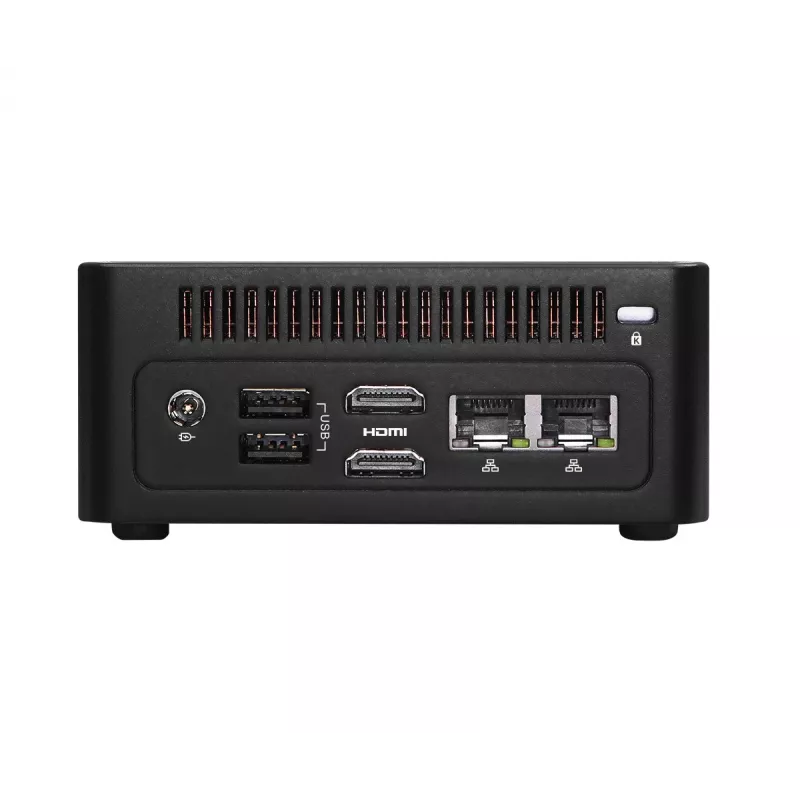

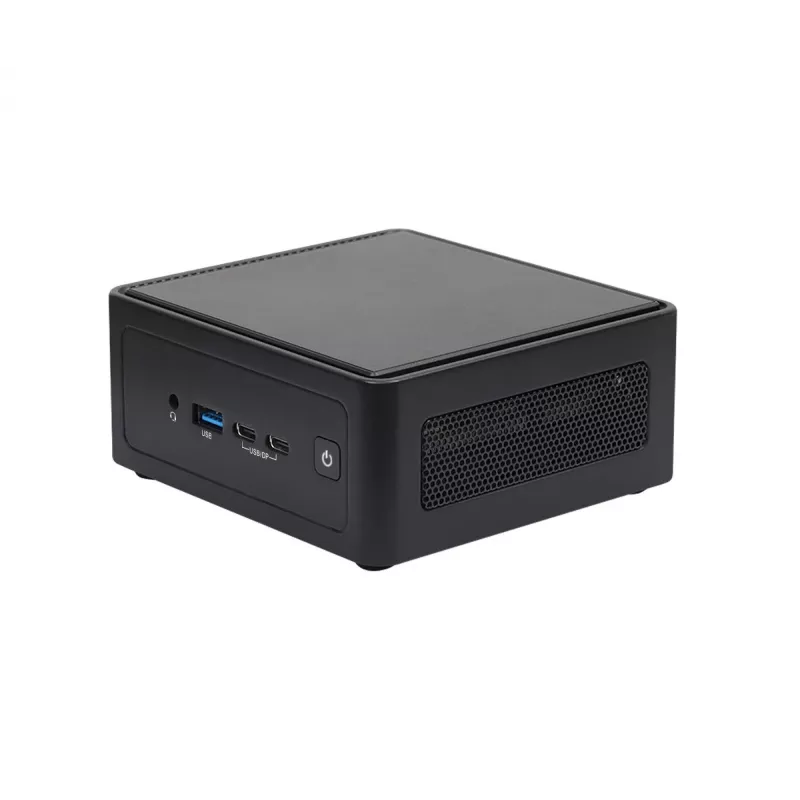

ASRock 4X4 BOX-8840U SFF negro Socket FP7 3,3 GHz

The ASRock 4X4 BOX-8840U is a compact and powerful mini PC designed for versatile computing needs. Featuring an AMD Ryzen 7 8840U processor with 8 cores and 16 threads, base clock of 3.3 GHz and boost up to 5.1 GHz, this system delivers exceptional performance for office productivity, multimedia, and light creative tasks. Its small form factor (SFF) makes it ideal for space-constrained environments.

Advantages

High-performance AMD Ryzen 7 processor with integrated Radeon 780M graphics, dual-channel DDR5 memory support, multiple display outputs (HDMI, DisplayPort, USB-C), and extensive connectivity including USB 3.2 Gen2, 2.5G LAN, and Wi-Fi 6E. Quiet operation and low power consumption.

Suitable for

• Home and office computing
• Digital signage and kiosks
• Thin client and edge computing
• Media center and HTPC

Key specifications

• Processor: AMD Ryzen 7 8840U (8 cores, 16 threads, 3.3 GHz base, 5.1 GHz boost)
• Graphics: Integrated AMD Radeon 780M
• Memory: 2x DDR5 SO-DIMM slots, up to 64GB
• Storage: 1x M.2 NVMe PCIe 4.0 x4, 1x SATA 2.5-inch
• Networking: 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
• Video Output: 2x HDMI 2.1, 1x DisplayPort 1.4, 1x USB-C (DP Alt Mode)
• USB Ports: 3x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C, 2x USB 2.0
• Audio: Realtek ALC897, 3.5mm headphone/mic combo
• Power: 19V DC input, 90W power adapter
• Dimensions: 110 x 118.5 x 56.2 mm (WxDxH)
• Weight: 0.8 kg (barebone)
• Operating System: Supports Windows 11, Windows 10, Linux

Recommendations

For optimal performance, pair with DDR5-5600 memory and a fast NVMe SSD. Suitable for 24/7 operation in commercial environments.
