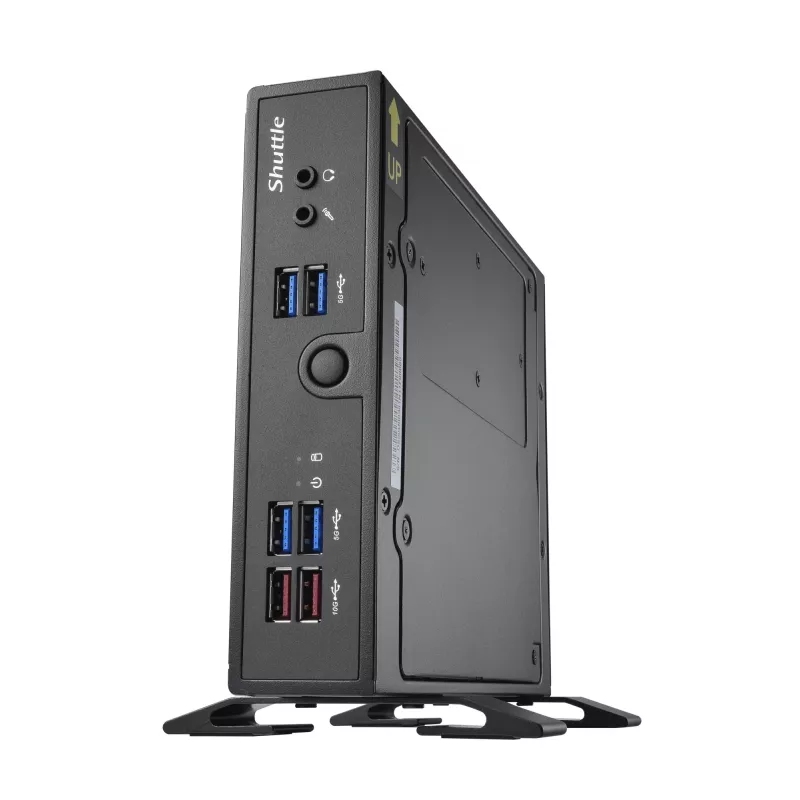

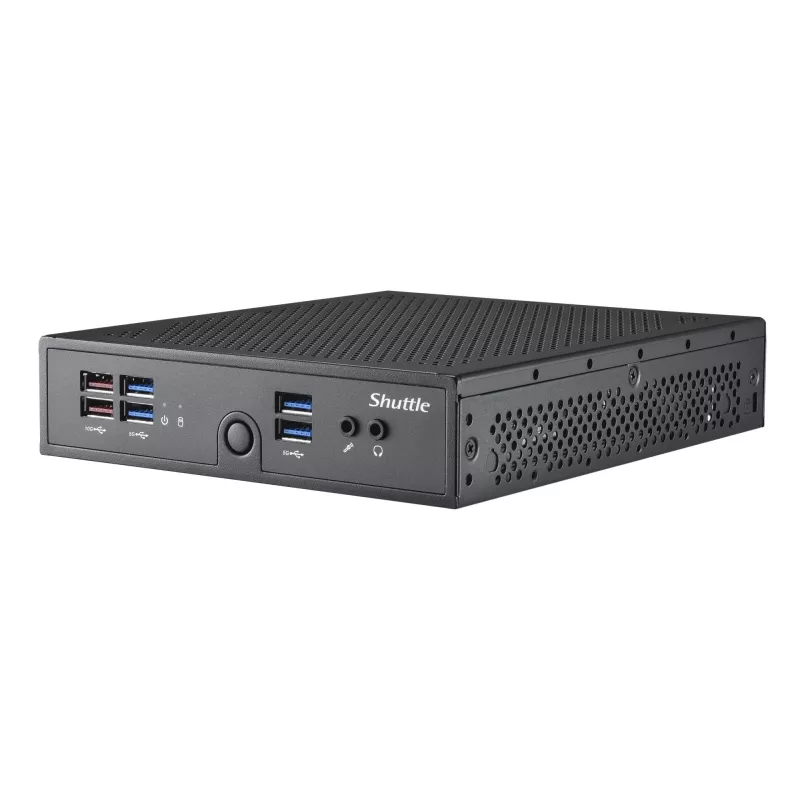

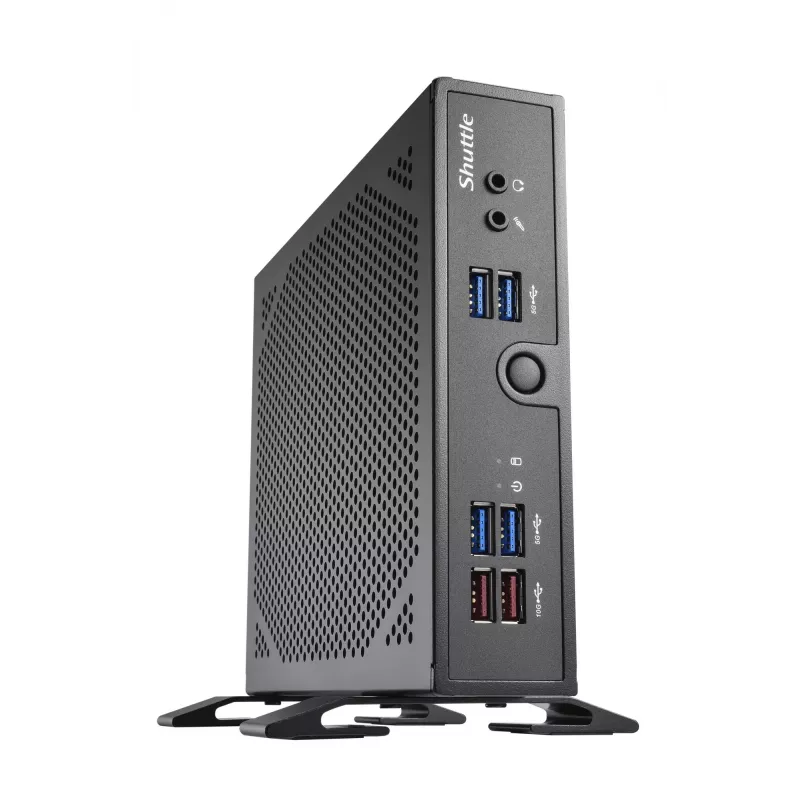

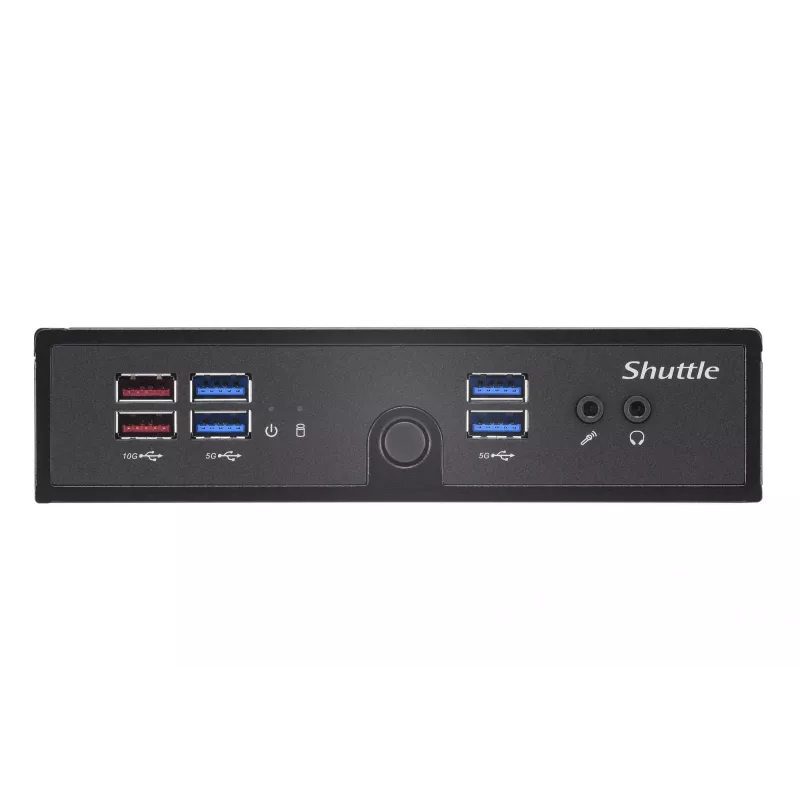

Mini PC Barebone Shuttle XPC slim DS50U3 Intel i3-1315U 64 GB RAM HDD SSD HDMI DP VGA

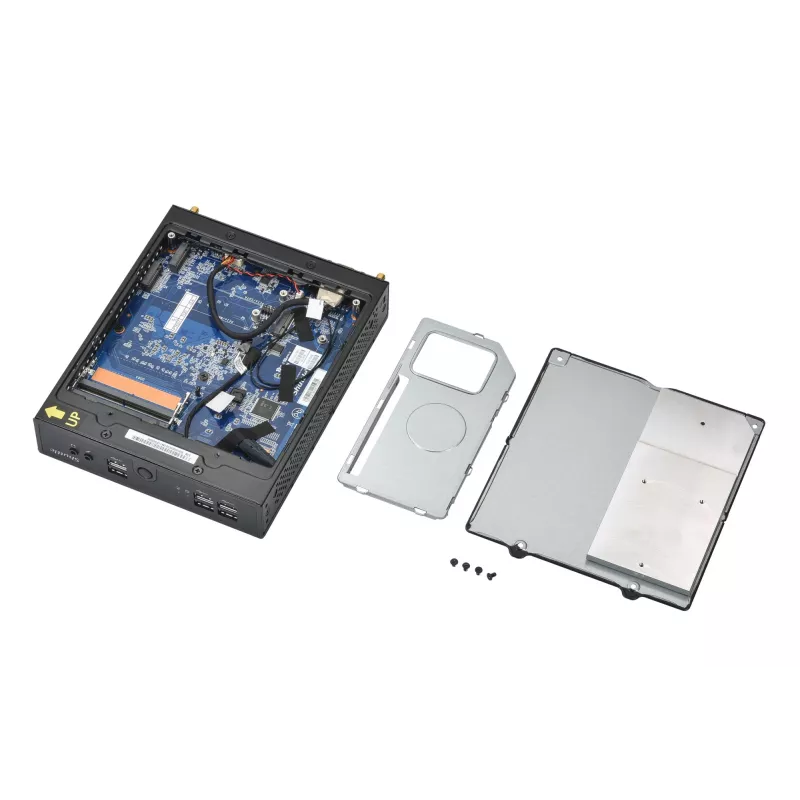

The Shuttle XPC slim DS50U3 is a fanless mini PC barebone in a 1.3-litre metal chassis, equipped with an integrated Intel i3-1315U (12th/13th gen architecture) ULV processor. The compact system supports UHD/4K output and offers three video connectors (HDMI, DisplayPort and D-Sub/VGA). Inside there is space for two DDR5 SO-DIMM modules, one 2.5" drive and two M.2-2280 SSDs, while an optional WWN04 accessory enables fitting an LTE/5G modem in the second M.2 slot. The passive cooling design allows silent, low-maintenance operation and suitability for continuous 24/7 use.

Advantages

The DS50U3 combines a small footprint and robust metal housing with support for up to 64 GB DDR5 memory and modern storage options (2.5" and M.2). Multiple video outputs enable simultaneous connection of UHD/4K displays plus legacy VGA screens. Dual LAN interfaces (1x 2.5Gbit and 1x 1Gbit) and an optional cellular module expand networking flexibility. Fanless passive cooling reduces noise and maintenance and ensures energy-efficient, continuous operation.

Suitable for

• Digital signage and video walls
• Point-of-sale (POS) and kiosk systems
• Thin client and office PCs
• Multimedia playback and content distribution
• Industrial or embedded applications requiring reliable 24/7 operation

Key specifications

• Processor: Intel i3-1315U (ULV)
• Maximum memory: up to 64 GB DDR5 (two SO-DIMM slots)
• Storage: 1× 2.5" drive bay and 2× M.2-2280 SSD slots

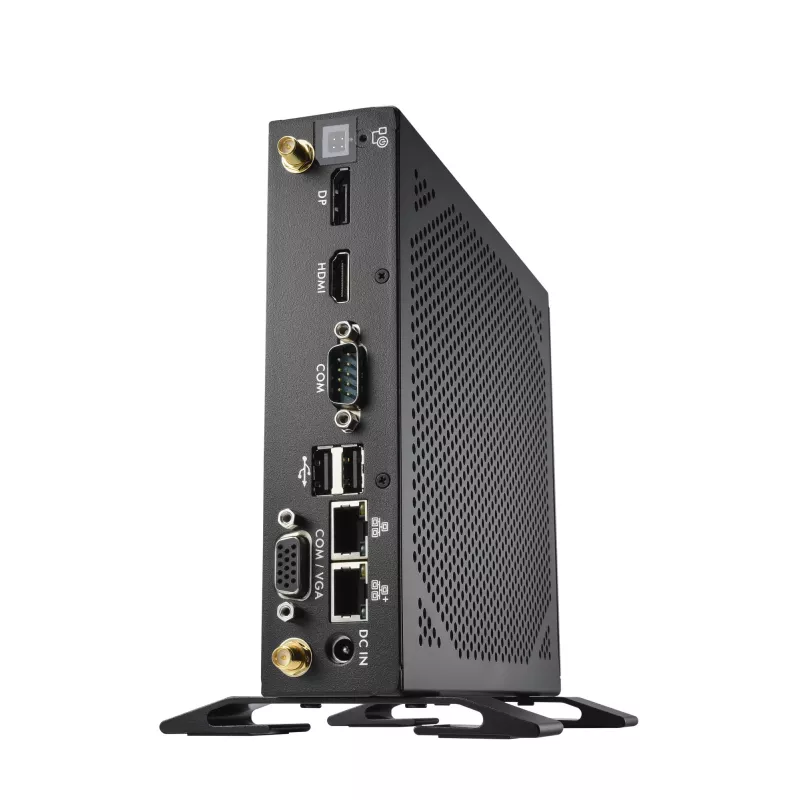

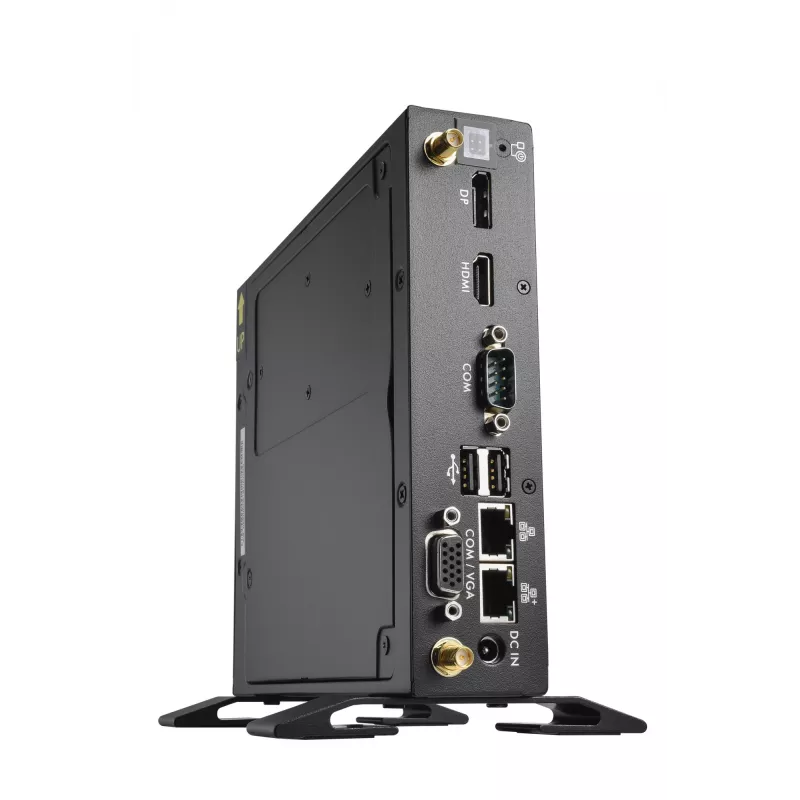

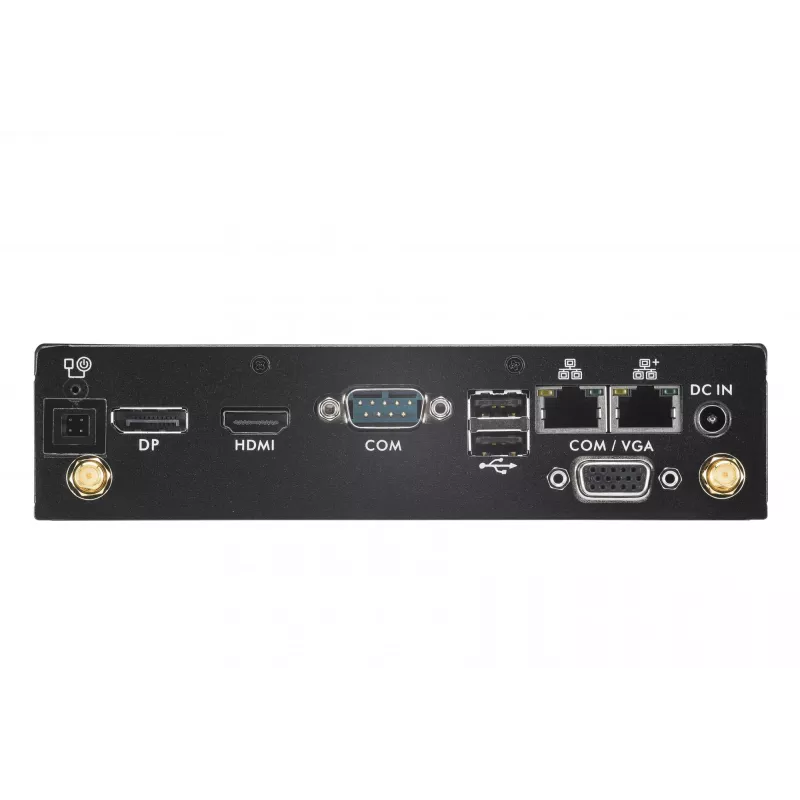

• Video outputs: HDMI, DisplayPort, D-Sub (VGA)
• Networking: 1× 2.5Gbit LAN, 1× 1Gbit LAN; optional 4G/5G via WWN04 accessory
• Cooling: fanless (passive)
• Chassis volume/weight: 1.3 L metal chassis / approx. 1.6 kg
• Operating system: not preinstalled

How to use

Install DDR5 SO-DIMM modules and required storage devices (2.5" drive and/or M.2 SSDs) before powering on. Connect displays using HDMI, DisplayPort or VGA depending on your setup and attach network cables to the 2.5G or 1G LAN ports as needed. If mobile connectivity is required, fit a compatible 4G/5G module in the second M.2 slot using the WWN04 accessory. Install your preferred operating system and drivers, then configure display and network settings for your application.

Recommendations

Use the DS50U3 in well-ventilated locations free from excessive dust and moisture. Ensure proper mounting and secure storage devices and memory modules to avoid vibration-related issues. For 24/7 mission-critical deployments, verify OS and driver compatibility and implement regular remote monitoring and backup procedures.
