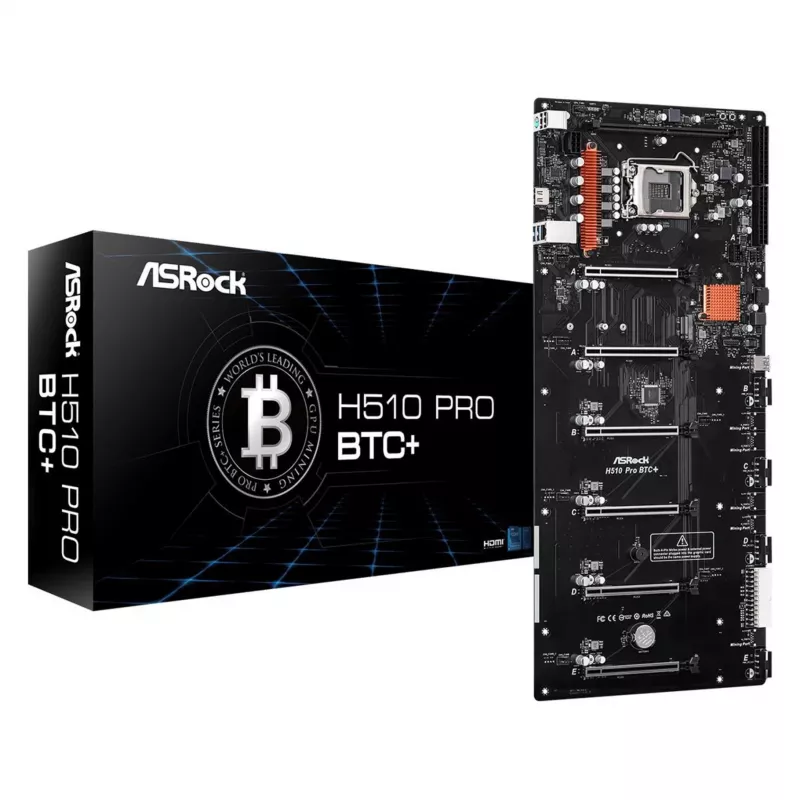

ASRock H510 Pro BTC+ Placa base - LGA1200 - Chipset Intel H510 - USB 3.2 Gen 1 - Gigabit LAN - Gráficos integrados (se requiere CPU)

The ASRock H510 Pro BTC+ is a specialized ATX motherboard designed for cryptocurrency mining, supporting 10th and 11th Gen Intel Core processors (LGA1200). It features the Intel H510 chipset and offers extensive expansion with 12 PCIe 2.0 x1 slots for GPU connectivity, making it an ideal choice for building efficient mining rigs.

Advantages

Optimized for mining with 12 PCIe x1 slots, the H510 Pro BTC+ provides maximum GPU density. It includes ASRock Full Spike Protection for enhanced durability and stability under continuous load. The board supports dual-channel DDR4 memory up to 64GB and offers Gigabit LAN for reliable network connectivity.

Suitable for

• Cryptocurrency mining rigs
• Multi-GPU computing setups
• Budget-friendly workstation builds requiring multiple expansion slots

Key specifications

• CPU Socket: LGA1200
• Chipset: Intel H510
• Form Factor: ATX
• Memory: 2 x DDR4 DIMM slots, up to 64GB, Dual Channel, Non-ECC
• PCIe Slots: 1 x PCIe 4.0/3.0 x16, 12 x PCIe 2.0 x1
• Storage: 4 x SATA 6Gb/s, 1 x M.2 (Key M, PCIe Gen3 x4 & SATA3)
• LAN: Intel I219V Gigabit Ethernet
• Audio: Realtek ALC897 7.1 CH HD Audio
• Rear I/O: 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x HDMI, 1 x D-Sub (VGA)
• Power: 24-pin ATX, 8-pin 12V, 2 x 4-pin Molex (for PCIe)

Recommendations

For optimal mining performance, pair this motherboard with a compatible Intel 10th or 11th Gen CPU and multiple GPUs. Ensure adequate power supply and cooling for stable operation.
