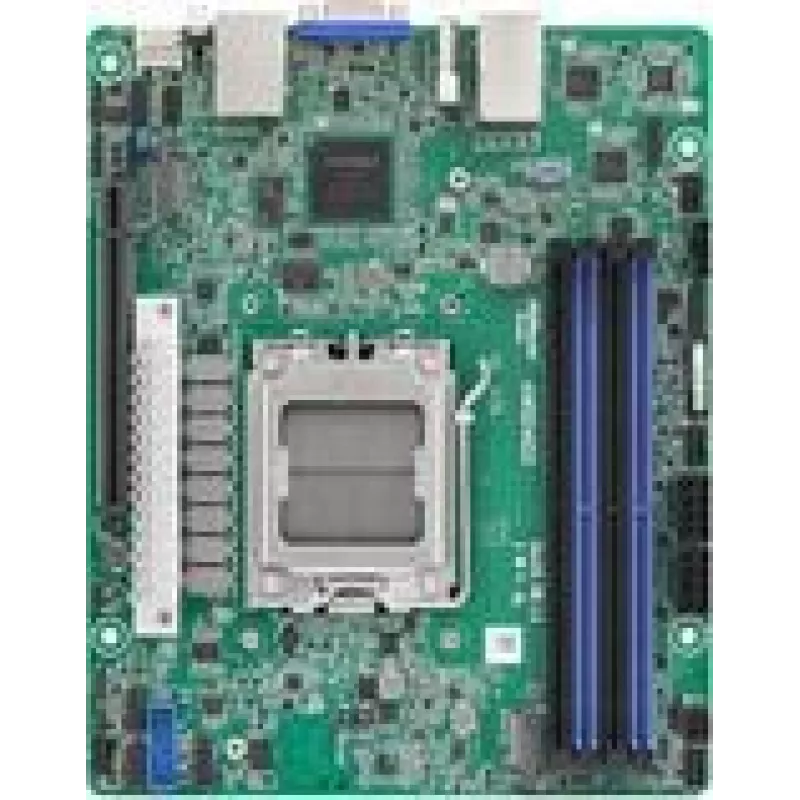

Placa base ASRock AM5D4ID2, chipset AMD AM5, Mini-ITX

The ASRock AM5D4ID2 is a Mini-ITX motherboard engineered for AMD Ryzen Zen4 processors using the AM5 socket and chipset. It delivers support for DDR5 memory and PCIe 5.0 connectivity in a compact 170 x 170 mm form factor, making it suitable for small form factor builds that require current-generation performance. Integrated display output and multiple USB 3.2 ports provide straightforward connectivity for peripherals, while the board layout is optimized for efficient cooling and space-constrained cases.

Advantages

This Mini-ITX motherboard combines modern platform features with a compact footprint, offering DDR5 memory support and PCIe 5.0 lanes for next-generation expansion. The AM5 chipset ensures compatibility with Zen4 processors and updates to platform I/O. Integrated video output and a selection of high-speed USB ports simplify system setup and peripheral connection without requiring additional cards. The board’s small size facilitates compact builds while preserving essential connectivity and performance characteristics.

Suitable for

• Compact gaming desktops that use AMD Ryzen Zen4 processors
• Home theater PCs and small media centers requiring HDMI output
• Workstations for content creation where desk space is limited
• Small form factor builds focused on high memory and PCIe bandwidth

Key specifications

• Form factor: Mini-ITX (approximately 170 x 170 mm)
• CPU socket and chipset: AM5 socket with AM5 chipset compatible with AMD Ryzen Zen4 processors
• Memory: DDR5 support, dual-channel configuration (exact supported speeds depend on CPU and memory modules)
• Expansion: PCIe 5.0 lane support for next-gen graphics or NVMe add-in cards (slot configuration depends on board layout)
• Storage interfaces: M.2 slot(s) and SATA ports for SSD/HDD connectivity (quantity and types depend on model layout)
• Rear I/O: HDMI display output and multiple USB 3.2 ports for high-speed peripheral connections
• Cooling and power: Compact power delivery and cooling layout suitable for small chassis installations

How to use

Install the motherboard into a compatible Mini-ITX case following the case manufacturer’s standoff pattern, then secure the AM5-compatible CPU and apply thermal solution per CPU vendor instructions. Fit DDR5 memory modules into the DIMM slots, connect power from a compatible power supply unit, and install storage devices in the M.2 slot(s) or SATA bays. Connect display, keyboard, mouse and other peripherals to the rear I/O. Configure firmware/UEFI settings on first boot to verify memory frequency, storage recognition and boot order before installing an operating system.

Recommendations

Use DDR5 memory modules listed on the motherboard’s qualified vendor list to ensure stability at intended frequencies, and choose a compact CPU cooler compatible with the Mini-ITX layout to maintain proper thermal performance. Ensure your power supply provides the required connectors and adequate wattage for your chosen CPU and discrete graphics card if installed.
