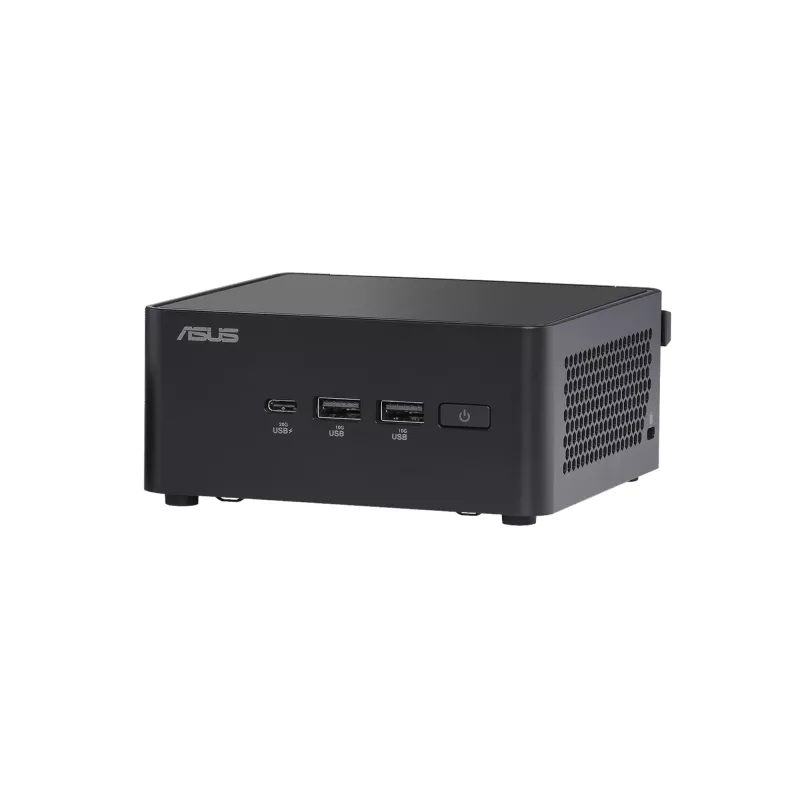

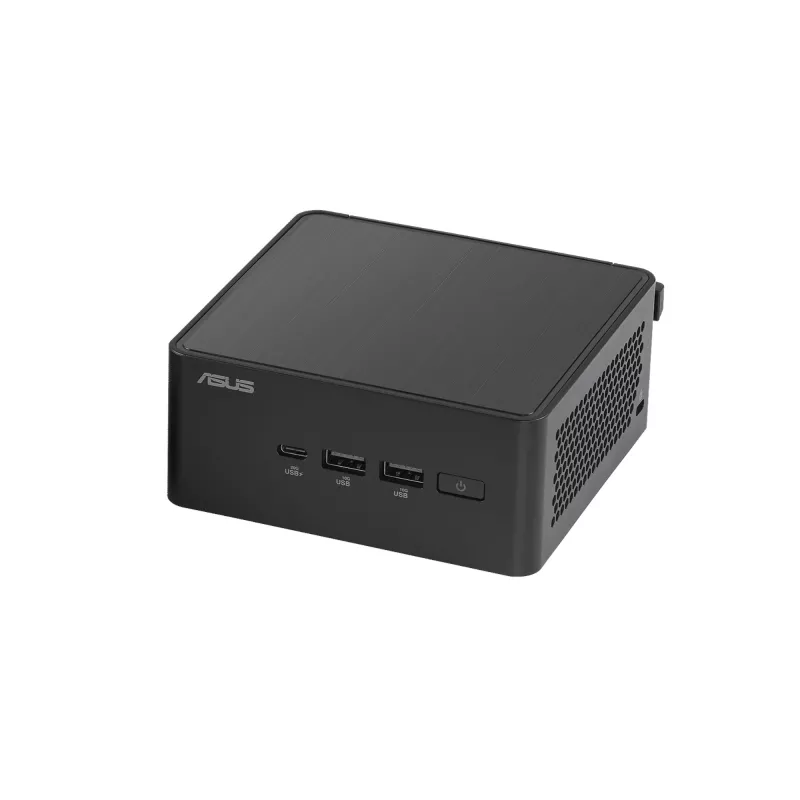

ASUS NUC 14 Pro RNUC14RVHV700003I UCFF Negro 165H

The ASUS NUC 14 Pro RNUC14RVHV700003I is a compact UCFF mini PC barebone designed to deliver high performance in a small footprint. Developed by ASUS in collaboration with Intel, this model supports DDR5 memory up to 96 GB, multiple storage options via PCIe and SATA III for SSDs, Wi-Fi 6E, Bluetooth 5.3 and a single Ethernet LAN port. It features an active cooling system and a 120 W power supply, and its toolless chassis design simplifies access for upgrades and maintenance.

Advantages

This mini PC combines a small form factor with support for modern components and interfaces: high-speed DDR5 memory, flexible SSD storage using PCIe and SATA III, and current wireless connectivity standards including Wi-Fi 6E and Bluetooth 5.3. The toolless design enables easy access to the M.2 PCIe SSD bay for upgrades, while a certified dongle-free Bluetooth implementation reduces compatibility and port-availability issues.

Suitable for

• Office productivity and unified communications
• Small business and retail point-of-sale systems
• Light development and testing tasks
• Home media center and casual home use
• Vertical industry deployments requiring compact, reliable PCs

Key specifications

• Form factor: UCFF mini PC barebone
• Memory support: DDR5, up to 96 GB
• Storage interfaces: PCI Express and SATA III (SSD support)
• Networking: Wi-Fi 6E, Bluetooth 5.3, 1× Ethernet LAN
• Cooling: active cooling system
• Power supply: 120 W
• Brand / MPN / EAN: ASUS / 90AR0072-M00290 / 4711387492093

How to use

Install compatible DDR5 SO-DIMM modules and required M.2 or SATA SSDs according to manufacturer specifications. Open the chassis using the toolless access to reach the M.2 PCIe slot for upgrades or replacements. Connect the unit to a display, network (Wi-Fi 6E or Ethernet) and peripherals; the certified Bluetooth 5.3 operates without an external dongle. Ensure adequate ventilation for the active cooling system and use the supplied 120 W power adapter.

Recommendations

For reliable operation, keep firmware and drivers up to date, install memory and storage components that meet the specified DDR5 and interface standards, and allow sufficient airflow around the chassis. For deployment in business environments, verify network and peripheral compatibility and follow IT policies for image and security management.
