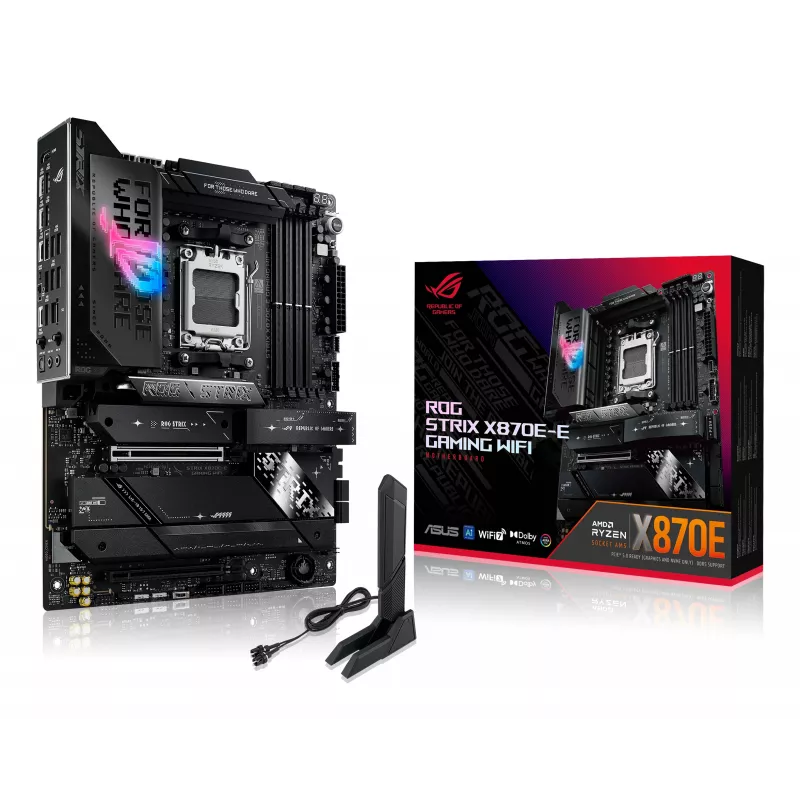

ASUS ROG STRIX X870E-E GAMING WIFI Placa base Socket AM5

For enthusiasts building a high-end AMD Ryzen 7000 or 8000 series system, the ASUS ROG STRIX X870E-E GAMING WIFI delivers flagship performance and connectivity. Its ATX form factor fits standard cases, while the AMD X870E chipset unlocks PCIe 5.0 for graphics and storage, DDR5 memory overclocking up to 8000+ MT/s, and robust power delivery for demanding workloads.

Key specifications

• Chipset: AMD X870E
• Socket: AM5 (supports Ryzen 7000 and 8000 series)
• Memory: 4x DDR5 DIMM, max 192GB, up to 8000+ MHz (OC)
• Expansion: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0), 4x SATA 6Gb/s
• Networking: Intel 2.5Gb Ethernet, Wi-Fi 7 (802.11be), Bluetooth 5.4
• Audio: ROG SupremeFX ALC4080 codec
• Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1 Type-A, 4x USB 2.0
• Video outputs: HDMI 2.1, DisplayPort 1.4
• RGB: Aura Sync RGB lighting
• Special features: PCIe Slot Q-Release, M.2 Q-Latch

Why choose it

This board combines cutting-edge PCIe 5.0 support for next-gen GPUs and SSDs with premium audio and networking. The 18+2+2 power stage design ensures stable overclocking, while Q-Release and Q-Latch simplify upgrades. Wi-Fi 7 and 2.5Gb Ethernet provide ultra-fast, low-latency connectivity for gaming and content creation.

Ideal use cases

• High-performance gaming rigs with Ryzen 7000/8000 CPUs
• Content creation workstations requiring fast storage and memory
• Enthusiast builds with custom water cooling and RGB lighting
• Future-proof systems ready for PCIe 5.0 devices

Good to know

Supports DDR5 memory up to 192GB across four DIMM slots. The M.2 slots include heatsinks for sustained performance. Aura Sync allows synchronization with compatible RGB components. The board includes a robust VRM heatsink and multiple fan headers for optimal thermal management.
