ATEN Cable KVM VGA USB a DVI 3m Negro, Azul, Verde, Rosa

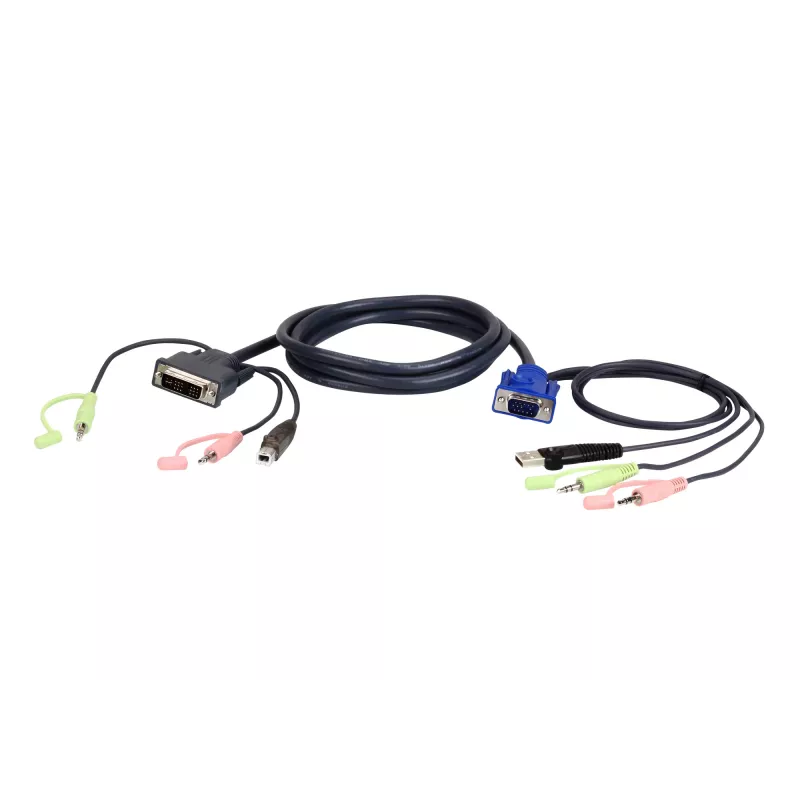

The ATEN VGA USB to DVI KVM cable (model 2L-7DX3U) is a 3 m cable designed to connect a PC with VGA, USB and audio outputs to a KVM console with a DVI-I (Single Link), USB and audio interface. It provides combined video and USB keyboard/mouse connections in a single cable to simplify setup when switching control between multiple computers.

Advantages

This cable integrates VGA video, USB keyboard/mouse and audio connections into one 3‑metre assembly, reducing cable clutter and simplifying KVM installations. The DVI-I console connector supports single‑link DVI video, while the USB interfaces carry keyboard/mouse signals. Its straightforward plug‑and‑play design requires no additional drivers.

Suitable for

• Connecting a VGA-equipped computer to a DVI-I KVM console
• Small server rooms and desktop workstations that require KVM switching
• Environments where a single cable solution for video, USB and audio is preferred

Key specifications

• Model: 2L-7DX3U
• Length: 3 m
• PC connector: VGA, USB and Audio
• Console connector: DVI-I (Single Link), USB and Audio
• Keyboard port type: USB
• Product colour: Black, Blue, Green, Pink
• Brand: ATEN
• EAN: 4719264645068

How to use

Connect the VGA, USB and audio plugs to the corresponding ports on the computer. Plug the DVI-I, USB and audio connectors into the KVM console. After both ends are connected, select the target computer on the KVM switch; the keyboard, mouse and video signals will be relayed through the cable. No special software is required for basic keyboard and mouse operation.

Recommendations

For optimal signal quality, keep the 3 m cable length as straight as practical and avoid running it parallel to high‑voltage power lines. Use the cable in indoor, dry environments and ensure connectors are fully seated to prevent intermittent connections.
